Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WELFNOBL
-
Model Number:
-
PS16B-PNOF
-
Products Name:
-
Piezo Switch
-
Housing Material:
-
Stainless Steel
-
Mounting hole diameter:
-
16mm
-
Head type:
-
Flat head
-
Wire Lead:
-
26AWG 300mm long
-
Function:
-
Momentary
-
Switch combination:
-
1NO
-
Illuminated or not:
-
No Led
-
Product type:
-
Touch Piezo Switch
-
Certification:
-
CE
Quick Details
-
Protection Level:
-
IP68, IP68
-
Max. Current:
-
2A
-
Max. Voltage:
-
24VDC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WELFNOBL
-
Model Number:
-
PS16B-PNOF
-
Products Name:
-
Piezo Switch
-
Housing Material:
-
Stainless Steel
-
Mounting hole diameter:
-
16mm
-
Head type:
-
Flat head
-
Wire Lead:
-
26AWG 300mm long
-
Function:
-
Momentary
-
Switch combination:
-
1NO
-
Illuminated or not:
-
No Led
-
Product type:
-
Touch Piezo Switch
-
Certification:
-
CE

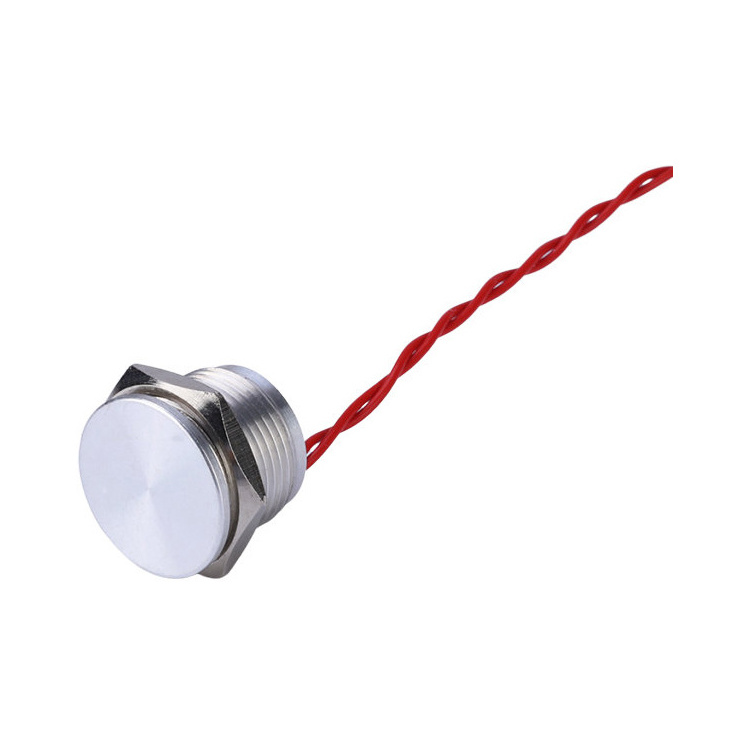

16mm 12V No Led Momentary Type 1NO Stainless Steel IP68 Waterproof Touch Piezo Switch For Boat
Product description
Item specifics:
Item type: Switches
Switch type: Piezo Switch
Model number: PS16B-PNOF
Current: 2A(max 5A)
Warranty: 2 years
Material: Stainless Steel (Aluminum Oxidized)
Is customized: Yes
Mounting hole size: 16mm
Head shape: Flat
Switch combination: 1NO
Operation type: Momentary
Protection level: IP68
|
IP68 Waterproof P iezo Switch |
|
|
Model |
PS16B -P NO F |
|
Mounting Hole |
16 mm |
|
Operation Type |
Momentary (Reset) |
|
Switch Combination |
1NO |
|
Actuator Shape |
Flat Round Head |
|
Cable Length |
300mm long |
|
Current |
2A |
|
Led Voltage |
12V (or 3V/5V /6V /24V) |
|
Led Color |
Blue (Red, Green, Yellow, White, Purple, Bi-color, Tri-color available) |
|
Illuminated Type |
Ring Led |
|
Enclosure Material |
Stainless Steel (or Silver Aluminum Oxidized ) |
|
Operating Force |
6 to 15N |
|
Life Expectancy |
50 Million cycles |
|
Waterproof Degree |
IP68 |
|
Operating Temperature |
- 4 0°C ~+ 7 5°C |
|
Customized colored housing or Connector |
Acceptable and with fast shipping |
|
Accessories |
Nut, Rubber Waterproof O-ring |
|
Customized Order Confirm |
1. What Led Color? 2. What Led Voltage? |
|
What You Get |
1X P iezo Switch : 16 mm, Momentary , 12V Blue LED, Stainless steel |
Note: If you need Customized LED, please inform us by mail:
1. What Led Color? 2. What Led Voltage?
