Quick Details
-
Dimension:
-
130mm*70mm*33.5mm
-
Optional axis:
-
X Y Z 4 (2/3/4/5/6 Axes Optional)
-
Magnification:
-
X1 X10 X100
-
Frequency Response:
-
0-50kHz
-
Protection Class:
-
IP50
-
Supply Voltage:
-
5-15V/10-30V
-
Output Circuit:
-
Voltage/Line Driver
-
Output Pulse No:
-
25/100
-
Output Phase:
-
A,B
-
Operating Temperature:
-
-10+60°C
Quick Details
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
SANSHENG
-
Model Number:
-
SSF
-
Dimension:
-
130mm*70mm*33.5mm
-
Optional axis:
-
X Y Z 4 (2/3/4/5/6 Axes Optional)
-
Magnification:
-
X1 X10 X100
-
Frequency Response:
-
0-50kHz
-
Protection Class:
-
IP50
-
Supply Voltage:
-
5-15V/10-30V
-
Output Circuit:
-
Voltage/Line Driver
-
Output Pulse No:
-
25/100
-
Output Phase:
-
A,B
-
Operating Temperature:
-
-10+60°C

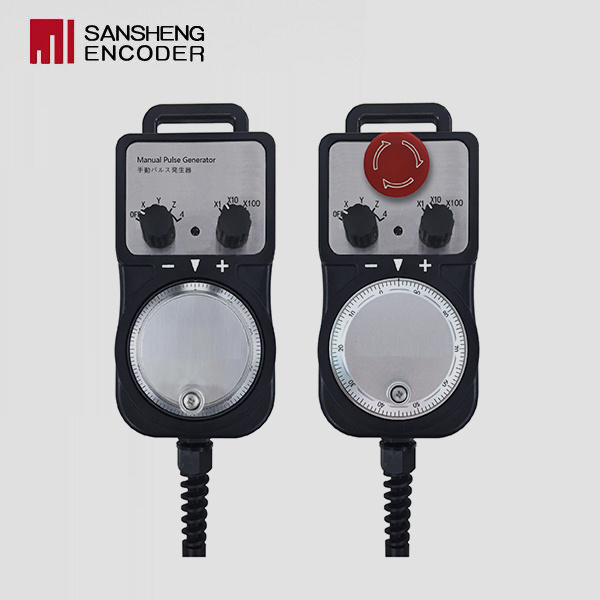

Standard CNC mpg handwheel pulse generator for Fanuc system
Manual pulse generators(handwheel/mpg) are typically rotating knobs that generate electrical pulses. They are normally associated with computer numerically controlled (CNC) machinery or other devices involving positioning. When the pulse generator sends an electrical pulse to an equipment controller, the controller then moves a piece of equipment a predetermined distance with every pulse.
Optical encoders use a light source and a photo detector array to read the optical pattern of a plastic or glass disc and translate the pattern into a position data code.
1. Certification: CE & ISO9001 & RoHS.
2.Feature: sturdy and durable, easy to install, optional various output mode, etc.
3.Manufacturer: quality control, better delivery control and better cost control.
| SPECIFICATION | Output Pulse | 100P/R | 25P/R | |
| Output Model | Voltage | Line Driver | ||
| Supply Voltage | DC5V-15V/10-30V | DC5V-0.25V | ||
| Current Requirement | ≤60mA | ≤150mA | ||
| Signal Level | High | ≥Vcc-1V | ≥2.5V | |
| Low | ≤0.5V | ≤0.5V | ||
| Rise/Fall time | ≤1us | ≤0.1us | ||
| Output Phase | A,B,-A,-B | |||
| Frequency Response | ≤30kHz | |||
| Risolation resistance | ≥20MΩ | |||
| Normal rotational speed | ≤200r/min | |||
| Slew speed | 600r/min | |||
| Operating temperature | -10-+60°C | |||
| Storage Temperature | -20-+70°C | |||
| Dimension |
130mm×70mm×33.5mm |
|||
| Switch for resolution | ×1,×10,×100 | |||
| Switch for Axes | O/X/Y/Z/2/3/4/6 | |||
