Quick Details
-
color:
-
Gun black/Pearl white
-
Mortise Type:
-
ANSI
-
Accepted Door Thickness:
-
38-55mm
-
Card Type:
-
M1 card
-
Unlocking Way:
-
M 1Cards, Mechanical keys
-
warranty:
-
1 year
-
certificates:
-
CE, FCC, ISO9001
-
Application:
-
Hotel, Household, Commercial
-
HS Code:
-
8301400000
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Tediton
-
Material:
-
Stainless steel
-
color:
-
Gun black/Pearl white
-
Mortise Type:
-
ANSI
-
Accepted Door Thickness:
-
38-55mm
-
Card Type:
-
M1 card
-
Unlocking Way:
-
M 1Cards, Mechanical keys
-
warranty:
-
1 year
-
certificates:
-
CE, FCC, ISO9001
-
Application:
-
Hotel, Household, Commercial
-
HS Code:
-
8301400000
what we sell are not only locks, Tediton offers and develops innovative security solutions for hospitality industry. Over 500 customers in 65 countries are beeing served, including hotels, holiday resorts, nursing centers and student housing.

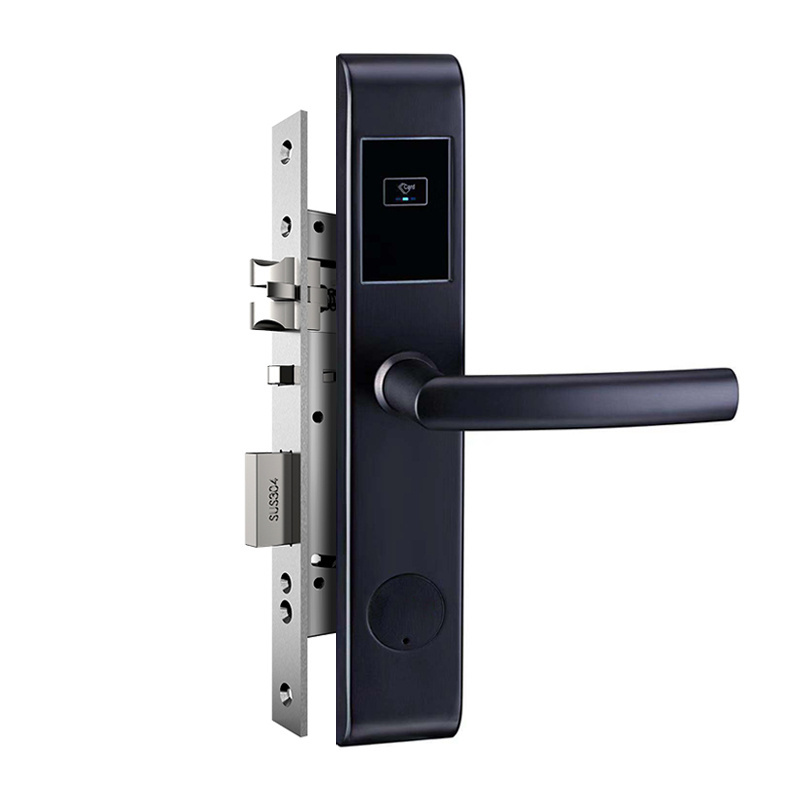

304 SS Hotel RFID Card Hotel Lock System With Easy Hotel Card Lock Management Software
Technical Specification:
|
|
|
|
Certificates |
CE,FCC certificated |
|
Material |
Pure 304# stainless steel |
|
Mortise |
ANSI 70mm backset standard Mortise, |
|
Latch and deadbolt material |
304# die casting stainless steel material |
|
Motor life test |
500,000 times |
|
Keycard type |
M1 card 1K S50 Philip chip, ISO 14443A standard |
|
Power supply |
4*AAA alkaline batteries (DC6V) |
|
Static current |
25uA |
|
Dynamic current |
<150mA |
|
Working Temperature |
-20-45 degree |
|
Battery life in normal open |
150 times |
|
Low batteries alarm |
When battery is lower than 4.8V, there is di-di beep, then you can still open 150 times |
|
Audit Trial |
990 latest records include the mechanical key |
|
Available door thickness |
40-65mm |
|
Color option |
Satin stainless steel/Gold/Black |
|
Suggest Usage |
Wooden door |
4. Strong Advance Hotel management software, which can interface with most of the PMS system, Fidelio, Opera system.
which bring a big conveniences for hotel owner and projector.
Support operation system: WINDOWS XP/WINDOWS 7/ WINDOWS 8/ WINDOWS10
5. One-stop intergrated Hotel lock system service.
- Comupter memory: 500GB above, hard disk suggest 2G above, USB port required.
- Software: Window system, Windows 7/8/10
- Data base: Window access/ Microsoft SQL Server 2008 above
- Encoder: Read and write card and software registration
- Door Lock: Installed on each room.
- LCD Handset: Configure room No, Adjust time, Audit trial records etc.
- RFID Cards: unlock the door
- Printer: as request from the site.
About Card encoder:
| Working voltage | DC5V |
| Related current | 500MA |
| Working Humidity | 10%-90% |
| Working Temperature | -20degree-55degree |
| reading speed | <1s |
| Detect Type | auto check |
| port | Universal USB port, no need extra driver |
| system | support one card system intergration. |
About LCD HANDSET
Function:
One station solution, no need special room setting card.
Fast and correct time adjustment.
Special system checking for hardware and firmware.
Easy to check card information.
Convenient to check Audit trial records.
Support check-out function.
| Working Voltage | DC3V |
| Static current | <10uA |
| Working current | <100mA |
| Storage humidity | RH5%-95% |
| Working Temperature | -25 degree ~70 degree |
| sizes | 177.6*85*30mm |
About the card:
Adopt Philip chip M1 1K S50 Cards, stable with good performances.
Can be customized if order more than 200pcs.
About the package:
| Singel gross weight | 3.5 kg/pc |
| Standard package | Foam packing One lock one box |
| Carton sizes | 540*420*270mm |
| Quantity of package | 8 pcs/ carton |
Our factory:
Tediton always concentrate the quality and provide the continuous service and keep the cost of customers and business partner in this area at the minimum level with infracture created by the latest technology products and high-effciency security and access control products.
We focus on every details during R& D, Manufacturing and sales. and aim to produce high quality products and provide to our customers. To process and grow up the intelligent Lock industry,
We insist the brand and quality as our pursue!
