Quick Details
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM-M10/144H 590W N Type All Black
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1726*1134*30mm
-
Name:
-
all black solar panel
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Delivery:
-
15 days
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, Flexible, BIPV, HJT, N-TYPE, TOPCON, Foldable, IBC
-
Panel Efficiency:
-
21.5%
-
Warranty:
-
25 years, 25 Years Output Power Guarantee
-
Brand Name:
-
Greensun
-
Model Number:
-
GSM-M10/144H 590W N Type All Black
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
1726*1134*30mm
-
Name:
-
all black solar panel
-
Solar cell:
-
Mono Half Cell
-
Frame:
-
Anodized Aluminium Alloy
-
Frame Color:
-
Silver or Black
-
Junction Box:
-
IP68
-
OEM:
-
Acceptable
-
Connector:
-
PV Connector
-
Delivery:
-
15 days
Product Description
|
Model
|

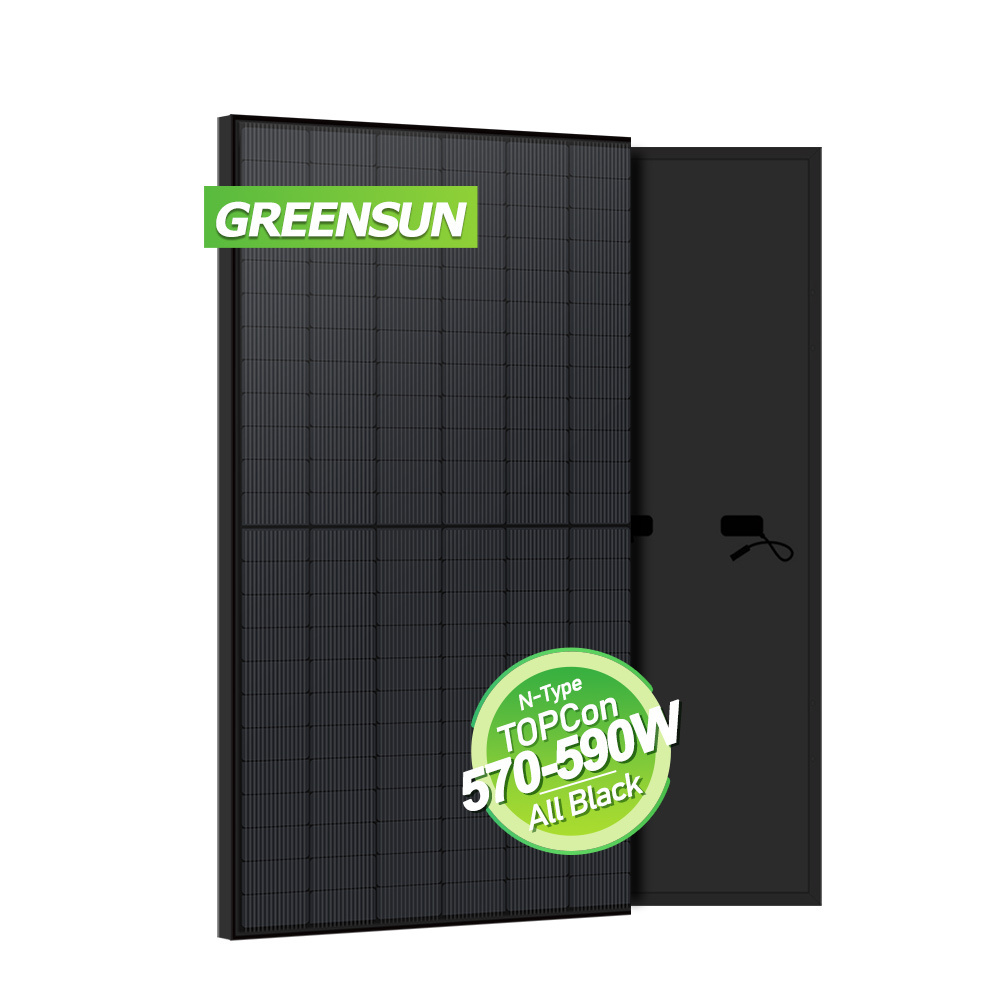

N-Type TOPCON All Black GSM-M10/144H 570-590W
|
|
|
|
|
||||
|
Rated Maximum Power(Pmax) [W]
|
570
|
575
|
580
|
585
|
590
|
||||
|
Open Circuit Voltage(Voc) [V]
|
50.74
|
50.88
|
51.02
|
51.16
|
51.3
|
||||
|
Maximum Power Voltage(Vmp) [V]
|
42.07
|
42.22
|
42.37
|
42.52
|
42.67
|
||||
|
Short Circuit Current(Isc) [A]
|
14.31
|
14.39
|
14.47
|
14.55
|
14.63
|
||||
|
Maximum Power Current(Imp) [A]
|
13.55
|
13.62
|
13.69
|
13.76
|
13.83
|
||||
|
Module Efficiency [%]
|
22.06
|
22.25
|
22.44
|
22.64
|
22.84
|
||||
|
Power Tolerance
|
0~+5W
|
|
|
|
|
||||
|
Temperature Coefficient of Isc(α_Isc)
|
+0.040%/℃
|
|
|
|
|
||||
|
Temperature Coefficient of Voc(β_Voc)
|
-0.240%/℃
|
|
|
|
|
||||
|
Temperature Coefficient of Pmax(γ_Pmp)
|
-0.300%/℃
|
|
|
|
|
||||
|
STC
|
Irradiance 1000W/m²,ﾠcell temperature 25℃, AM1.5G
|
|
|
|
|
||||
Factory & Production
Greensun Solar Energy Tech. Co., Limited is a professional, fast growing company. Greensun Solar is well known as a world leading manufacturer of cost-effective, high efficiency and good quality photovoltaic panel, storage battery, and complete solar energy system for residential and C&I application. Greensun Solar founded in 2004, is headquartered in Hefei, Anhui China. Our factory covers 90,000 square meters area and has more than 2,000 employees. Greensun Solar has 15years experience in solar industry and is dedicated to research and development, production innovation and strict quality control management. We aim to manufacture and provide reliable and innovated solar panel and solar energy solutions to the world.
Packing & Transport
Packing:
Packing Method: Customized Wooden&Carton with Pallet(offer 100% protection during transportation)
Transport:
Accodring to your products quantity and requirement , we will choose Security and Economical transportation for you .
Including Sea transportation ,Air transportation , Land transportation and Express .
