Faster than circular sawing machines, can be reached less than 1 second/cut
The shortest tail material can reach 40mm
- Product Details
- {{item.text}}
Quick Details
-
Cutting Area:
-
Diameter 14-65mm
-
Cutting Thickness:
-
Maximum 3mm
-
Control Software:
-
SteviS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SteviS
-
Weight (KG):
-
3500 KG
-
Product name:
-

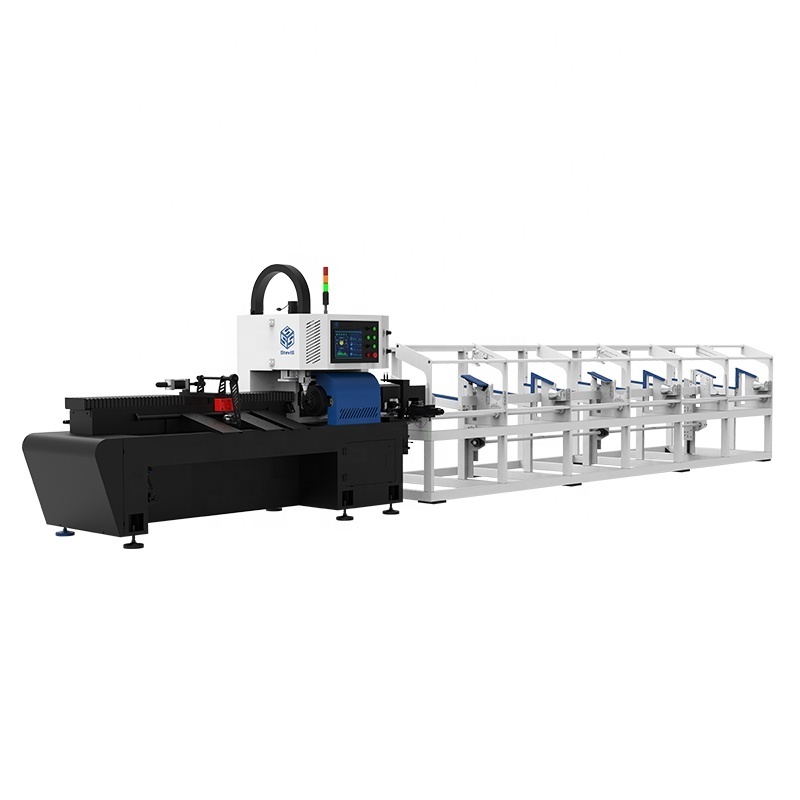

Round tube laser cutting machine
-
Optional:
-
Cutting length, spatter reduced function
-
Cutting Length:
-
30-1500mm
-
Cutting materials:
-
Stainless steel, carbon steel, iron, aluminum, brass, copper
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
1000W / 1500W / 2000W
-
Keyword:
-
Laser Metal Cutting Cnc Machine
-
Type:
-
Fiber Lasr Cutting
Quick Details
-
Laser Type:
-
Fiber Laser
-
Cutting Speed:
-
According to the pipe size
-
Cooling Mode:
-
WATER COOLING
-
Cutting Area:
-
Diameter 14-65mm
-
Cutting Thickness:
-
Maximum 3mm
-
Control Software:
-
SteviS
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
SteviS
-
Weight (KG):
-
3500 KG
-
Product name:
-
Round tube laser cutting machine
-
Optional:
-
Cutting length, spatter reduced function
-
Cutting Length:
-
30-1500mm
-
Cutting materials:
-
Stainless steel, carbon steel, iron, aluminum, brass, copper
-
Voltage:
-
380V 50Hz 3Phase/Customized
-
Function:
-
Cutting Metal Materials
-
Laser power:
-
1000W / 1500W / 2000W
-
Keyword:
-
Laser Metal Cutting Cnc Machine
-
Type:
-
Fiber Lasr Cutting
CNC pipe lazer cutting machine for sale in Turkey automatic high-speed steel pipe cutting machine 2000W laser local service
Products Description
Smooth and Burr-free cutting
Cutting capacity
|
Material
|
Diameter * Thickness * Length
|
Cutting Capacity
|
|
Stainless Steel
|
12*0.4*252 mm
|
1, 500 pcs / hour
|
|
Carbon Steel
|
10*1.0*615 mm
|
1, 200 pcs / hour
|
|
Carbon Steel
|
9.8*0.8*465 mm
|
2, 000 pcs / hour
|
Fully automatic loading & feeding
Each machine can help save 3-5 workers comparing to saw blade cutting machine.
Save labor costs.
Fiber laser source
We usually use MAX or RAYCUS fiber laser source. We can also provide IPG laser source if you need better cutting effect.
Laser cutting head
We usually use RAYTOOLS or OSPRI laser cutting head.
Spatter reducing device
We can add an automatic spatter reduced device to ensure that the inner wall of the workpiece remains clean.
Product Paramenters
|
Model No.
|
ST-FL70F
|
ST-FL70F
|
|
|
Cutting Diameter
|
14-65mm
|
15-65mm
|
|
|
Machine size
|
8700X1800X1900mm
|
8700X1800X1900mm
|
|
|
Maximum cutting Length
|
1500mm ( Can be customized )
|
|
|
|
Laser power
|
1000-2000W
|
|
|
|
Laser Source
|
MAX/RAYCUS/IPG
|
|
|
|
Laser Head
|
RAYTOOLS/OSPRI
|
|
|
|
Voltage
|
380V 50Hz 3Phase ( Can be customized )
|
|
|
|
Servo motor & driver
|
DELTA / Taiwan
|
|
|
