Quick Details
-
Model Number:
-
SHOW L18A
-
Dimension:
-
W582mm *D620mm * H520mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
Rated power:1000 W
-
Format:
-
N/A
-
Model No.:
-
SHOW L18A
-
System type:
-
1 unit line array subwoofer
-
Rated Power:
-
1000 W
-
Max power:
-
2000 W
-
Peak Power:
-
4000W
-
Nominal impedance:
-
8 Ω
-
Recommended power amp output rating:
-
1000W-1500W@ 8 Ω
-
Max SPL(Pmax@1m):
-
129dB@1000W(132dB@2000W)
-
Frequency response(-10 dB):
-
30Hz-250Hz
-
Nominal coverage pattern(-6dB):
-
omnidirectional
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Deken
-
Model Number:
-
SHOW L18A
-
Dimension:
-
W582mm *D620mm * H520mm
-
Storage:
-
N/A
-
SNR:
-
N/A
-
Output Power:
-
Rated power:1000 W
-
Format:
-
N/A
-
Model No.:
-
SHOW L18A
-
System type:
-
1 unit line array subwoofer
-
Rated Power:
-
1000 W
-
Max power:
-
2000 W
-
Peak Power:
-
4000W
-
Nominal impedance:
-
8 Ω
-
Recommended power amp output rating:
-
1000W-1500W@ 8 Ω
-
Max SPL(Pmax@1m):
-
129dB@1000W(132dB@2000W)
-
Frequency response(-10 dB):
-
30Hz-250Hz
-
Nominal coverage pattern(-6dB):
-
omnidirectional

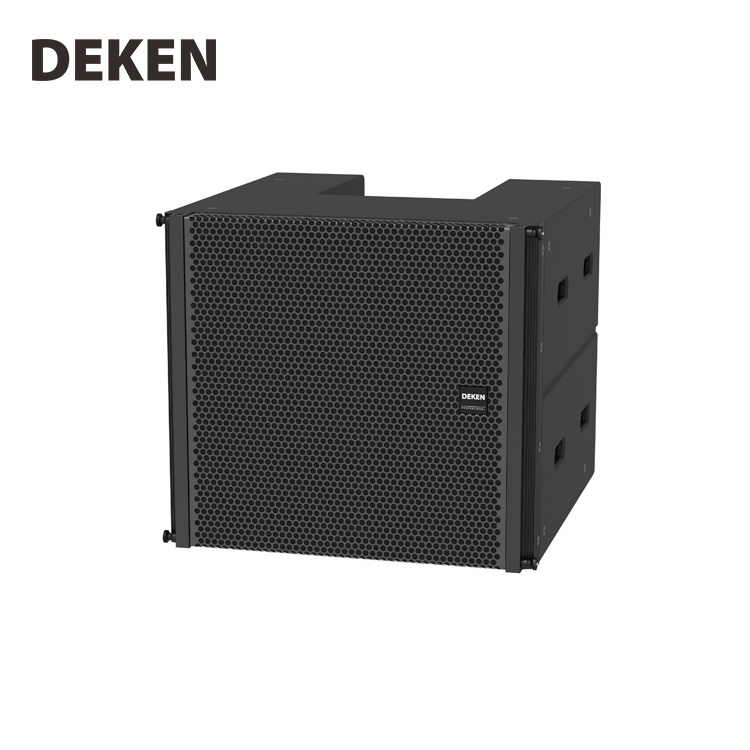

DEKEN SHOW L18A 18-Inch Line Array Subwoofer 8 Ohms 1000W KTV Stage Performance Sound Equipment 1 Unit Line Array Subwoofer
Products Description
Features:
System type: 1 unit line array subwoofer
Rated power：1000 W
Max power：2000 W
Peak power：4000W
Nominal impedance：8 Ω
Recommended power amplifier output rating：1000W—1500W@ 8 Ω
Nominal sensitivity（1W@1m）：99 dB
Max SPL（Pmax@1m）：129dB@1000W(132dB@2000W)
Frequency response(-10 dB)：30Hz—250Hz
Nominal coverage pattern（-6dB）：omnidirectional
Speaker component：LF driver 18″（460mm diameter 100 mm voice coil）×1
Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
Enclosure：15mm（0.6″）High quality birch plywood
Color：Default is black, other colors can be customized
Dimensions：W582mm x D620mm x H520mm
Weight：39.1 kg
Shipping weight：42.3kg
Reference applications:：Ultra-low frequency compensation for Show L208
System type: 1 unit line array subwoofer
Rated power：1000 W
Max power：2000 W
Peak power：4000W
Nominal impedance：8 Ω
Recommended power amplifier output rating：1000W—1500W@ 8 Ω
Nominal sensitivity（1W@1m）：99 dB
Max SPL（Pmax@1m）：129dB@1000W(132dB@2000W)
Frequency response(-10 dB)：30Hz—250Hz
Nominal coverage pattern（-6dB）：omnidirectional
Speaker component：LF driver 18″（460mm diameter 100 mm voice coil）×1
Connector：Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
Enclosure：15mm（0.6″）High quality birch plywood
Color：Default is black, other colors can be customized
Dimensions：W582mm x D620mm x H520mm
Weight：39.1 kg
Shipping weight：42.3kg
Reference applications:：Ultra-low frequency compensation for Show L208
Specifications:
|
Subwoofer model
|
DEKEN SHOW L18A
|
|
System type
|
1 unit line array subwoofer
|
|
Rated power
|
1000 W
|
|
Max power
|
2000 W
|
|
Peak power
|
4000W
|
|
Nominal impedance
|
8 Ω
|
|
Recommended power amplifier output rating
|
1000W—1500W@ 8 Ω
|
|
Nominal sensitivity（1W@1m）
|
99 dB
|
|
Max SPL（Pmax@1m）
|
129dB@1000W(132dB@2000W)
|
|
Frequency response(-10 dB)
|
30Hz—250Hz
|
|
Nominal coverage pattern（-6dB）
|
omnidirectional
|
|
Speaker component
|
LF driver 18″（460mm diameter 100 mm voice coil）×1
|
|
Connector
|
Speakon NL4×2（PIN1+/2+POS. PIN1-/2-NEG.）
|
|
Enclosure
|
15mm（0.6″）High quality birch plywood
|
|
Color
|
Default is black, other colors can be customized
|
|
Dimensions
|
W582mm x D620mm x H520mm
|
|
Weight
|
39.1 kg
|
|
Shipping weight
|
42.3kg
|
|
Reference applications:
|
Ultra-low frequency compensation for Show L208
|
Product details
Project Solutions
Suitable occasions:
Airports, Bus stations, Hotels, Office buildings, Gyms, Villas, Homes, Schools, Bar spas,KTV ,Saunas, Parks.......
