Quick Details
-
Seat:
-
14
-
Dimension:
-
4950*1760*1950
-
Battery:
-
USA Trojan golf cart batteries
-
Max forward speed:
-
23km/h
-
Load:
-
1050360kg
-
Motor:
-
48V3.7KW AC Motor
Quick Details
-
Brand Name:
-
EXCAR
-
Place of Origin:
-
Guangdong, China
-
ITEM NO:
-
D-G14
-
Seat:
-
14
-
Dimension:
-
4950*1760*1950
-
Battery:
-
USA Trojan golf cart batteries
-
Max forward speed:
-
23km/h
-
Load:
-
1050360kg
-
Motor:
-
48V3.7KW AC Motor

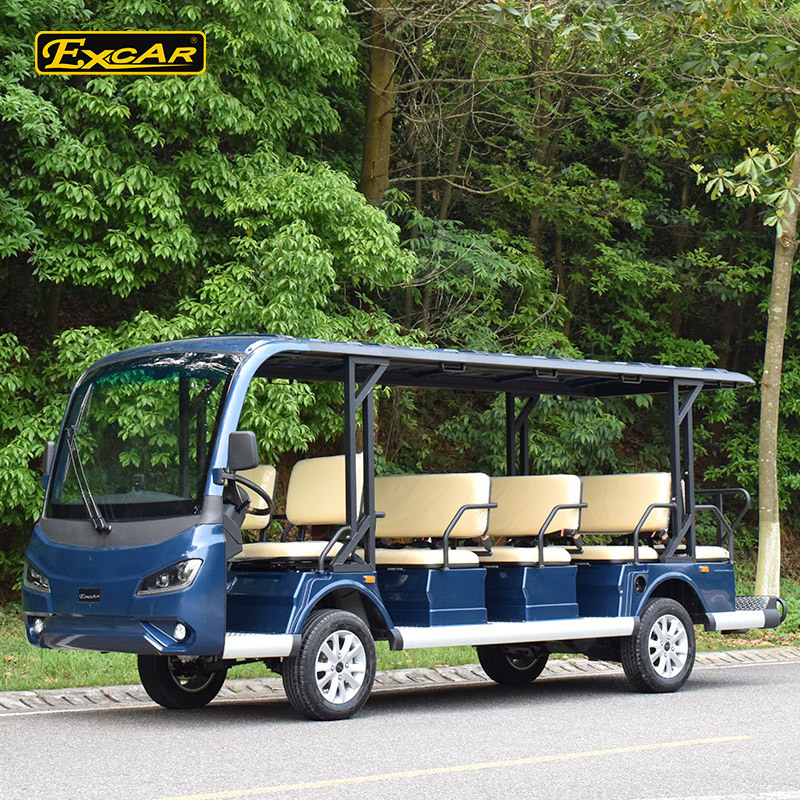

Customize 14 seater sightseeing bus new electric car china mini bus
Standard Configration :with 72V 3.7KW DC system
Product Description:
|
14 seats performance view - AC system |
|
|
Model Name: |
D-G14 |
|
Bus Size: |
L5050×W1480×H2300mm |
|
Weight(with battery): |
1200kgs |
|
Wheel Space: |
2700mm |
|
F/R track: |
1200/1230 mm |
|
Min Ground Clearance: |
135mm |
|
Max Forward Speed: |
27km/h |
|
Max Speed Braking Space: |
≤4 m |
|
Min Turning Radius: |
5m |
|
Max Climbing capacity: |
25% |
|
Max Pull: |
8.5kN |
|
Rated Power: |
7.5 KW |
|
Voltage: |
72V |
|
Charging Time: |
8-10H |
|
Range: |
Load 55km, unload 75km |
|
Configuration |
|
|
Chassis: |
High-strength Steelwork |
|
Motor: |
7.5kw 3440r/min |
|
Controller: |
MC3336 72V/400Ah AC motor |
|
Battery: |
USA Trojan 6V*12pcs |
|
Charger: |
Intelligent high frequency off-board charger |
|
Transaxle: |
Overall transaxle |
|
Suspension System: |
Leaf Spring Assembly |
|
Steering System: |
Gear & chain steering system |
|
Brake System: |
Front Disk brakes Rear drum brakes |
|
Roof/Windshield: |
High-strength composite board roof/automobile special safety glass |
|
Tyre: |
165/70R14 vacuum tyre ,alum rim |
Product Show:
Optional colours :
Packing & Shipping:
1,LCL Shipment Packing :golf cart roof move-off packing, steel frame , cartoon paper cover.
2,FCL Shipment Packing : golf cart packed by plastic foam & plastic film
Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours.
2. We offer OEM services. Can print your own logo on product ,can customize the electrical golf cart body colour and other things.
3.Our director who developed the golf cart and he is the Doctor for engineering,and he has more than 10 years experience with the cart,so any carts problem you can contact him.He can speak fluent English to solve any your problem.
year fully Warranty , offer golf cart FREE components under EXW shipped term
