Magnetic locks can be customized in large quantities in acceptable colors and sizes. Our 20 years of lock-making experience will escort your product quality.
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Material:
-
Aluminum alloy
-
Voltage:
-
DC12v
-
Current Draw:
-
12v340mA
-
Weight:
-
1.90kg
-
Holding Force:
-
300kg(+20%)
-
Lock Size:
-
238x25x48mm
-
Function:
-
Waterproof
-
Feature:
-
Easy Installation
Quick Details
-
Place of Origin:
-
other
-
Brand Name:
-
YGS
-
Product Name:
-

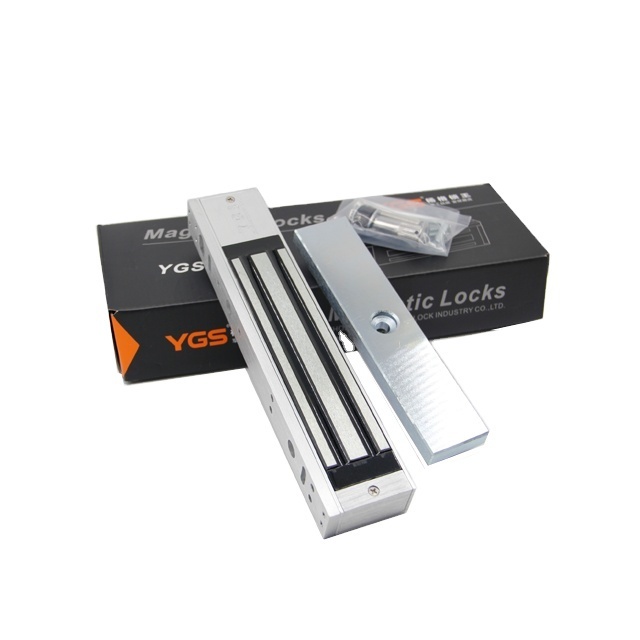

magnetic door lock with remote
-
Material:
-
Aluminum alloy
-
Voltage:
-
DC12v
-
Current Draw:
-
12v340mA
-
Weight:
-
1.90kg
-
Holding Force:
-
300kg(+20%)
-
Lock Size:
-
238x25x48mm
-
Function:
-
Waterproof
-
Feature:
-
Easy Installation
Product Description
|
Product Parameter
|
Parameter Description
|
|
|
||
|
Lock Size:
|
238Lx25Wx48H(mm)
|
|
|
||
|
Armature plate:
|
182Lx 38Wx 12.5H(mm)
|
|
|
||
|
Holding Force :
|
300KG(666Lbs)±20%
|
|
|
||
|
Input Voltage :
|
12/24VDC Dual Voltage
|
|
|
||
|
Suitable for door:
|
Wooden door , Glass door ,Metal door , Fireproof door
|
|
|
||
|
Singal Output :
|
Lock singal Status NO/NC/COM/+/-
|
|
|
||
|
Feature:
|
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
|
|
|
||
|
LED:
|
Red shows unlocked, Green shows locked
|
|
|
||
|
Weight:
|
1.9KG
|
|
|
||
|
Certification:
|
CE/ISO9001/RoHS
|
|
|
||
Product Advantage
Details Images
|
Outside Install type
|
|
|
|
|
|
|||||
|
Model
|
180M
|
300M
|
300MD
|
350M
|
500M
|
|||||
|
Voltage
|
12VDC
|
12VDC/24VDC
|
12VDC/24VDC
|
12VDC/24VDC
|
12VDC/24VDC
|
|||||
|
Current
|
300mA
|
420mA/210mA
|
840mA/420mA
|
500mA/270mA
|
430mA/250mA
|
|||||
|
Holding Force±20KG
|
180KG
|
300KG
|
300KGx2
|
350KG
|
500KG
|
|||||
|
Weight
|
1.05KG
|
1.9KG
|
3.9KG
|
22.4KG
|
4.8KG
|
|||||
YGS Magnetic lock appearance upgrade design
Product Usage
Office glass door
1.Fail safe
2.
Signal output, time delay, 12/24VDC, Status LED etc are all optional.
3. Inner current reactive setting protect access control equipment
Fire-proof door
We have a large range selection of electric holding magnets for locking escape route doors, providing highest protection for both your property and personal safety.
