Quick Details
-
Model:
-
DV-217 Fabric pleating machine
-
Working width:
-
1700 mm
-
Speed:
-
20-100beats/min
-
Motor Power:
-
1.1 kw
-
Heating Power:
-
10 kw
-
Weight:
-
1300kg
-
Dimension:
-
3200*1650*1750 mm
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
1300
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Davo
-
Model:
-
DV-217 Fabric pleating machine
-
Working width:
-
1700 mm
-
Speed:
-
20-100beats/min
-
Motor Power:
-
1.1 kw
-
Heating Power:
-
10 kw
-
Weight:
-
1300kg
-
Dimension:
-
3200*1650*1750 mm
-
After Warranty Service:
-
Video technical support
High Quality Textile Cloth Sunray Filter Paper Pleating Machine For Sale
Description of the fabric pleating machine
1. The machine is a special equipment mainly used for crimping and shaping of various chemical fiber blended fabrics.
2. The processed fabric can be used to make all kinds of garments, such as scarves, shirts, children's wear, skirts, etc., and the patterns are beautiful and special, and the three-dimensional feeling is strong.
Such as: wave pattern, straight line, combination pattern, bamboo leaf pattern and so on. The heat-set fabric has increased elasticity and good stability.
3. The machine is designed with a variable view mechanism and a sliding view device, and the size of the snoring is convenient to adjust.
4. Its working principle is to rely on the speed difference of the transmission roll, the natural shrinkage of the fabric, and can cooperate with the change of copper roller patterns into different styles of patterns. Widely used in fashion, home textile, leather, medical supplies and other major industries.
5. It has the advantages of simple operation and fast speed.
Technical data of the fabric pleating machine
|
Model |
DV -217/217D |
DV -416 |
DV -516 |
|
Working width |
1700mm |
1600mm |
1600mm |
|
Speed |
20-100beats/min |
20-150beats/min |
10-60beats/min |
|
Motor power |
1.1kw |
||
|
Heating power |
10kw |
8kw |
7kw |
|
Weight |
1300kg |
800kg |
900kg |
|
Dimension |
3200*1650*1750mm |
1900*1000*1300mm |
2400*1450*1550mm |
DV -217/217D model and pleating type (can do more 20 patterns )
DV-217 D model, in the mechanical version of the type 217 multi-function pressure plait machine, on the basis of increased computer servo mechanism, air cylinder is controlled by computer program, wire rod, electrical components such as action, and with infra-red positioning function, mechanical version machine adjustment is more convenient than ever before, transformation design more flexible and more powerful, deeply the general customers the high praise.
DV -416 Model photo
DV -516 Model photo ( fanshaped )
This machine is a special equipment for processing fan-shaped pleats whose fabrics are chemical fiber and blended fabric.The machine design, reasonable plan, after the thermal setting of three-dimensional sense, clear layers, folding depth (size) adjustment is simple, is the domestic original new discount machine.
DV -816 Model photo ( Customized extended version)

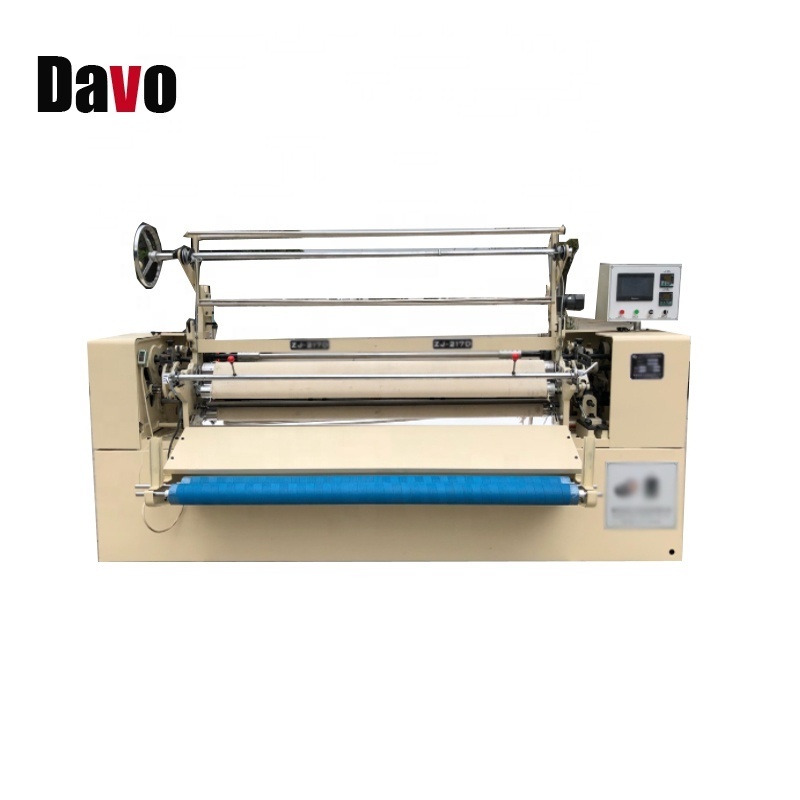

Photos of the fabric pleating machine
Final products of the fabric pleating machine
|
Customized Service |
1. We can design our machines depends on customers’ demands to meet different needs of customers. 2. Customized moulds and size, customized voltage. |
|
Team Strength |
1. We can provide customers complete sales, consulting, installation, maintenance of the continuous line services. 2. Well trained sales team. professional staff with efficient communication to recommend the most suitable machine to customers. 3. Update timely on order status such as starting the order, processing the order till the order completion. |
|
Quality inspection |
1. Stable raw material purchasing . 2. Before shipping the machine, our woker will test and make sure they are in good condition. |
|
After-sales Service |
1. Operation video & instruction will be sent to clients by email or together with the machine. 2. Spare parts provided. 3. Engineers are available to service machinery overs. |
