Quick Details
-
Model Number:
-
CS-529A1
-
Max. Current:
-
20A
-
Mechanical Life:
-
8000000
-
Color:
-
Black
-
Material:
-
ABS, PC, PBT
-
Input:
-
12/24V
-
Size:
-
23.6*12.*7.5CM
-
Certificate:
-
CE/ROHS
-
model number:
-
CS-529A1
-
Certification:
-
CE/ROHS/UL
Quick Details
-
Max. Voltage:
-
24V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WUPP
-
Model Number:
-
CS-529A1
-
Max. Current:
-
20A
-
Mechanical Life:
-
8000000
-
Color:
-
Black
-
Material:
-
ABS, PC, PBT
-
Input:
-
12/24V
-
Size:
-
23.6*12.*7.5CM
-
Certificate:
-
CE/ROHS
-
model number:
-
CS-529A1
-
Certification:
-
CE/ROHS/UL
Products Description
|
Product name
|

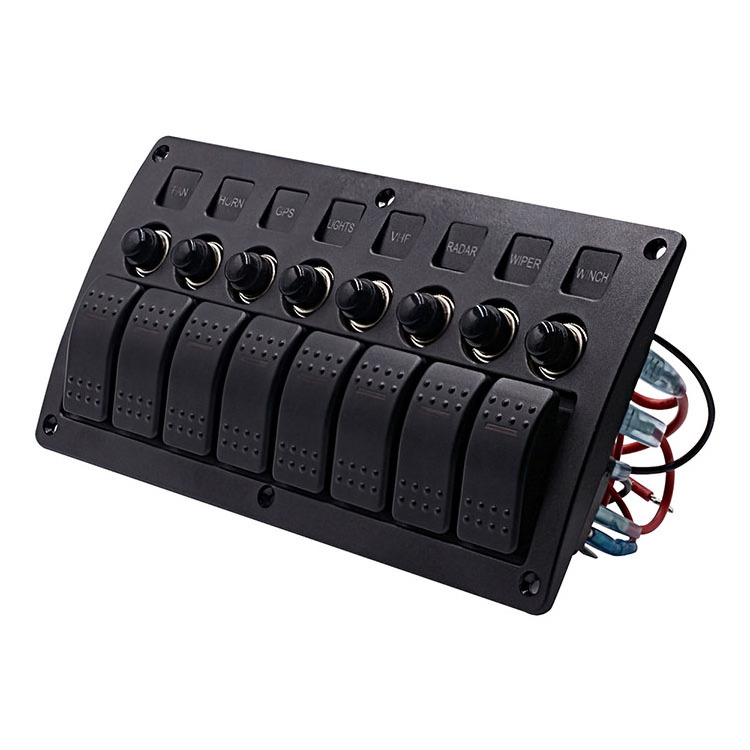

3pin 8-Position combined panel switch with lamp and lens
|
|
Product model
|
CS-529A1
|
|
Net weight
|
531.8g
|
|
Gross weight of product
|
609.5g
|
|
Product size
|
23.6*12.*7.5CM
|
|
Opening size
|
20.6*8.6cm
|
|
Product material
|
ABS, PC, PBT high and low temperature resistant, flame retardant and environment-friendly materials
|
|
Product color
|
black
|
|
Light color
|
gules
|
|
input voltage
|
DC12V/24V
|
|
maximum power
|
120-260W
|
|
working temperature
|
-25℃-80℃
|
|
Waterproof grade
|
IP65
|
|
Relevant certificates
|
CE/ROHS/UL
|
|
Product accessories
|
Self tapping screws*6, functional stickers and scratch resistant gaskets
|
|
Product use
|
It can be used as headlamp switch, fog lamp switch, visual width lamp switch, on-board refrigerator switch, on-board vacuum cleaner switch, etc
|
|
Scope of use
|
It is applicable to the installation and use of high-grade large-scale transportation tools such as ships, yachts, RV and buses
|
Product Advantages:
【1】the product is an 8-Position switch panel, including 8 switches, which can control the switching status of 8 consumers at the same time
【2】 The input voltage of the product is 12 / 24V, which can be installed and used by all ships and vehicles, with a wide range of applications
【3】 The products are made of ABS, PC and PBT high and low temperature resistant, flame retardant and environmental friendly materials, which can be used in the environment with the lowest temperature of - 25 ° and the highest temperature of 80 °
【4】 The product is equipped with overload protector. When the electric appliance controlled by a single switch exceeds the maximum input current of the corresponding overload protector, it will automatically cut off the power and will not cause any damage to the electric appliance. After the overload protector is pressed again, the electric appliance loaded with the corresponding current can continue to be used
