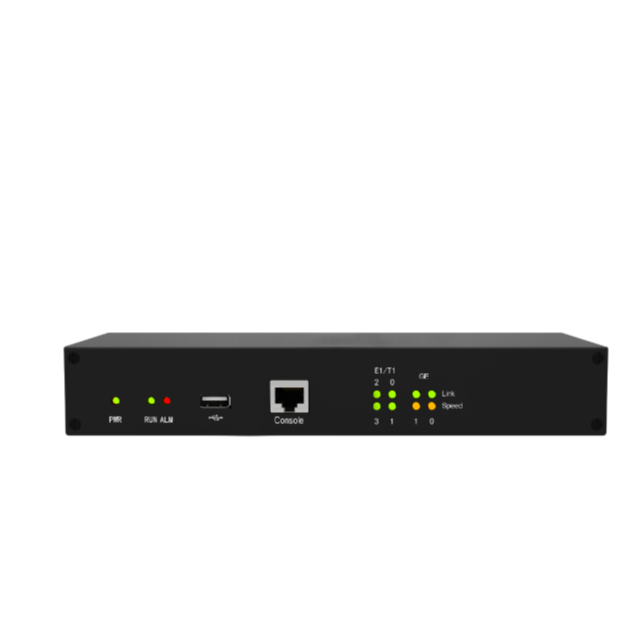

Dinstar VoIP E1/T1 ISDN PRI Trunk Media gateway, MTG200-2E1, support OEM/ODM

Dinstar VoIP E1/T1 ISDN PRI Trunk Media gateway, MTG200-2E1, support OEM/ODM

FOB Reference Price: Get Latest Price

≥1 Pieces

US $788

≥100 Pieces

US $745

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Product name:: VoIP gateway

Feature:: telecommunication

Ports:: 2 E1/T1

Interface Type:: RJ48(Impedance 120Ω)

Color:: Black

Warranty:: 12 Months

Power Supply:: 100-240VAC@DC12V1A

Storage Temperature:: -20 ℃ ~80 ℃

Dimension:: 225*150*38mm

Weight:: 0.8kg

Quick Details

Type:: VoIP Gateway

Brand Name:: Dinstar

Model Number:: MTG200-2E1

Place of Origin:: Guangdong, China

Product name:: VoIP gateway

Feature:: telecommunication

Ports:: 2 E1/T1

Interface Type:: RJ48(Impedance 120Ω)

Color:: Black

Warranty:: 12 Months

Power Supply:: 100-240VAC@DC12V1A

Storage Temperature:: -20 ℃ ~80 ℃

Dimension:: 225*150*38mm

Weight:: 0.8kg

Product Description

Product Paramenters

Overview

Dinstar MTG200 Trunk Gateway enables direct routing of calls between the fixed line ISDN and the cost-effective IP networks for capitalizing on low cost VoIP telephony. By integrating MTG200 Trunk Gateway with existing PBX / PABX telephone systems, businesses of all sizes can benefit from low-cost Voice over IP calls and achieve substantial cost savings without the high upfront costs associated with communications infrastructure changes related with the migration to VoIP.

MTG200 offering PBX/IP-PBX users a powerful telephony cost saving device and advanced flexible routing capabilities between ISDN PRI to SIP, and also can be situated between the PBX and the PSTN, saving the cost of an additional PBX E1/T1 port. It is ideally fit for various access networks of SMEs, call centers, telecom operators and large-scale enterprises.

Key Features

Up to 60 simultaneous calls with 2* E1/T1 ports Support echo cancellation, DJB, CNG, VAD and QoS Use of existing E1/T1 ISDN PRI interface of the PBX Use of existing VoIP interface of the IP-PBX Maintain existing dialing habits and business communication patterns Built-in Web-based management, SNMP, command line interface (CLI) Standard ISDN compliant and Interoperable with a wide range of IP-PBXs

Physical Interfaces

Voice Capabilities Default codec:G.711a/μ law, AMR G.723.1, G.729AB, iLBC Silence Suppression Comfort Noise Voice Activity Detection Echo Cancellation (G.168), up to 128ms Adaptive Dynamic Buffer Voice ,Fax Gain Control FAX:T.38 and Pass-through Support Modem/POS DTMF Mode: RFC2833/SIP Info/In-band Clear Channel/Clear Mode VLAN 802.1p/q 60 Concurrent Calls

PSTN ISDN PRI 23B+D(T1),30B+D(E1),NT or TE ITU-T Q.921, ITU-T Q.931, Q.Sig SS7 (optional) ITU-T, ANSI，ITU-CHINA MTP1/MTP2/MTP3, TUP/ISUP R2 MFC (optional) China and other 22 variants standard E1 Frame Type : DF,CRC-4,CRC_ITU T1 Frame Type : 4-Frame Multi-frame (F4,FT), 2-Frame Multi-frame (F12, D3/4), Extended Super-frame (F24, ESF) , Remote Switch Mode (F72, SLC96) Line Codes: E1:NRZ,CMI,AMI,HDB3 T1:NRZ,CMI,AMI,B8ZS

Software Features

Local/Transparent Ring Back Tone Overlapping Dialing Dialing Rules，with up to 2000 Voice Codecs Group Access Rule Lists 100 SIP Trunks Route direction: PSTN-IP, IP-PSTN, PSTN-PSTN, IP-IP

Environmental Power Adapter: 100-240VAC@DC12V1A Power Consumption:15W Operating Temperature:0 ℃ ~ 45 ℃ Storage Temperature: -20 ℃ ~80 ℃ Humidity:10%-90% Non-Condensing Dimensions(W/D/H): 225*150*38mm Unit Weight: 0.8kg Compliance: CE, FCC
