- Product Details
- {{item.text}}
Quick Details
-
Color:
-
FULL COLOR, FULL COLOR
-
Panel Size:
-
1000*500mm, 1000*500mm
-
Place of Origin:
-
Guangdong, China
-
Pixel Pitch:
-
Other, Other
-
Brightness:
-
5500nits, 5500nits
-
Resolution:
-
31250dots/㎡
-
Product name:
-

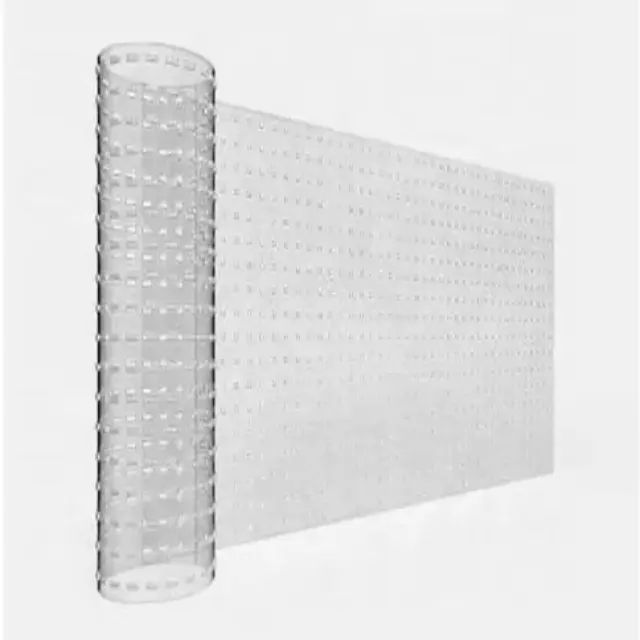

LED flexible transparent film display
-
LED type:
-
SMD1921
-
Keyword:
-
Glass Led Curtain Smd Full Color Transparent Led Display Screens
-
Transparency:
-
90%
-
Media Available:
-
datasheet, Photo, EDA/CAD Models, Other
-
Material:
-
Die-casting Aluminum
Quick Details
-
Application:
-
Indoor, Outdoor
-
Type:
-
LED
-
Brand Name:
-
MillonGreat
-
Color:
-
FULL COLOR, FULL COLOR
-
Panel Size:
-
1000*500mm, 1000*500mm
-
Place of Origin:
-
Guangdong, China
-
Pixel Pitch:
-
Other, Other
-
Brightness:
-
5500nits, 5500nits
-
Resolution:
-
31250dots/㎡
-
Product name:
-
LED flexible transparent film display
-
LED type:
-
SMD1921
-
Keyword:
-
Glass Led Curtain Smd Full Color Transparent Led Display Screens
-
Transparency:
-
90%
-
Media Available:
-
datasheet, Photo, EDA/CAD Models, Other
-
Material:
-
Die-casting Aluminum
Product Description
P50 P100 Lightweight HD Advertising Flexible Pixel Led Mesh Display Screen Transparent Led Outdoor Waterproof Grid Screen
|
Model
|
TGC1.9
|
TGC2.8
|
TGC3.9
|
TGC3.9
|
TGC5.2
|
||||
|
Pixel Pitch(mm)
|
H1.9-V3.9
|
H2.8-V5.6
|
H3.9-V7.8
|
H3.9-V7.8
|
H5.2-V10.4
|
||||
|
Pixel Matrix Per Sq.m
|
129,024
|
61,952
|
32,768
|
32,768
|
18,432
|
||||
|
Pixel Configuration
|
SMD1515
|
SMD1921
|
SMD1921
|
SMD1921
|
SMD1921
|
||||
|
Brightness (nits)
|
3,000
|
5,500
|
3,500
|
5,500
|
5,500
|
||||
|
Scan
|
1/14
|
1/11
|
1/8
|
1/8
|
1/6
|
||||
|
Cabinet Resolution
|
504x128
|
352x88
|
256x64
|
256x64
|
192x48
|
||||
|
Transparency
|
30%
|
50%
|
70%
|
70%
|
80%
|
||||
|
Power Con. (Max / Avg)
|
800/360w/sq.m
|
800/360w/sq.m
|
400/180w/sq.m
|
800/360w/sq.m
|
800/360w/sq.m
|
||||
|
Module Dimension
|
500x125mm /1.64x0.41ft
|
|
|
|
|
||||
|
Cabinet Dimension
|
1000x500mm / 3.28x1.64ft
|
|
|
|
|
||||
|
Cabinet Material
|
CNC Aluminum
|
|
|
|
|
||||
|
Cabinet Weight
|
5 kg
|
|
|
|
|
||||
|
Service Access
|
Front & Back
|
|
|
|
|
||||
|
Refresh Rate (HZ)
|
1920
|
|
|
|
|
||||
|
Viewing Angle (H/V)
|
160/160
|
|
|
|
|
||||
|
IP Rate
|
IP24
|
|
|
|
|
||||
|
Operation Temperature
|
-40° 〜45°
|
|
|
|
|
||||
|
Input Voltage (AC)
|
100V or 240V
|
|
|
|
|
||||
|
Model
|
TGC7.8
|
TGC7.8
|
TGC10.4
|
TGC10.4
|
|||
|
Pixel Pitch(mm)
|
H7.8-V7.8
|
H7.8-V7.8
|
H10.4-V10.4
|
H10.4-V10.4
|
|||
|
Pixel Matrix Per Sq.m
|
16,384
|
16,384
|
9,216
|
9,216
|
|||
|
Pixel Configuration
|
SMD1921
|
SMD1921
|
SMD1921
|
SMD1921
|
|||
|
Brightness (nits)
|
3,500
|
5,500
|
3,500
|
5,500
|
|||
|
Scan
|
1/4
|
1/4
|
1/3
|
1/3
|
|||
|
Cabinet Resolution
|
128x64
|
128x64
|
96x48
|
96x48
|
|||
|
Transparency
|
70%
|
70%
|
80%
|
80%
|
|||
|
Power Con. (Max / Avg)
|
400/180w/sq.m
|
800/360w/sq.m
|
400/180w/sq.m
|
800/360w/sq.m
|
|||
|
Module Dimension
|
500x125mm /1.64x0.41ft
|
|
|
|
|||
|
Cabinet Dimension
|
1000x500mm / 3.28x1.64ft
|
|
|
|
|||
|
Cabinet Material
|
CNC Aluminum
|
|
|
|
|||
|
Cabinet Weight
|
5 kg
|
|
|
|
|||
|
Service Access
|
Front & Back
|
|
|
|
|||
|
Refresh Rate (HZ)
|
1920
|
|
|
|
|||
|
Viewing Angle (H/V)
|
160/160
|
|
|
|
|||
|
IP Rate
|
IP24
|
|
|
|
|||
|
Operation Temperature
|
-40° 〜45°
|
|
|
|
|||
|
Input Voltage (AC)
|
100V or 240V
|
|
|
|
|||
Payment & Delivery
About Us
FAQ
1.Payment Terms?
30% T/T Deposit before production, 70% balance before shipment.
2.Production Time?
3-5 days for 100-500 piece, 7 days around for 500-1000pcs.
3. If required Sample?
Samples can be ready in 3 days around.
4.Shipping cost?
Samples Freight are quoted based on actual weight by seaway or airway.
5.Available FOB port?
Shenzhen, Zhongshan or Guangzhou.
6.Any Discounts?
Discounts are offered based on order quantities.
30% T/T Deposit before production, 70% balance before shipment.
2.Production Time?
3-5 days for 100-500 piece, 7 days around for 500-1000pcs.
3. If required Sample?
Samples can be ready in 3 days around.
4.Shipping cost?
Samples Freight are quoted based on actual weight by seaway or airway.
5.Available FOB port?
Shenzhen, Zhongshan or Guangzhou.
6.Any Discounts?
Discounts are offered based on order quantities.
