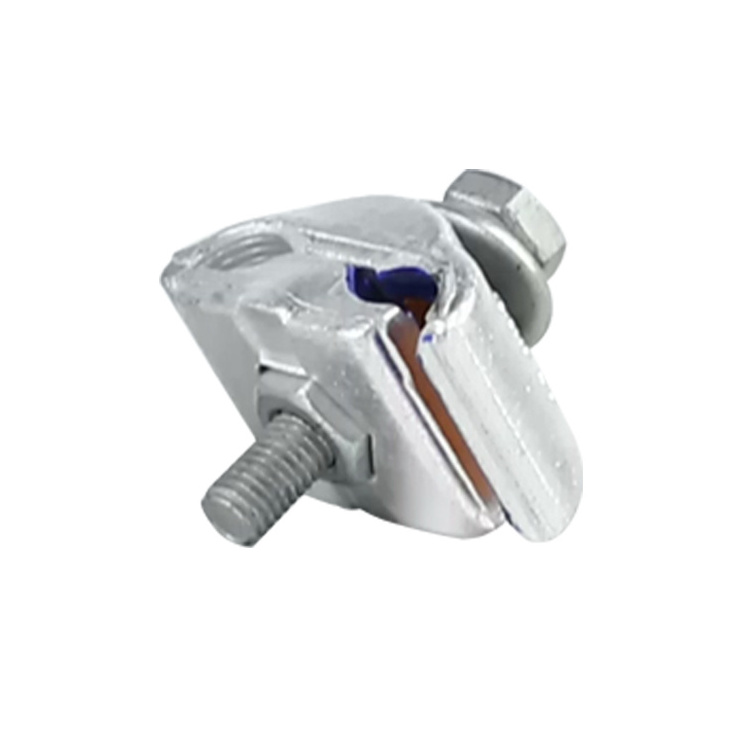

CAPG-A1 Adjustable Copper Aluminium Bolts Type Bimetallic Parallel Groove PG Clamp

Description

CAPG-A1 Adjustable Copper Aluminium Bolts Type Bimetallic Parallel Groove PG Clamp

Feature

Pressure pad ensures pressure along the clamp evenly, Parallel groove clamp has high   mechanical pullout strength and good electrical contact.

Material

Connector bodies made of corrosion resistant, high strength aluminum alloy 99.5 with hot   forged bimetallic sheet.
Bolts: DIN 933, Grade 8.8, dacromet plated; Nut: DIN934, dacromet plated, pressed into   lower part of PG clamp Pressure pad: aluminum alloy; Spring washer: DIN127, steel
Spring washers: Steel, DIN6796 corrosion-protected, dacromet plated
Stainless steel bolts and nuts are available according to the firm order.

Type and Size

General type and size or according to customer's drawing or   sample

Application

Suitable to connect two parallel bare conductors. Conductors   can be aluminum alloy or   aluminum steel reinforced and copper conductor.

Cu 10-95 mm² , Al 25-150 mm²

Cu 10-95 MM, AL 16-150 MM

Cu 10-95 mm² , Al 25-150 mm²

Cu 10-95 MM, AL 16-150 MM

Cu 25-185 mm² , Al 25-150 mm²

CU 16-185 MM, AL 35-240 MM,

CU 16-185 MM, AL 25-200 MM

Cu 10-95 mm² , Al 25-150 mm²

CU 10-95 MM, AL 25-150 MM
