Quick Details
-
Weight:
-
6700 KG
-
Product name:
-
horizontal directional drilling rig
-
Application:
-
Construction
-
Maximum torque of power head:
-
5000N.n
-
Power head speed:
-
0-180r/min
-
Power head running speed:
-
30m/min
-
Drill pipe diameter:
-
60mm
-
Angle of entry:
-
10-23°
-
Maximum reaming diameter:
-
800mm
-
After-sales Service Provided:
-
Field Installation,online
-
Feature:
-
Geological Coring Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
5700*1820*2400mn
-
Weight:
-
6700 KG
-
Product name:
-
horizontal directional drilling rig
-
Application:
-
Construction
-
Maximum torque of power head:
-
5000N.n
-
Power head speed:
-
0-180r/min
-
Power head running speed:
-
30m/min
-
Drill pipe diameter:
-
60mm
-
Angle of entry:
-
10-23°
-
Maximum reaming diameter:
-
800mm
-
After-sales Service Provided:
-
Field Installation,online
-
Feature:
-
Geological Coring Machine
High Performance Horizontal Directional Drill Machine Rig
Product Description

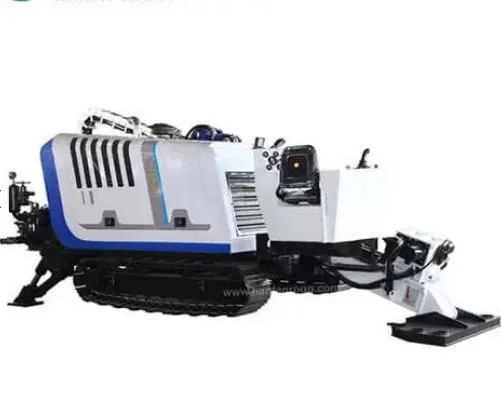

HDD150A Hdd Machine China Horizontal Directional Drilling Machine.
Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe.
Performance Characteristics
1. Pluralities of advanced control technologies are adopted, including the PLC control, electro-hydraulic proportion control, load sensitive control, etc.
2. The pipe automatic disassembly and assembly device can improve the working efficiency, relieves the labor intensity and manual error operation of the operators, and reduces the construction personnel and the construction cost.
3. Automatic anchor: The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate.
4. The engine has the turbine torque increment characteristic, which can instantly increase the power to ensure the drilling power when coming across the complex geology.
5. The dual-speed spindle drive can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.
Horizontal Directional Drills are mainly used in the trenchless piping construction and replacement of the underground pipe.
The Horizontal Directional Drills have the advantages of advanced performance, high efficiency and comfortable operation.
They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system,crude oil industry.
They are the ideal machines for the construction of the water piping, gas piping, electricity, telecommunication, heating system,crude oil industry.
Performance Characteristics
1. Pluralities of advanced control technologies are adopted, including the PLC control, electro-hydraulic proportion control, load sensitive control, etc.
2. The pipe automatic disassembly and assembly device can improve the working efficiency, relieves the labor intensity and manual error operation of the operators, and reduces the construction personnel and the construction cost.
3. Automatic anchor: The down and the up of the anchor is driven by hydraulics. The anchor is great in force and is easy and convenient to operate.
4. The engine has the turbine torque increment characteristic, which can instantly increase the power to ensure the drilling power when coming across the complex geology.
5. The dual-speed spindle drive can speed up to slide with 2 times of speed to reduce the auxiliary time and improve the working efficiency when returning and disassembling the drilling rod with empty loads.
Specification
|
Model
|
HDD150A
|
HDD180
|
HDD280
|
HDD320
|
HDD320A
|
|
Engine rated power
|
100KW
|
97KW
|
160KW
|
140KW/160KW
|
160KW
|
|
Push and pull
|
Cylinder
|
Motor
|
Motor
|
Cylinder
|
Motor
|
|
Maximum drag/feed force
|
160/100KN
|
180/180KN
|
280/280KN
|
320/320KN
|
320/320KN
|
|
Maximum torque of power head
|
5000N.n
|
6000N.n
|
10000N.n
|
12000N.n
|
12000N.n
|
|
Power head speed
|
0-180r/min
|
0-140r/min
|
0-120r/min
|
0-140r/min
|
0-140r/min
|
|
Moving speed of power head
|
30m/min
|
20m/min
|
20m/min
|
20m/min
|
20m/min
|
|
Maximum reaming hole diameter
|
Φ600mm
|
Φ600mm
|
Φ750mm
|
Φ800mm
|
Φ800mm
|
|
Drill rod length (single)
|
3m
|
3m
|
3m
|
3m
|
3m
|
|
Drill pipe diameter
|
Φ60mm
|
Φ60mm
|
Φ73mm
|
Φ73mm
|
Φ73mm
|
|
Angle of entry
|
10-23°
|
10-22°
|
10-23°
|
10-20°
|
10-20°
|
|
Maximum mud flow
|
160L/min
|
250L/min
|
320L/min
|
320L/min
|
320L/min
|
|
Maximum mud pressure
|
100bar
|
80bar
|
80bar
|
80bar
|
80bar
|
|
Overall quality
|
6700kg
|
8500kg
|
12500kg
|
11500kg
|
11200kg
|
|
Dimensions
|
5.7*1.82*2.4m
|
6.4*2.27*2.34m
|
6.4*2.27*2.34m
|
6.4*2.27*2.34m
|
7.6*2.2*2.45m
|
Feature
1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower
1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.
3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower
Packing & Delivery
1. Packaging
Packed by standard import & export wooden cases or carton boxes.
2. Shipping
By logistics; by automobile; by train; by shipping; by air etc.
Packed by standard import & export wooden cases or carton boxes.
2. Shipping
By logistics; by automobile; by train; by shipping; by air etc.
