Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-400WSD
-
Color Temperature(CCT):
-
6500k, warm white, natural white, pure white, cold white
-
Beam Angle(°):
-
60/90/60*150°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140, 140 high intensity flood light
-
Lamp Luminous Flux(lm):
-
48000, 48000 stadium lights 600 watts
-
Working Lifetime(Hour):
-
50000
-
Color Rendering Index(Ra):
-
80
-
Working Time (hours):
-
50000
-
Power Driver:
-
Meanwell refletor led 1000w
-
Dimming Function:
-
1-10V, PWM, DALI dimmable led flood lamp
-
Replacement:
-
1000w metal halide light/ halogen light
-
Beam angle:
-
60/90/60*150° parking lot led light 400watt
-
LED Light Source:
-
140lm/w 3030 led chips 1000w metal halide floodlight for outdoor use
Quick Details
-
Warranty(Year):
-
5-Year
-
Lighting solutions service:
-
Lighting and circuitry design, DIALux evo layout, LitePro DLX layout, Project Installation
-
Control Mode:
-
Switch Control, Sensor control
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Rayborn
-
Model Number:
-
RB-FLL-400WSD
-
Color Temperature(CCT):
-
6500k, warm white, natural white, pure white, cold white
-
Beam Angle(°):
-
60/90/60*150°
-
CRI (Ra>):
-
80
-
Input Voltage(V):
-
AC100-277V
-
Lamp Luminous Efficiency(lm/w):
-
140, 140 high intensity flood light
-
Lamp Luminous Flux(lm):
-
48000, 48000 stadium lights 600 watts
-
Working Lifetime(Hour):
-
50000
-
Color Rendering Index(Ra):
-
80
-
Working Time (hours):
-
50000
-
Power Driver:
-
Meanwell refletor led 1000w
-
Dimming Function:
-
1-10V, PWM, DALI dimmable led flood lamp
-
Replacement:
-
1000w metal halide light/ halogen light
-
Beam angle:
-
60/90/60*150° parking lot led light 400watt
-
LED Light Source:
-
140lm/w 3030 led chips 1000w metal halide floodlight for outdoor use
Features of led flood light for football field, tennis court, padel court, golf course, horse riding, parking lot, plaza, etc..
1. 50/100/150/200/250/300/400/500w
2. AC100-277V
3. 5 years warranty
4. CE RoHS SAA C-tik LVD FCC certificated
New Hot Sale LED flood light 500W/400W/300W LED Stadium lights Outdoor Lamp
| 400W LED Floodlight Main Technical Parameters | |||
| Item No.: | RB-FLL-400WSD | ||
| Input Voltage: | AC 100-277V | ||
| Freqency Range: | 50Hz~60Hz | ||
| Power Factor: | >0.98 | ||
| Power Efficiency: | >92% | ||
| Lamp Driver | Meanwell *2PCS | ||
| LED Chip: | SMD3030 | ||
| LED Power | 400W | ||
| LED Working Voltage: | DC36 ~42V | ||
| System Consumption: | 405W | ||
| LED Luminous Flux | Warm White | 43000LM | |
| Pure White | 48000LM | ||
| Cool White | 48000LM | ||
| Viewing Angle: | 60/90/60*150° | ||
| Illuminance Uniformity: | >0.6 | ||
| Color Temperature | Warm White | 3000K~3500K | |
| Pure White | 5000K~5500K | ||
| Cool White | 6000K~6500K | ||
| Color Rendering Index | Ra>80 | ||
| Light Distribution: | LED points visible | ||
| Light Design: | LED+The secondary light distribution lens | ||
| LED Junction Temperature: | ≤115℃ | ||
| Working Temperature: | –35℃~55℃ | ||
| IP Grade: | IP65 | ||
| Working Life-span: | 50000 H | ||
| Power Line: | 1.0 mm2 three line | ||
| Connect Wire | Brown | L | |
| Blue | N | ||
| Yellow / Green | G | ||
| The color of the lamp shell | Black | ||
| Warranty | 5 years | ||
| Size: | 598*373*130mm | ||

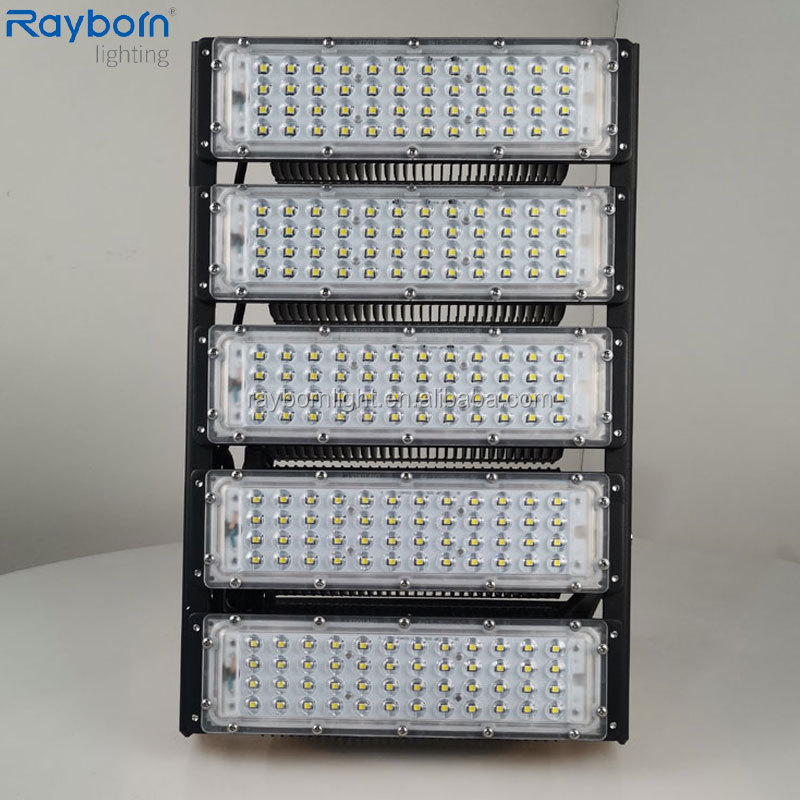

Images of 400w led flood light
LED Flood Light Features
LED Chip
:
3030
LED Chips which is one of the most famous Brand in chips field, high efficiency high lumuns and long lifespan, high quality.
Power Suppl: Rayborn
LED flood light use Meanwell approved driver, IP65 and high quality, it improved lights performance. Power efficiency ≥92.
Color temperature:
LED floodlight provide a range of colour temperatures from 3000, 4000 and 6000 Kelvin helping to enhance a building's exterior.
Optics:
Optical assembly: hermetically sealed providing IP65. Great light uniformity: Thanks to the advance LED optical systems the fixture maximize the utilization of light onto the target area, improving the uniformity of light.
Housing:
Finned radiator
aluminum housing electrostatically sprayed with a polyester powder paint finish, following anti-corrosion priming, and oven cured at 180oC.
Cable:
S
ilicon rubber cable for power input. Fasten with screw in the cable gland.
Warranty:
5 y
ears. Free replacement is available during 5 years warranty under normal usaging.
Certification:
FCC CE RoHS LVD approval.
Quality Control:
Rigorous product testing includes high-low temperature tests, waterproof tests, shockproof tests, burn-in testing, tensile test, salt spray test and more to ensure long-term performance.
Angle Adjustable:
Adjustable stainless steel mounting bracket allows you to direct light where you need it.
Strict tests of led flood light
All our LED flood lights will be tested before shipping,so that we can ensure the quality and light performance, such as current and function test, earth connect test, temperature test, light distribution test, vibration test, integrating sphere test, salt spray test, aging test, etc.. Being responsible for our products is being responsible for our customers.
Dimension of 400w led flood light
Illuminance distribution of 400w led flood light
More choices for led flood light
Applications of led flood light
1. Instead of the fluorescent lights indoors
2. School / Universities / Hospital
3. Conference / Meeting room / Show Room
4. Commercial establishments
5. Factories / Offices
6. Super-markets
7. Residential / Institution buildings
8. Government lighting engineering, airport, subway, elevated overpass, billboard stadium,
9. Building external walls landmarks such as the landscape lighting
Warranty and Warranty terms
We offer 5 year guarantee on the condition of the light is used under normal environment and suitable maintenance and storage; any normal using within guarantee, we provide the repair, exchange(the components and parts)or replace the new item for your options. Exceeding the guarantee time, appropriate cost for the material and the labor should be charged.
Packaging details about led floodlight
| Item | Dimension | Carton Size | Gross Weight | Packaging |
| 50w led flood light | 315*93*130mm | 33*22*22cm | 4.9KG | 2PCS/carton |
| 100W led flood light | 315*180*130mm | 35*26*16cm | 4.5KG | 1PCS/carton |
| 150W led flood light | 315*270*130mm | 35*31*16cm | 5.5KG | 1PCS/carton |
| 200W led flood light | 315*373*130mm | 39*35*16cm | 7KG | 1PCS/carton |
| 250W led flood light | 315*463*130mm | 55*35*16cm | 8.9KG | 1PCS/carton |
| 300W led flood light | 598*283*130mm | 64*33*17cm | 10.5KG | 1PCS/carton |
| 400W led flood light | 598*373*130mm | 64*44*19cm | 13KG | 1PCS/carton |
| 500W led flood light | 598*453*130mm | 63*53*17cm | 15KG | 1PCS/carton |
Shipping ways
1. Express: By UPS/DHL/FEDEX/TNT it takes 3- 5 days to arrive the destination.
2. Air cargo: It takes about one week to arrive the destination.
3. Sea shipment: It takes about one month to arrive the destination, depending on your actual requirements
