Quick Details
-
Dimension(L*W*H):
-
65*39*56cm
-
Weight:
-
29 KG
-
Marketing Type:
-
New Product
Quick Details
-
Condition:
-
New
-
Place of Origin:
-
China
-
Voltage:
-
110V/220V
-
Dimension(L*W*H):
-
65*39*56cm
-
Weight:
-
29 KG
-
Marketing Type:
-
New Product
Products Description
Product Details
Temperature Controller
Fan
Water Inlet And Outlet
Parameter Details
CW-3000
CW-5000
CW-5200
|
|
CW-3000
|
|
|
|
Model
|
CW-3000TG
|
CW-3000DG
|
|
|
Voltage
|
AC 1P 220-240V
|
AC 1P 110V
|
|
|
Frequency
|
50/60Hz
|
|
|
|
Current
|
0.4~1A
|
0.4~0.9A
|
|
|
Machine Power
|
0.1kW
|
|
|
|
Radiating Capacity
|
50W/℃
|
|
|
|
Max. lift
|
10M
|
|
|
|
Max. flow
|
10L/min
|
|
|
|
Protection
|
Flow Alarm
|
|
|
|
Tank Capacity
|
9 L
|
|
|
|
Inlet & Outlet
|
OD 10mm Barbed Connector
|
|
|
|
N.W
|
9Kgs
|
8.7Kgs
|
|
|
G.W
|
11Kgs
|
11Kgs
|
|
|
Dimension
|
49 * 27 * 38 cm (L * W * H)
|
|
|
|
Package Dimension
|
55 * 34 * 43 cm (L * W * H)
|
|
|
|
|

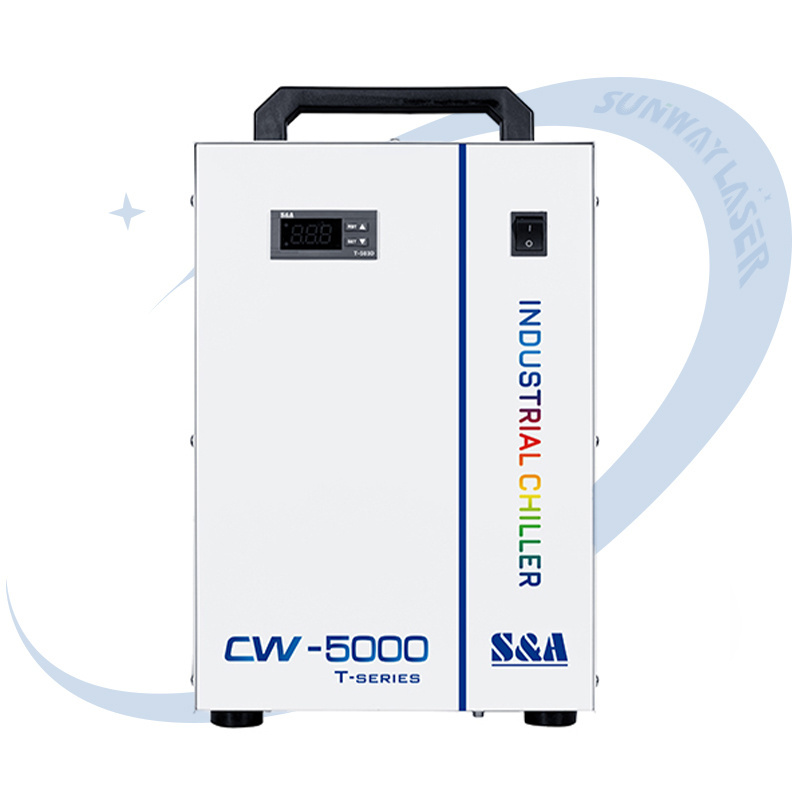

CW-5000
|
|
CW-5200
|
|
|||
|
Model
|
CW-5000TG
|
CW-5000DG
|
CW-5200TH
|
CW-5200DH
|
|||
|
Voltage
|
AC 1P 220-240V
|
AC 1P 110V
|
AC 1P 220-240V
|
AC 1P 110V
|
|||
|
Frequency
|
50/60Hz
|
|
|
|
|||
|
Current
|
0.4~3.1 A
|
0.4~5.3 A
|
0. 5~4.6 A
|
0.5~8.9 A
|
|||
|
Machine Power
|
0.44/0.46 kW
|
0.43 kW
|
0.74/0.82 kW
|
0.77 kW
|
|||
|
Compressor Power
|
0.37/0.39 kW
0.5/0.53 HP
|
0.38 kW
0.51HP
|
0.6/0.62 kW
0.82/0.84 HP
|
0.66 kW
0.9 HP
|
|||
|
Nominal Cooling Capacity
|
3037/3686 Btu/h
0.89/1.08 kW
765/928 Kcal/h
|
3514 Btu/h
1.03 kW
885 Kcal/h
|
6040/7303 Btu/h
1.77/2.14 kW
1521/1839 Kcal/h
|
5699 Btu/h
1.67 kW
1435 Kcal/h
|
|||
|
Refrigerant Charge
|
280g
|
300g
|
370g
|
330g
|
|||
|
Pump Power
|
0.03kW
|
|
0.05kW
|
|
|||
|
Max. lift
|
10M
|
|
12M
|
|
|||
|
Max. flow
|
10L/min
|
|
13L/min
|
|
|||
|
Refrigerant
|
R-134a
|
|
R-407c
|
R-410a
|
|||
|
Precision
|
±0.3℃
|
|
|
|
|||
|
Reducer
|
Capillary
|
|
|
|
|||
|
Tank Capacity
|
6L
|
|
|
|
|||
|
Inlet & outlet
|
OD 10mm Barbed Connector
|
|
|
|
|||
|
N.W
|
21Kgs
|
22Kgs
|
26Kgs
|
23Kgs
|
|||
|
G.W
|
24Kgs
|
25Kgs
|
29Kgs
|
26Kgs
|
|||
|
Dimension
|
58 * 29 * 47 cm (L * W * H)
|
|
58 * 29 * 47 cm (L * W * H)
|
|
|||
|
Package Dimension
|
65 * 36 * 51 cm (L * W * H)
|
|
65 * 39 * 56 cm (L * W * H)
|
|
|||
