Model Number: JM-7105
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
non-asbestos sealing materials
-
Color:
-
Customer Request
-
Certificate:
-
ISO9001/TS16949
-
Standard or Nonstandard:
-
Customizable Acceptable
-
Temperature:
-
-40℃~350℃
-
OEM:
-
Accept OEM
-
Quality:
-
High-quality Material
-
Packing:
-
Customer Resquest
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
JUNMA, JUNMA
-
Model Number:
-
JM-7105
-
Product name:
-
non-asbestos sealing materials
-
Color:
-
Customer Request
-
Certificate:
-
ISO9001/TS16949
-
Standard or Nonstandard:
-
Customizable Acceptable
-
Temperature:
-
-40℃~350℃
-
OEM:
-
Accept OEM
-
Quality:
-
High-quality Material
-
Packing:
-
Customer Resquest
Comparison of similar products
|
Model Number
|
JM-7102
|
JM-7103
|
JM-7104
|
JM-7105
|
||||
|
Density
|
1.6-2g/cm³
|
|
|
|
||||
|
Tensile strength
|
≥6.0MPa
|
≥8.0MPa
|
≥10.0MPa
|
≥13.0MPa
|
||||
|
Compressibility
(34.5MPa)
|
≥7.0%
|
≥7.0%
|
≥12±5.0%
|
≥12±5.0%
|
||||
|
Recovery
|
≥40%
|
≥40%
|
≥40%
|
≥50%
|
||||
|
Temperature range
|
-40℃-200℃
|
-40℃-250℃
|
-40℃-300℃
|
-40℃-350℃
|
||||
|
Fluid Immersion, IRM 903 Oil (150℃×5h) |
|
|
|
|
||||
|
Change in weight
|
≤20%
|
≤20%
|
≤20%
|
≤15%
|
||||
|
Change in thinkness
|
≤15%
|
≤15%
|
≤15%
|
≤10%
|
||||
|
Fluid Immersion, Fuel B (21-30 ℃ ×5h)
|
|
|
|
|
||||
|
Change in weight
|
≤20%
|
≤20%
|
≤20%
|
≤20%
|
||||
|
Change in thinkness
|
≤15%
|
≤15%
|
≤15%
|
≤15%
|
||||

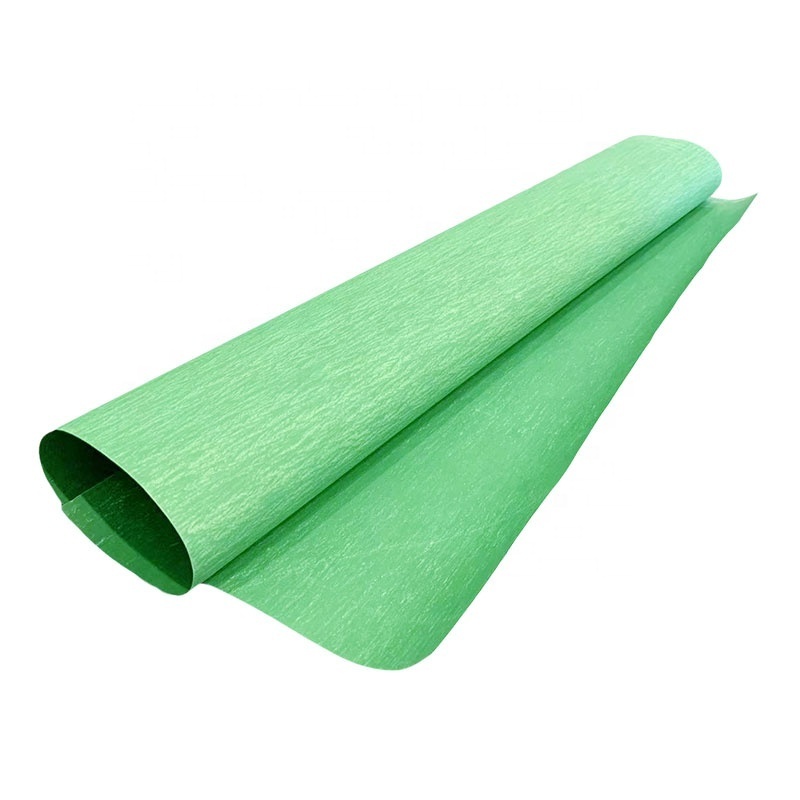

Non-asbestos Compressed Sheet Materials
Product Description:
JM-7105 is a non-asbestos high-end compressed sheet product, designed for sealing applications where high torques and exceptional sealbility is needed, It is comprised of environmental friendly aramid fiber, nitrile rubber binder, and surface treated inorganic fillers.
JM-7105 has balanced mechanical properties and very-good crush resistance. r
ecommend for applications where exceptional sealability and good torque retention are needed.
Model Number : JM-7105
The application temperature range of this product is -40℃-350℃.
Product Gauge: 0.5-3.0 mm. (Other thickness can be made uponrequested)
Product Features:
--------------------------------------------
1.Tightly integrated structure with excellent sealing characteristics.
2.Very good physical properties of tensile strength, compressibility, recovery and creep relaxation.
3.Specially designed to obtain good durability and chemical resistance, including oil, antifreeze and fuel.
4.Uniform and smooth surface structure with good conformability to seal rough and uneven flange
surfaces.
5.Products can be designed to meet customers' demands.
Areas of Application
Automobiles, Motorcycles, Small Engines for general applications, Compressors
(air compressors and
refrigeration compressors), Agriculture Equipment,
Construction Equipment, Pipe Connection in Petroleum Chemical Industries,
Ship Building, parts assembly kits and aftermarket applications.
