Quick Details
-
Model Number:
-
BKE Series
-
Place of Origin:
-
Shandong, China
-
Sample:
-
Serum, plasma, whole blood,cerebrospinal fluid and dilute urine
-
Measuring Speed:
-
≤25s
-
Analysis Method:
-
lon selective electrode(ISE)
-
Sample Volume:
-
60~150ul
-
Sample Position:
-
30 sample positions, 5 emergency positions,2 QC positions
-
Injection Mode:
-
Manual or automatic injection can be selected
-
Storage:
-
Up to 50,000 test results
-
Printer:
-
Build-in thermal printer
-
Display:
-
7-inch high-definition touch screen
-
Calibration:
-
Automatic and Manual calibration
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Brand Name:
-
OLABO
-
Model Number:
-
BKE Series
-
Place of Origin:
-
Shandong, China
-
Sample:
-
Serum, plasma, whole blood,cerebrospinal fluid and dilute urine
-
Measuring Speed:
-
≤25s
-
Analysis Method:
-
lon selective electrode(ISE)
-
Sample Volume:
-
60~150ul
-
Sample Position:
-
30 sample positions, 5 emergency positions,2 QC positions
-
Injection Mode:
-
Manual or automatic injection can be selected
-
Storage:
-
Up to 50,000 test results
-
Printer:
-
Build-in thermal printer
-
Display:
-
7-inch high-definition touch screen
-
Calibration:
-
Automatic and Manual calibration
Products Description
Introduction

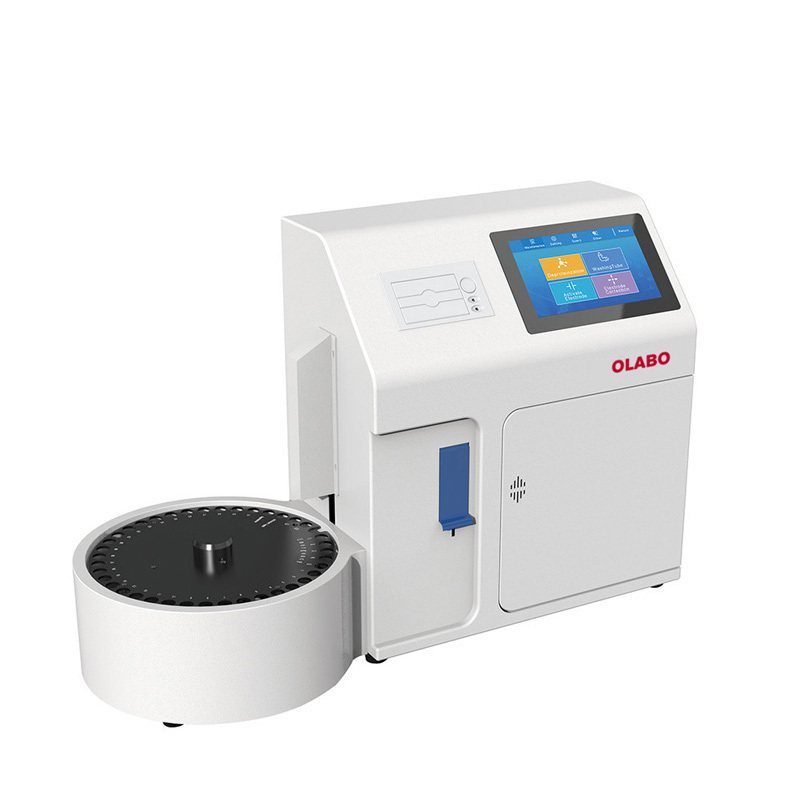

BKE series electrolyte analyzer adopts advanced ion selective electrode measurement technology,which can directly measure the concentration of K+*,Na+,Cl-, Ca2+ and pH in serum, plasma, whole blood, cerebrospinal fluid and diluted urine.
It is a fast, accurate, convenient and practical clinical testing instrument
Features
* The software supports automatic potential tracking correction to ensure stable performance
* Automatic monitoring and filtering of tiny air bubbles to ensure measurement accuracy.
* Wave flushing and pipeline flushing can avoid blockage and cross-contamination.
* Power-off protection,can protect data storagethe result can be stored up to5000
* Lowconsumption,effectivelvreducina the costofconsumables
* 7-inch high-definition touch screencomprehensive content display
* With the function of automatic fault alarm and eliminationimprove work efficiency.
Specification
|
Model
|
|
|
BKE Series
|
|
|
|
|
|
|||||||
|
Sample
|
|
|
Serum, plasma, whole blood,cerebrospinal fluid and dilute urine
|
|
|
|
|
|
|||||||
|
Measuring Speed
|
|
|
≤25s
|
|
|
|
|
|
|||||||
|
Analysis Method
|
|
|
lon selective electrode(ISE)
|
|
|
|
|
|
|||||||
|
Sample Volume
|
|
|
60~150ul
|
|
|
|
|
|
|||||||
|
Sample Position
|
|
|
30 sample positions, 5 emergency positions,2 QC positions
|
|
|
|
|
|
|||||||
|
Injection Mode
|
|
|
Manual or automatic injection can be selected
|
|
|
|
|
|
|||||||
|
Storage
|
|
|
Up to 50,000 test results
|
|
|
|
|
|
|||||||
|
Printer
|
|
|
Build-in thermal printer
|
|
|
|
|
|
|||||||
|
Interface
|
|
|
RS232 port for LIS
|
|
|
|
|
|
|||||||
|
Display
|
|
|
7-inch high-definition touch screen
|
|
|
|
|
|
|||||||
|
Language
|
|
|
Chinese and English, other languages can be customized
|
|
|
|
|
|
|||||||
|
Calibration
|
|
|
Automatic and Manual calibration
|
|
|
|
|
|
|||||||
|
Other Function
|
|
|
Sample volume detection
|
|
|
|
|
|
|||||||
|
Power Supply
|
|
|
AC110~240V50/60Hz100W
|
|
|
|
|
|
|||||||
|
Temperature
|
|
|
10~30℃
|
|
|
|
|
|
|||||||
|
Relative Humidity
|
|
|
≤ 80 %
|
|
|
|
|
|
|||||||
|
Atmospheric Pressure
|
|
|
86~106 kPa
|
|
|
|
|
|
|||||||
|
Model
|
|
BKE-A
|
BKE-B
|
BKE-C
|
|
BKE-D
|
|
|
||||
|
Test Items
|
|
K+, Na+, Cl-
|
K+, Na+, Cl-
|
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH
|
|
K+, Na+, Cl-, iCa2+, nCa2+, TCa2+, pH
|
|
|
||||
|
Sample Tray
|
|
No
|
Yes
|
No
|
|
Yes
|
|
|
||||
|
External Size(W*D*H)
|
|
390*200*434mm
|
660*276*434mm
|
390*200*434mm
|
|
660*276*434mm
|
|
|
||||
|
Net Weight
|
|
9.25kg
|
11.85kg
|
9.25kg
|
|
11.85kg
|
|
|
||||
|
Package Size(W*D*H)
|
|
540*420*520mm
|
540*420*705mm
|
540*420*520mm
|
|
540*420*705mm
|
|
|
||||
|
Gross Weight
|
|
9.9kg
|
12.5kg
|
9.9kg
|
|
12.5kg
|
|
|
||||
|
Items
|
Measuring Range
|
|
Resolution
|
|
|
|||
|
K+
|
0.5-20.0mmol/L
|
|
0.01 mmol/L
|
|
|
|||
|
Na+
|
15-200mmol/L
|
|
0.1 mmol/L
|
|
|
|||
|
Cl-
|
15-200mmol/L
|
|
0.1 mmol/L
|
|
|
|||
|
Ca2+
|
0.1-6.0mmol/L
|
|
0.01 mmol/L
|
|
|
|||
|
pH
|
0.1-6.0mmol/L
|
|
0.01 pH
|
|
|
|||
