Quick Details
-
Application:
-
residential building, Tankless water heater/ Gas boiler/Gas water heater/ Gas stove
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RM
-
Model Number:
-
RMSS70/100
-
Product name:
-
Gas boiler stainless steel chimney pipe 75mm and 100mm
-
Material:
-
Stainless steel 201 304
-
Diameter:
-
75/100 mm
-
Pipe Length:
-
850 mm 900 mm 1000 mm
-
Surface finish:
-
Polished
-
Material thickness:
-
0.30 MM 0.5 mm
-
Relative product:
-
chimney flue kit, extension pipe, chimney elbow, adapter, check valve
-
Advantage:
-
Factory price and fast delivery
-
Usage:
-
venting flue, smoking pipe
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support
-
Project Solution Capability:
-
graphic design, 3D model design
-
Application:
-
residential building, Tankless water heater/ Gas boiler/Gas water heater/ Gas stove
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RM
-
Model Number:
-
RMSS70/100
-
Product name:
-
Gas boiler stainless steel chimney pipe 75mm and 100mm
-
Material:
-
Stainless steel 201 304
-
Diameter:
-
75/100 mm
-
Pipe Length:
-
850 mm 900 mm 1000 mm
-
Surface finish:
-
Polished
-
Material thickness:
-
0.30 MM 0.5 mm
-
Relative product:
-
chimney flue kit, extension pipe, chimney elbow, adapter, check valve
-
Advantage:
-
Factory price and fast delivery
-
Usage:
-
venting flue, smoking pipe
Product Description

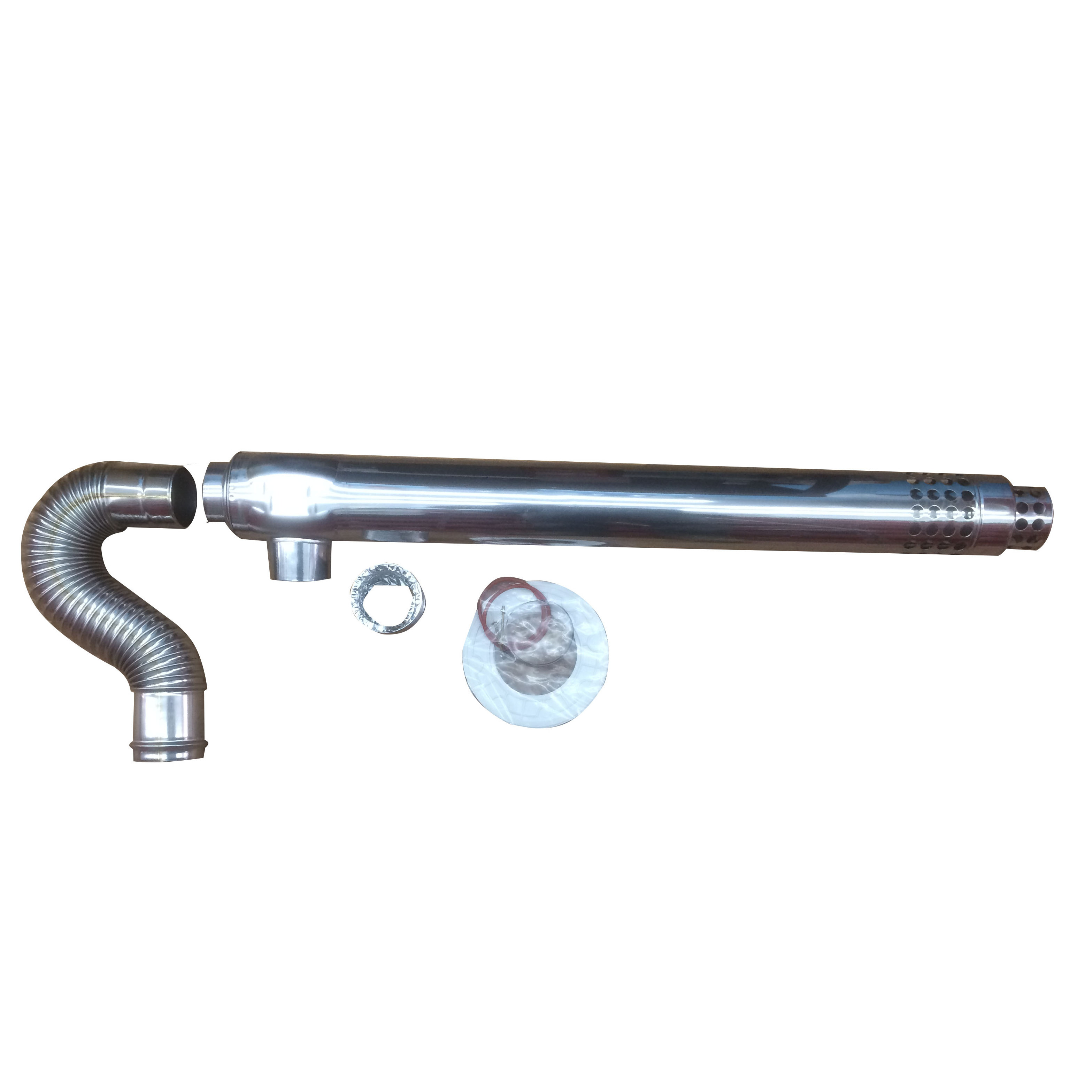

Residential building gas boiler chimney pipe stainless steel 201 or 304 75mm an d 100mm
Chimney elbow /flue elbow are supplied in 45 degree and 90 degree. They are used to change the chimney pipe direction in the procedure of installation. The “coaxial system” is made up of an internal smoke flue for venting flue gases and an external (support) flue which can be used to draw combustion air into the appliance or as a simple free coaxial ventilation section. It was
widely applied on gas boiler, water heater, gas stove etc heating appliance. Length are available at 500 mm 1000 mm for popular size. 1500 mm and 2000 mm as request. Diameter:60/100 mm. 75/100 mm 80/110 mm etc. Feature: Snap lock connection. Easy installation. Gasket for 100% sealing.
Chimney elbow /flue elbow are supplied in 45 degree and 90 degree. They are used to change the chimney pipe direction in the procedure of installation. The “coaxial system” is made up of an internal smoke flue for venting flue gases and an external (support) flue which can be used to draw combustion air into the appliance or as a simple free coaxial ventilation section. It was
widely applied on gas boiler, water heater, gas stove etc heating appliance. Length are available at 500 mm 1000 mm for popular size. 1500 mm and 2000 mm as request. Diameter:60/100 mm. 75/100 mm 80/110 mm etc. Feature: Snap lock connection. Easy installation. Gasket for 100% sealing.
Specification
|
Application
|
Gas boiler, water heater, gas stove
|
|
Design Style
|
Modern
|
|
Place of Origin
|
China
|
|
Product name
|
Gas stove 75/100 mm stainless steel venting flue standard flue kit
|
|
Material
|
Stainless steel 201 304
|
|
Diameter
|
75/100 mm
|
|
Pipe Length
|
850 mm 900 mm 1000 mm
|
|
Application
|
Tankless water heater/ Gas boiler/Gas water heater/ Gas stove
|
|
Surface finish
|
Polished
|
|
Material thickness
|
0.30 MM 0.5 mm
|
|
Relative product
|
chimney flue kit, extension pipe, chimney elbow, adapter, check valve
|
|
Advantage
|
Factory price and fast delivery
|
|
Usage
|
venting flue, smoking pipe
|
Stainless steel single-wall balanced exhaust flue
Single-wall venting flues made of superior stainless steel 201 or SS 304. Flue Diameter have 50 mm 60 mm 70 mm 76 mm 80 mm 100 mm for choice. Flue Elbow 90 degree and 45 degree, take role of changing chimney direction as required; Extension pipe 250 mm /300 mm /325 mm /500 mm /800 mm /1000 mm. (Length can be customized) satisfy customer's demand accordingly. Except above popular items, we also supply adapter, check valve, termination pipe, terminal cap, gasket etc.
Application: Electric t
ankless water heater/gas boiler/stove
Packing & Delivery
Master carton or separate carton
Lead time: in 5-7 days for sample order. Mass production around 15-20 days against the deposit.
