Quick Details
-
Model Number:
-

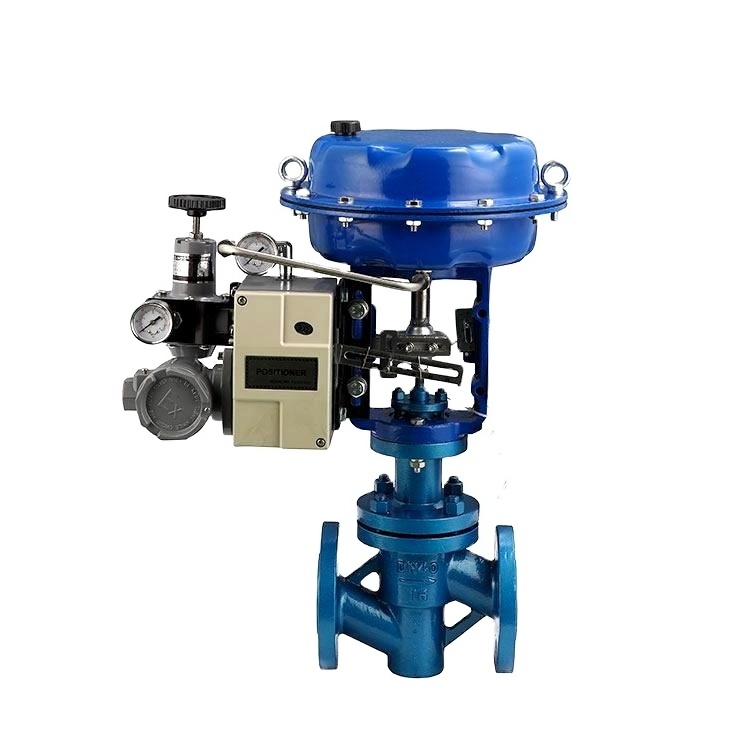

Pneumatic fluorine lined control valve
-
Brand Name:
-
COVNA
-
Type:
-
Pneumatic Steam Control Valve, Globe Valves, control valve
-
Body material:
-
SS304, WCB
-
Air Supply Pressure:
-
0.14, 0.16, 0.28, 0.4MPa
-
Working Pressure:
-
1.6, 4.0, 6.4MPa
-
Size:
-
DN20~DN300
-
Temperature:
-
-30℃~+70℃
-
Actuator Type:
-
Multi-Spring diaphragm type
-
Medium:
-
Air, Oil, Gas, Steam, etc
-
Connection:
-
Flanged
Quick Details
-
Port Size:
-
3/4"~12"
-
Warranty:
-
1 year, 12 Months
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
Pneumatic fluorine lined control valve
-
Brand Name:
-
COVNA
-
Type:
-
Pneumatic Steam Control Valve, Globe Valves, control valve
-
Body material:
-
SS304, WCB
-
Air Supply Pressure:
-
0.14, 0.16, 0.28, 0.4MPa
-
Working Pressure:
-
1.6, 4.0, 6.4MPa
-
Size:
-
DN20~DN300
-
Temperature:
-
-30℃~+70℃
-
Actuator Type:
-
Multi-Spring diaphragm type
-
Medium:
-
Air, Oil, Gas, Steam, etc
-
Connection:
-
Flanged
Product Description
What is Pneumatic fluorine lined control valve?
Pneumatic fluorine (PTFE, FEP, PFA) lined control valve is composed of pneumatic diaphragm actuator,straight through single seat fluoride (PTFE,FEP,PFA) Lined structure.Pneumatic fluorine lined control valve contacted with the corrosive medium adopts the corrosion-resistant, anti-aging PTFE, PEP, PRA, the high pressure lining fluorine plastic process.Pneumatic fluoride (PTFE, FEP, PFA) lined control valve is capable of controlling the flow of acid, alkali, aqua wang and other highly corrosive media, toxic volatilegas and liquid media.Therefore, Pneumatic fluoride (PTFE, FEP, PFA) lined control valve is widely used in chemical, metallurgy,medicine and other industries.
Advantage of COVNA Pneumatic Control Valve:
●
Good corrosion resistance: the inner cavity of Pneumatic fluorine lined control valve body, core, seat are lined with 3mm thick fluorine (PTFE, PEP, PRA) , which can withstand strong corrosive fluid.
● Good sealing performance: double sealing with PTFE bellows and packing.
● The leakage quantity is little, because the Pneumatic fluorine lined control valve core and seat are soft seal, leakage was far below the national Ⅳ level standard.
● High adjustment accuracy: Pneumatic fluorine lined control valve adopts precise and small pneumatic and electric actuators, small in size and light in weight.
● Good sealing performance: double sealing with PTFE bellows and packing.
● The leakage quantity is little, because the Pneumatic fluorine lined control valve core and seat are soft seal, leakage was far below the national Ⅳ level standard.
● High adjustment accuracy: Pneumatic fluorine lined control valve adopts precise and small pneumatic and electric actuators, small in size and light in weight.
|
Item
|
COVNA Pneumatic Flange Globe Valve Pneumatic Fluorine Lined Control Valve with Positioner
|
|
|
||
|
Acting Mode
|
Multi-Spring diaphragm type
|
|
|
||
|
Working Pressure
|
1.6, 4.0, 6.4MPa
|
|
|
||
|
Air Supply Pressure
|
0.14, 0.16, 0.28, 0.4MPa
|
|
|
||
|
Lifespan
|
1,000,000 (1 Million) Times
|
|
|
||
|
Temperature
|
-30°C~70°C
|
|
|
||
|
Control valve stem
|
2Cr13/17-4PH/304/316/316L
|
|
|
||
|
Body Material
|
WCB/CF8/CF8M/CF3M
|
|
|
||
|
Lined Material
|
PTFE, FEP, PFA
|
|
|
||
|
Control valve stem
|
2Cr13/17-4PH/304/316/316L
|
|
|
||
|
End Connection
|
Flanged
|
|
|
||
|
Flange Dimension
|
According to to IEC 60534
|
|
|
||
|
Applicable Media
|
Control of Water, Air, Gas, Oil, Liquid, Steam, etc
|
|
|
||
|
Optional Accessories
|
Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
|
|
|
||
|
Application
|
Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries
|
|
|
||
Dimension:
Pneumatic Fluorine Lined Control Valve Performance:
|
Flow characteristic
|
|
Flow characteristic
|
|
|
|||
|
Allowable range
|
|
30: 1
|
|
|
|||
|
Rated Cv value
|
|
Percentage CV6.3~400 ，linear CV6.9~440
|
|
|
|||
|
Allowable leakage
|
|
Soft seal: VI grade（foam grade）
Leakage standard: GB/T 4213 |
|
|
|||
|
Intrinsic error(%)
|
|
±1.5
|
|
|
|||
|
Return difference(%)
|
|
≤1.5
|
|
|
|||
|
Dead zone(%)
|
|
≤0.6
|
|
|
|||
|
Difference from beginning to end point(%)
|
|
±2.5
|
|
|
|||
|
Rated travel difference(%)
|
|
≤2.5
|
|
|
|||
Weight table of Pneumatic diaphragm regulating valve:
Electric Actuator
Multi-spring diaphragm actuator in direct action & reverse action. NBR rubber reinforcing polyester fabric diaphragm material. Spring range 20~100KPa, 40~200KPa, 80~240KPa. Supply pressure from 0.4MPa to 0.5MPa.
|
Control Valve Type\ Method
|
Pneumatic diaphragm actuator
|
|
|
||
|
|
ZJHP～ZJHM
|
|
|
||
|
|
Multi-spring type
|
|
|
||
|
Usage
|
Regulating type, ON-OFF type
|
|
|
||
|
Air supply pressure or Power supply voltage
|
Air supply pressure (Spring range)
140（20～100）Kpa G 240 (40～200) Kpa G 280 (80～240) Kpa G |
|
|
||
|
Connector
|
Air pipe connector: RC1/4
|
|
|
||
|
Direct action
|
Pressure increase, stem descend, valve close.
|
|
|
||
|
Reaction
|
Pressure increase, stem ascend, valve open.
|
|
|
||
|
Input signal
|
40～20mA.DC（with positioner）
|
|
|
||
|
Lag
|
≤1%FS（with positioner）
|
|
|
||
|
Linear type
|
2%FS（with positioner）
|
|
|
||
|
Environmental temperature
|
-10℃～+70℃
|
|
|
||
|
Pneumatic control valve
Accessories |
E/P, P/P valve positioner, filter regulator, valve converter, solenoid valve, limited switch
Non-standard accessories, need special customized notes. |
|
|
||
Technical Parameter of Valve Body
1. Major performance indexes shall be as shown in below table
2. Testing shall be conducted according to the specification of GB/T4213-92
2. Testing shall be conducted according to the specification of GB/T4213-92
|
Serial No.
|
Technical Performance
|
Without Positioner
|
With Positioner
|
|
|
1
|
Basic Error
|
≤±5%
|
≤±1%
|
|
|
2
|
Return Difference
|
≤3%
|
≤1%
|
|
|
3
|
Dead Zone
|
≤3%
|
≤0.4%
|
|
|
4
|
Leakage
|
ZJHP Type:≤1X10-4Rated FlowZJHM Type:≤1X10-3 Rated Flow
|
|
|
|
5
|
Rated Flow Coefficient
|
≤±10%
|
|
|
|
6
|
Inherent Flow Characteristic
|
Slope±30%
|
|
|
Available in Stainless Steel 304, Stainless Steel 316, Carbon Steel, Cr-Mo Steel
Also available in Cast Iron for your choice
