Quick Details
-
IC cards:
-
ISO7816
-
RFID cards:
-
ISO14443A
-
Magnetic cards:
-
Bank Card EMV Card Credit Card
-
Interface:
-
RS232
-
Card capacity:
-
130pcs
-
Extension card stacker:
-
170pcs
-
Power Supply:
-
DC 24V+/-5%
-
Error card bin:
-
25pcs
-
Application:
-
parking lot management system, expressway toll gate
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Syncotek
-
Product name:
-
Mini Arcade Card Dispenser
-
IC cards:
-
ISO7816
-
RFID cards:
-
ISO14443A
-
Magnetic cards:
-
Bank Card EMV Card Credit Card
-
Interface:
-
RS232
-
Card capacity:
-
130pcs
-
Extension card stacker:
-
170pcs
-
Power Supply:
-
DC 24V+/-5%
-
Error card bin:
-
25pcs
-
Application:
-
parking lot management system, expressway toll gate
Payment Kiosks Magnetic Card Dispenser
Prepaid Card Vending Machine

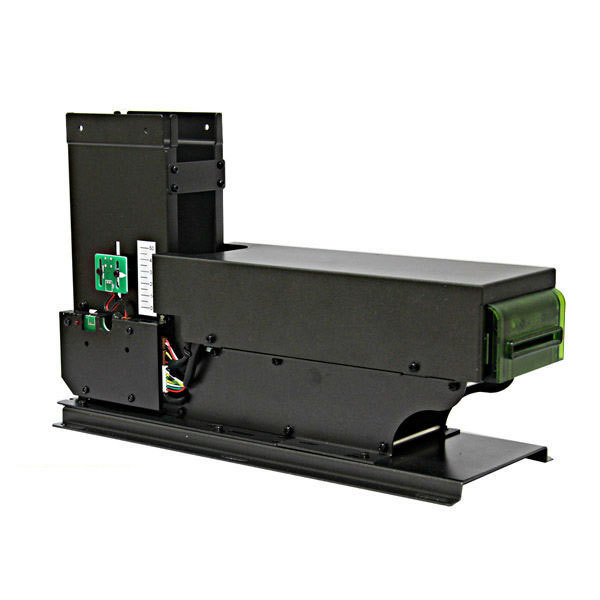

SK-AD6 series card issuing machine is a
3-in-1 card issuing and reading/writing device
,
which supports
ISO14443 RF card and ISO7816 IC card R/W as well as ISO 7810/7811 magnetic card Read
.
Therefore, it is widely used for the self-service terminals for membership card issuing and card issuing in electronic medical sector, transportation sector and bank account opening in VTM machine.
*Supports
ISO7810/7811 magnetic card reading only
*Supports
ISO7816-2 contact IC card reading/writing
*Supports
ISO14443-A Type A/B card reading/writing
*Unique dispensing wheel design: is capable of issuing various embossing cards accurately
*
Convenient and simple card adjustment design: is stable and accurate to dispense cards with various thicknesses
*Compact structure design: effectively saves space for the complete machine
*
Rear card capture box
:
provides convenience for card management
*Simple collection channel design: satisfies user requirement for large collection amount
*
Multiple sensors: are able to judge the card position and indicate the card status
|
Model
|
Magnetic Card IC Card RFID Card Dispenser Issuing Machine
|
|
|
||
|
Support Cards
|
Magnetic cards, Chip cards, IC cards, RFID cards, ISO14443A/B cards
|
|
|
||
|
Interface
|
RS232
|
|
|
||
|
SDK
|
Windows, Linux and Raspberry PI
|
|
|
||
|
Card Stacker Capacity
|
150 pcs (0.76mm standard card)
|
|
|
||
|
Capture Box Capacity
|
25 pcs (0.76mm standard card)
|
|
|
||
|
Magnetic Head Life
|
500,000 passes min.
|
|
|
||
|
IC Contact Life
|
500,000 passes min.
|
|
|
||
|
Issuing Life
|
1,000,000 passes min.
|
|
|
||
|
Power Supply
|
DC24V±5%, 3.0A
|
|
|
||
|
Quiescent Current
|
200mA
|
|
|
||
|
Net Weight
|
Approx. 2.8KG (excluding accessories and package)
|
|
|
||
|
Dimension
|
347L*100W*200H mm (with shutter)
|
|
|
||
Free Demo&SDK:
