Manufacturers Mechanical Latch Type IP67 22mm Self Lock Latching Push Button On Off Switch

FOB Reference Price: Get Latest Price
≥2 Pieces
US $3.5
≥5 Pieces
US $3
≥20 Pieces
US $2.19
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Product Name:
Push Button Switch
Mounting Hole Size:
22mm
Head Type:
Flat head
Operation Type:
Latching
Switch Combination:
1NO1NC
Terminal type:
3 Pin terminals
Enclosure Material:
Stainless Steel
Contact Material:
Silver
Mechanical Life:
40000 Times
Product Type:
On Off Switch

Quick Details

Protection Level:
IP67
Max. Current:
5A
Max. Voltage:
250V
Place of Origin:
Zhejiang, China
Product Name:
Push Button Switch
Mounting Hole Size:
22mm
Head Type:
Flat head
Operation Type:
Latching
Switch Combination:
1NO1NC
Terminal type:
3 Pin terminals
Enclosure Material:
Stainless Steel
Contact Material:
Silver
Mechanical Life:
40000 Times
Product Type:
On Off Switch
Product Details

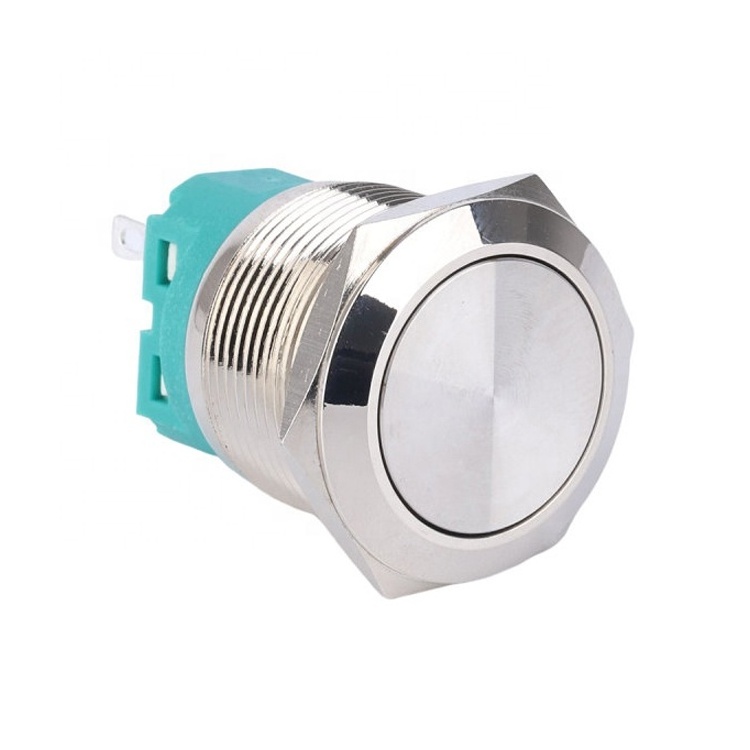

Manufacturers Mechanical Latch Type IP67 22mm Self Lock Latching  Push Button On Off Switch

Latching Type: Push it - ON, push it again – OFF

Mounting Hole Size: Φ22mm, Switch Rating: 5A/250V

Switch Contacts: 1NO1NC, you can use NO to control, press the button to break over. You can also use NC to control, press the button to power off

Features:
Drill hole diameter: Φ22mm (7/8")
Switch rating: 5A/250V

Switch contacts: 1NO1NC
Operation Type: ON OFF Latching
Head shape: Flat Round
Body material: Stainless Steel
Protection level: IP67, IK10

Product Name

Push Button Switch

Model

IB22E-P11Z/S

Mounting Hole

22mm

Operation Type

Latching (Maintain)

Switch Combination

1NO1NC

Actuator Shape

Flat Round Head

Terminal type

3 Pin Terminals

Enclosure Material

Stainless Steel

Delivery Days

1-7 days

Contact Resistance

50 mΩ max

Insulation Resistance

1000MΩ Min

Dielectric Intensity

2000VAC

Operating Temperature

-20°C ~+55°C

Customized symbol, colored housing or Connector

Acceptable and with fast shipping

Accessories

Nut, Rubber Waterproof O-ring

Wiring Harness

Click here HARNESS and choose item No.: IB22E Harness

What You Get

1X Push button switch: 22mm, Latching

Note: If you need Customized actuator color, please inform us by mail, thanks!
