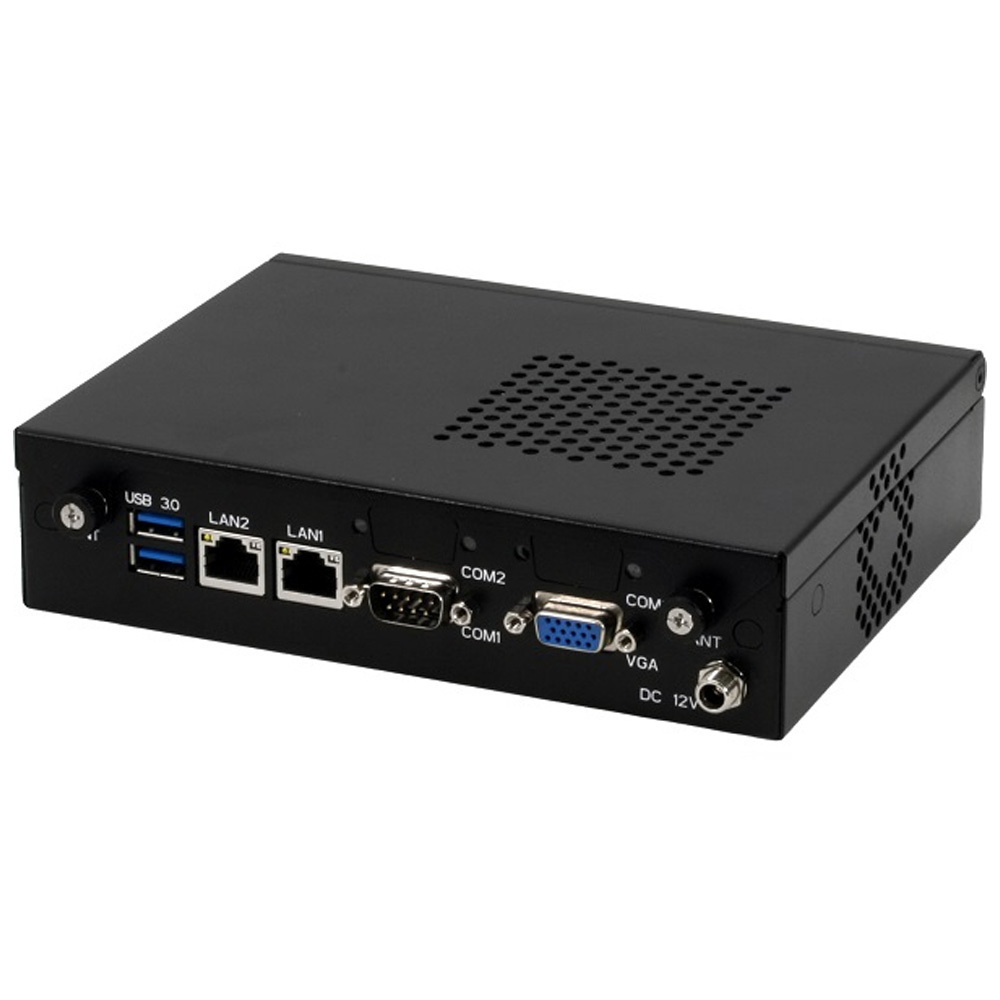

Specifications [GENESYS-APL7]
SYSTEM
FORM FACTOR 3.5" SubCompact Board System
CPU Intel ® Atom™/Celeron®/Pentium® Processor:
Pentium N4200 (4C/4T, 1.10GHz, up to 2.50GHz, TDP 6W)
Celeron N3350 (2C/2T,1.10GHz,up to 2.40GHz, TDP 6W)
CHIPSET Integrated with Intel® SoC
MEMORY TYPE DDR3L up to 1866MHz, SODIMM x 1,up to 8GB,Non-ECC
BIOS UEFI
WAKE ON LAN Yes
WATCHDOG TIMER 255 Levels
SECURITY —
RTC BATTERY Lithium Battery 3V/240mAh
DIMENSION 7.00* x 5.28" x 1.69" (178mm x 134.1mm x 43mm)
OS SUPPORT Windows 10 (64bit)
Linux Ubuntu 21.04.0/Kernel 5.10
POWER
POWER REQUIREMENT +12V
POWER SUPPLY TYPE ATX
CONNECTOR DC Jack Connector
POWER CONSUMPTION Intel® N4200,DDR3L 1600MHz 8GB,1.61A@+12V(Typical)
DISPLAY
CONTROLLER Intel® HD Graphics 500/505
LVDS/EDP —
DISPLAY INTERFACE VGA x 1
MULTIPLE DISPLAY —
AUDIO
CODEC —
AUDIO INTERFACE —
SPEAKER —
EXTERNAL I/O
ETHERNET Realtek RTL8119-CG,10/100/1000Base, RJ-45 x 2
USB USB 3.2 Gen1 x 2
SERIAL PORT COM1 (RS232)
VIDEO VGA x 1
INTERNAL I/O
USB USB2.0 x 2
SERIAL PORT Optional:COM3,COM4(RS232, COM3~COM5 support 5V/12V/RI)
Optional: COM9~COM12
VIDEO —
SATA SATA III x 1
+5V SATA Power Connector x 1
AUDIO —
DIO/GPIO —
SMBUS/I2C I2C/SMBus x1 (Default:SMBus)
TOUCH —
FAN DC Fan x 1 (optional: Smart Fan)
SIM Micro SIM x 1 (Optional)
FRONT PANEL PWR LED, Power Button
OTHERS —
EXPANSION
MINI PCI-E/MSATA Full-size mPCIe x 1
Full-Size mSATA/mPCIe x 1 (Default mSATA, BOM Option: mPCIe)
M.2 —
OTHERS —
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE 32°F ~ 122°F (0°C ~ 50°C)
STORAGE TEMPERATURE -40°F ~ 176°F (-40°C ~ 80°C)
OPERATING HUMIDITY 0% ~ 90% relative humidity, non-condensing
MTBF (HOURS) 126,000
EMC CE/FCC Class A
