Features :
1.mainly used for potato ,carrot,lettuce,leaf vegetable garlic ginger, onion other food and vegetable.
2.made of 304 stainless steel 3.speed is adjusted by the inverter control,adjustable speed.
3.we can customize the different capacity 500-5000kg/h line and design the complete line according to your requirements.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
3000*1100*1600mm
-
Weight:
-
600kg
-
Machinery Function:
-
wash peel dry the garlic
-
Output product name:
-
fruit and vegetable
-
Application:
-
wash quick freeze
-
Function:
-
Multifunctional
-
Feature1:
-
automatic high efficiency
-
Capacity:
-
300-1000kg/h
-
Material:
-
SUS 304 Stainless Steel
-
Washing type:
-
High Pressure Bubble Washing
-
Function 2:
-
dry the garlic and grind into powder
-
Feature2:
-
long service life
-
capacity2:
-
500kg-1000kg/h
-
Heating method:
-
natural gas or steam heated
-
After Warranty Service:
-
Online support, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Turkey, United Kingdom, France, Russia, Thailand, South Africa, Uzbekistan
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
ce
Quick Details
-
Raw material:
-
Water, Corn, Fruit, Vegetables, Milk, Nuts, Soybean
-
Model Number:
-
LJDS 1000, LJDS2000
-
Brand Name:
-
LIJIE
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V
-
Power:
-
2.2kw
-
Dimension(L*W*H):
-
3000*1100*1600mm
-
Weight:
-
600kg
-
Machinery Function:
-
wash peel dry the garlic
-
Output product name:
-
fruit and vegetable
-
Application:
-
wash quick freeze
-
Function:
-
Multifunctional
-
Feature1:
-
automatic high efficiency
-
Capacity:
-
300-1000kg/h
-
Material:
-
SUS 304 Stainless Steel
-
Washing type:
-
High Pressure Bubble Washing
-
Function 2:
-
dry the garlic and grind into powder
-
Feature2:
-
long service life
-
capacity2:
-
500kg-1000kg/h
-
Heating method:
-
natural gas or steam heated
-
After Warranty Service:
-
Online support, Field maintenance and repair service
-
Local Service Location:
-
Egypt, Turkey, United Kingdom, France, Russia, Thailand, South Africa, Uzbekistan
-
After-sales Service Provided:
-
Field maintenance and repair service
-
Certification:
-
ce
Product Description

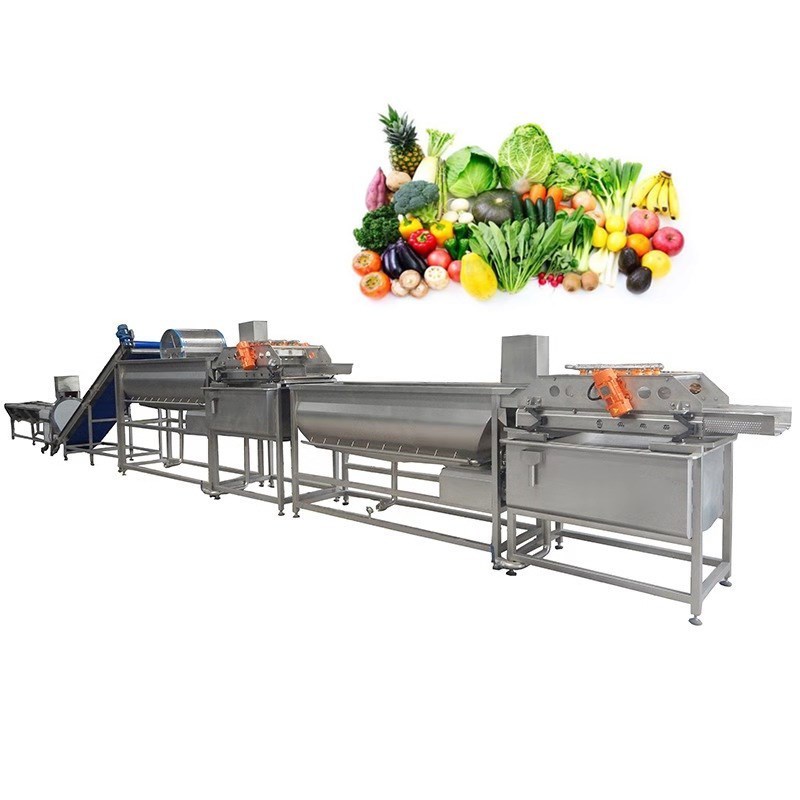

Fresh&Frozen Vegetable fruit Washing Blaching Processing Production Line
Specification
|
No.
|
Description OF Machine
|
Size
|
QTY/set
|
|
1
|
Rolling Sorting machine
|
4000*1200*1000mm
|
1
|
|
2
|
Elevator
|
2500*850*2150mm
|
1
|
|
3
|
Peeling machine
|
3000*1000*1050mm
|
1
|
|
4
|
Elevator
|
2500*700*2200mm
|
1
|
|
5
|
Brush rolling washing machine
|
3000*1000*1200mm
|
1
|
|
6
|
Manual picking conveyor
|
4000*800*950mm
|
1
|
|
7
|
Cutting machine
|
800*700*1000mm
|
1
|
|
8
|
Bubble washing machine.
|
5000*1000*1850mm
|
1
|
|
9
|
Blaching machine
|
5000*1000*1650mm
|
1
|
|
10
|
Air-dryer dewatering machine
|
6000*900*1350mm
|
1
|
|
11
|
Hot air Drying machine
|
10000*5600*3200mm
|
1
|
|
12
|
Automaitc weighing packing machine
|
1720 *720 *1900mm
|
1
|
|
13
|
IQF freezer or cabinet
|
customized
|
1
|
Details Images
1.
Sorting machine
(1)Function :can grade the fruits and root vegetables into 5 sizes : S, M, L, 2L, 3L (customized grades).
(2)Features : the roller sorter is suitable for the date and other round fruits, which is durable and corrosion-resistant without
fear of moisture. The structure design is precise and reasonable.
(3) Technical parameters:
Size: 4000*1200*1000mm
Power: 1.5KW/380v/50Hz
(2)Features : the roller sorter is suitable for the date and other round fruits, which is durable and corrosion-resistant without
fear of moisture. The structure design is precise and reasonable.
(3) Technical parameters:
Size: 4000*1200*1000mm
Power: 1.5KW/380v/50Hz
2.
Washing and peeling machine
1.
Function :washing and peeling the potato ,carrot,onion and other root vegetable continuously.
Features: spiral discharging, continuous production, import of nylon wire, roller, durable, stainless steel frame structure.
The brush cleaning and peeling machine of Lijie Brand mainly consists of the motor, transmission and 9 brush rollers.
Technical parameter:
size :2400*850*1200mm
Power :1.5kw/380V/3PHASE
Length of brush roller: 2000mm
9 pcs, High quality nylon brush roller
Frame :50*50*2mm304stainless steel tube.
Texture :2mm thickness 304stainless steel
Features: spiral discharging, continuous production, import of nylon wire, roller, durable, stainless steel frame structure.
The brush cleaning and peeling machine of Lijie Brand mainly consists of the motor, transmission and 9 brush rollers.
Technical parameter:
size :2400*850*1200mm
Power :1.5kw/380V/3PHASE
Length of brush roller: 2000mm
9 pcs, High quality nylon brush roller
Frame :50*50*2mm304stainless steel tube.
Texture :2mm thickness 304stainless steel
3.
Brush rolling washing machine
(1)Usage: clean the fruit and dried fruit ,such as dates jujube by scrubbing the surface of the stuff.
(2)Technical parameters:
Capacity:500-1000kg/h
Size：3000*1000*1100mm，
length of wool roller：800mm
Power：1.5kw，
Pump power：1.5kw
Frame:50*50*2mm304stainless steel tube
(2)Technical parameters:
Capacity:500-1000kg/h
Size：3000*1000*1100mm，
length of wool roller：800mm
Power：1.5kw，
Pump power：1.5kw
Frame:50*50*2mm304stainless steel tube
4.B
ubble washing machine
(
(1) use: can wash the mud, sand and dirt from the surface of fruits and vegetables.
(2) features: food grade 304sus, with bubble function, to prevent the adhesion of French fries, stainless steel chain mesh belt
conveyor, one side with a cleaning area, the installation of sprinkler at the exit.
(3) technical parameters:
Dimensions:6000*1000*900mm
Conveyor belt width:800mm
Conveyor motor: frequency conversion
Conveying Power: 0.75kw/ 50Hz
Water pump power: 1.5kw
capacity: 2000kg/h
Frame: 50*50*2mm rectangle 304SUS stainless steel square tube
(2) features: food grade 304sus, with bubble function, to prevent the adhesion of French fries, stainless steel chain mesh belt
conveyor, one side with a cleaning area, the installation of sprinkler at the exit.
(3) technical parameters:
Dimensions:6000*1000*900mm
Conveyor belt width:800mm
Conveyor motor: frequency conversion
Conveying Power: 0.75kw/ 50Hz
Water pump power: 1.5kw
capacity: 2000kg/h
Frame: 50*50*2mm rectangle 304SUS stainless steel square tube
5.Air-cooled dehydrator
(1) Function : it can remove excess water after washing ,good for drying.
(2) the technical parameters:
Size:6000 * 1000 * 1350 mm
Drive power: 0.75 kw
Air blower power:0.75*12sets
Mesh belt width: 800 mm
Total power:8.25kw
Weight：600kg
(2) the technical parameters:
Size:6000 * 1000 * 1350 mm
Drive power: 0.75 kw
Air blower power:0.75*12sets
Mesh belt width: 800 mm
Total power:8.25kw
Weight：600kg
6.
Multi function Cutting machine
(1) use: after cleaning the peeled potatoes cut strip processing
(2) features: Taiwan Technology, blade durable, smooth operation. Cut into the rinsing machine directly into the rinsing process.
(3) technical parameters:
Dimensions: 1070*560*900mm
Power: 1.5kw /380v/ 50Hz
Cutting size: 7-16mm
capacity: 800kg/h
(4) material disposition
Frame material: aluminum alloy
7.Vortex washing machine
Function :after cutting, it can rush the mud, sand and dirt of fruits and vegetables. Especially suitable for cleaning cut onion coriander, celery, leek, cabbage and other vegetables.
Features：
1. The spiral water washing system can make the product follow an adjustable water spiral through the washing tank, which is
four times the distance of the washing tank itself
2. Swirl + bubble, Double cleaning function, cleaning vegetables more clean.
3.Barrier free cylinder design, semi-circular design inside the cylinder, smooth. Vegetables are agitated by bubbles in the cleaning process without damaging them.
4. Automatic water supplement design. The circulating water tank is equipped with automatic make-up water device. When the water
level reaches the set low level, it will make-up water automatically.
Technical parameter:
Size :4200*1200*1400mm
Power:4kw/380V/50Hz
Weight:320kg
Features：
1. The spiral water washing system can make the product follow an adjustable water spiral through the washing tank, which is
four times the distance of the washing tank itself
2. Swirl + bubble, Double cleaning function, cleaning vegetables more clean.
3.Barrier free cylinder design, semi-circular design inside the cylinder, smooth. Vegetables are agitated by bubbles in the cleaning process without damaging them.
4. Automatic water supplement design. The circulating water tank is equipped with automatic make-up water device. When the water
level reaches the set low level, it will make-up water automatically.
Technical parameter:
Size :4200*1200*1400mm
Power:4kw/380V/50Hz
Weight:320kg
8.Blanching machine
(1)Function :after cutting, it can blanch the vegetables
in 90-92℃ water blanching for 2-6 minutes in order to protect the color and
Prevent oxidation
(2) features: electric heating, with thelifting function, easy to clean, maintenance, easy to clean.
(3) technical parameters:
Dimensions: 6000*1200*1350mm
Conveying power: 0.75kw.
Conveyor belt width:800 mm,
Heating power:140kw ，can be customized gas or steam heated heating method.
Pump power:1.5kw
Cover lifting power:1.1kw
(4) material disposition
Drive motor: worm gear motor
Conveyor belt: stainless steel chain mesh belt
Frame: 50*50*2mm 304square tube
(2) features: electric heating, with thelifting function, easy to clean, maintenance, easy to clean.
(3) technical parameters:
Dimensions: 6000*1200*1350mm
Conveying power: 0.75kw.
Conveyor belt width:800 mm,
Heating power:140kw ，can be customized gas or steam heated heating method.
Pump power:1.5kw
Cover lifting power:1.1kw
(4) material disposition
Drive motor: worm gear motor
Conveyor belt: stainless steel chain mesh belt
Frame: 50*50*2mm 304square tube
9.Hot air conveyor drying machine
(1)Function: widely used in the drying of onion flaky and carrot garlic chips, dice and granular materials with better air permeability,
Technical parameters:
Total Size :16000*5600*3200mm
Drying length:10000mm
Mesh belt width:1800mm,
Total Power:72kw/380V /50Hz
Driving power :2.2kw*5sets
Circulating fan power:4kw*4sets
Moisture removal fan power:7.5kw*2.
Gas Burner:600000kcal
Energy consumption: about 50m³
Thickness of the material:10-15mm
Drying time : Adjustable for 1-8 hours.
Temperature:40-120℃ can be adjustable
Technical parameters:
Total Size :16000*5600*3200mm
Drying length:10000mm
Mesh belt width:1800mm,
Total Power:72kw/380V /50Hz
Driving power :2.2kw*5sets
Circulating fan power:4kw*4sets
Moisture removal fan power:7.5kw*2.
Gas Burner:600000kcal
Energy consumption: about 50m³
Thickness of the material:10-15mm
Drying time : Adjustable for 1-8 hours.
Temperature:40-120℃ can be adjustable
10.
Tunnel lQF quick freezer
Function: it can quickly freeze the vegetable.
Technical parameters:
1.Size:6600mm*1500mm*1780mm
2.Mesh belt width: 900mm
3.Capacity:300kg-1000kg//h
4.Power: 4 Kw.
5. Quick freezing temperature: 0 ℃~-45 ℃ can be adjusted
6.Advantages: take smaller space, easy to be installed, high frozen efficiency, low power.
consumption, better frozen effect.
Technical parameters:
1.Size:6600mm*1500mm*1780mm
2.Mesh belt width: 900mm
3.Capacity:300kg-1000kg//h
4.Power: 4 Kw.
5. Quick freezing temperature: 0 ℃~-45 ℃ can be adjusted
6.Advantages: take smaller space, easy to be installed, high frozen efficiency, low power.
consumption, better frozen effect.
11.Automatic weighing packing line
(1)Function:
The machine has a wide range of application since weighing, filling and seaming can be realized for different-sized bags .
(2).Features:
High weighing accuracy is ensured with high-precision combined weigher and by directly setting gram weight on the touch panel
(3)Parameter:
Weighing range:10-1500g
Weighing accuracy：±0.1-1.5g
Max weighing speed：25-30cans/min
Hopper capacity：1.6L
Control system:MCU ,7 inch touch screen
Power supply：220V / 800W / 50/60 HZ / 8A
Packaging size: 1140*1140*1800mm
