Quick Details
-
Brand Name:
-
Nairy
-
Dimension(L*W*H):
-
3320*2030*2005mm
-
Weight:
-
17050 KG
-
Marketing Type:
-
New product
-
Installation:
-
Engineer Guide
-
Raw material:
-
Stones Rocks Ores
-
Certification:
-
ISO
-
Inlet size(mm):
-
1060*700
-
Discharge Port Size(mm):
-
70-200
-
Advantage:
-
High Efficiency Low Energy
Quick Details
-
Application:
-
Mine, Construction
-
Capacity(t/h):
-
150-500
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Nairy
-
Dimension(L*W*H):
-
3320*2030*2005mm
-
Weight:
-
17050 KG
-
Marketing Type:
-
New product
-
Installation:
-
Engineer Guide
-
Raw material:
-
Stones Rocks Ores
-
Certification:
-
ISO
-
Inlet size(mm):
-
1060*700
-
Discharge Port Size(mm):
-
70-200
-
Advantage:
-
High Efficiency Low Energy
Product Overview
Introduction Of
Rock Crusher
NC series
Rock Crusher
is a new type of jaw crusher developed by Nairy, optimized in design and production from the structure. All kinds of hard and strong abrasive rock and varieties of recycled materials can find the best solution from the NC series jaw crusher.
Application Of
Stone Crusher Manufacturing Companies
This
stone crusher
is mainly applicable materials Limestone, calcite, granite, basalt, river pebbles, marble, gypsum and other mines and rocks.
Stone Crusher Machine Price In China
Working Principle
This
stone crusher machine in china

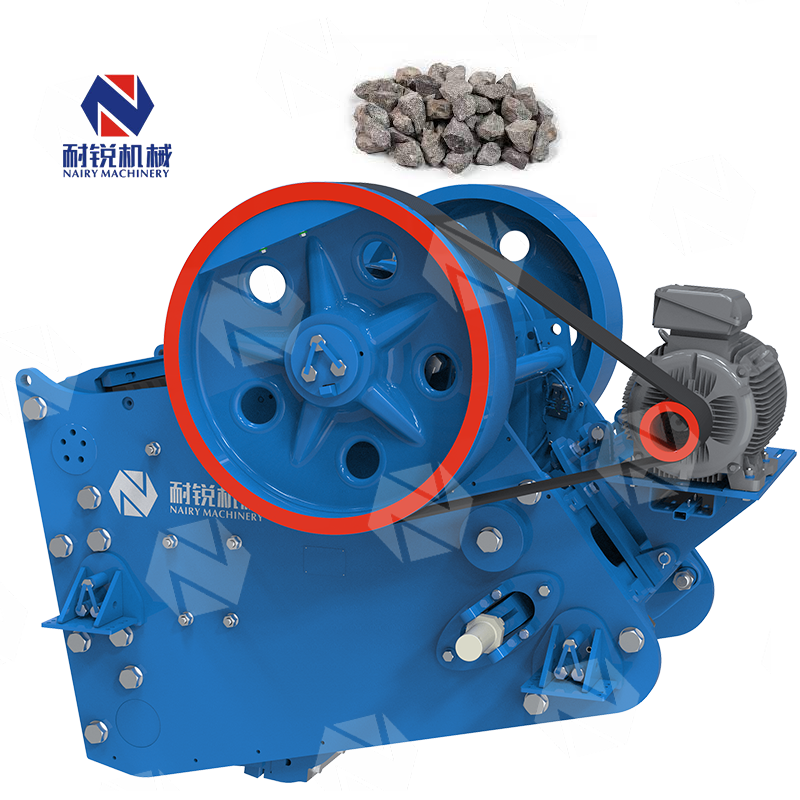

is mainly composed of frame, moving jaw, eccentric shaft, jaw plate, adjusting inclined iron and other parts.
When working, the motor drives the eccentric shaft through the V-belt and the pulley, so that the movable jaw moves according to a certain trajectory, and the materials entering the crushing chamber are crushed, split and bent between the two jaw plates and crushed. The material is discharged from the discharge port under the action of its own weight.
Features of
Rock Crusher Machine
1.High ratio of crushing;
2.Simple structure,reliable working conditions;
3.Easy maintenance,Low operating cost;
4.Homogeneous final product size;
5.The discharge size can be adjusted.
Product Specifications
|
Model
|
Inlet size（mm）
|
Discharge Port Size（mm）
|
Capacity（t/h）
|
Dimension(mm）
|
Weight（kg）
|
Power（kw）
|
|
NC80
|
800*510
|
40-175
|
55-335
|
2577*1526*1750
|
9520
|
75
|
|
NC96
|
930*580
|
60-175
|
105-390
|
2880*1755*2490
|
11870
|
90
|
|
NC106
|
1060*700
|
70-200
|
150-500
|
3320*2030*2005
|
17050
|
110
|
|
NC116
|
1150*760
|
70-200
|
165-520
|
3600*2400*2730
|
21500
|
132
|
|
NC120
|
1200*870
|
70-175
|
175-540
|
4050*2700*2850
|
40910
|
160
|
|
NC130
|
1300*1000
|
100-250
|
270-831
|
4300*2950*3050
|
49010
|
185
|
|
NC150
|
1400*1200
|
125-250
|
340-880
|
4750*3210*3450
|
65190
|
200
|
|
NC160
|
1600*1200
|
150-300
|
430-1145
|
5900*3700*3750
|
83300
|
250
|
|
NC200
|
2000*1500
|
175-300
|
630-1435
|
6700*4040*4465
|
137160
|
400
|
Important Reminder:
1. The technical parameters are for reference only.
2. The product quotation is for reference only, based on the purchased model and configuration.
3. For more information, please call or consult customer service.
