Quick Details
-
Dimension(L*W*H):
-
10820X3220X3990mm
-
Weight:
-
22000 KG
-
Marketing Type:
-
Hot Product 2024
-
Application:
-
Forestry Wood Log Transportation
-
Product name:
-
Forestry Skidder Forest Forwarder Log Crane Trailer
-
Model Number:
-
XVY18C
-
Material:
-
Steel HARDOX NM450/Q355B/Q690D
-
Brand:
-
XUVOL
-
MOQ:
-
1 Set
-
Color:
-
Customized
-
Net Weight:
-
22ton
-
Load capacity:
-
18ton
-
Engine:
-
YUCHAI or customized
Quick Details
-
Use:
-
forwarder logs/timber
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
XUVOL
-
Dimension(L*W*H):
-
10820X3220X3990mm
-
Weight:
-
22000 KG
-
Marketing Type:
-
Hot Product 2024
-
Application:
-
Forestry Wood Log Transportation
-
Product name:
-
Forestry Skidder Forest Forwarder Log Crane Trailer
-
Model Number:
-
XVY18C
-
Material:
-
Steel HARDOX NM450/Q355B/Q690D
-
Brand:
-
XUVOL
-
MOQ:
-
1 Set
-
Color:
-
Customized
-
Net Weight:
-
22ton
-
Load capacity:
-
18ton
-
Engine:
-
YUCHAI or customized
Product Description

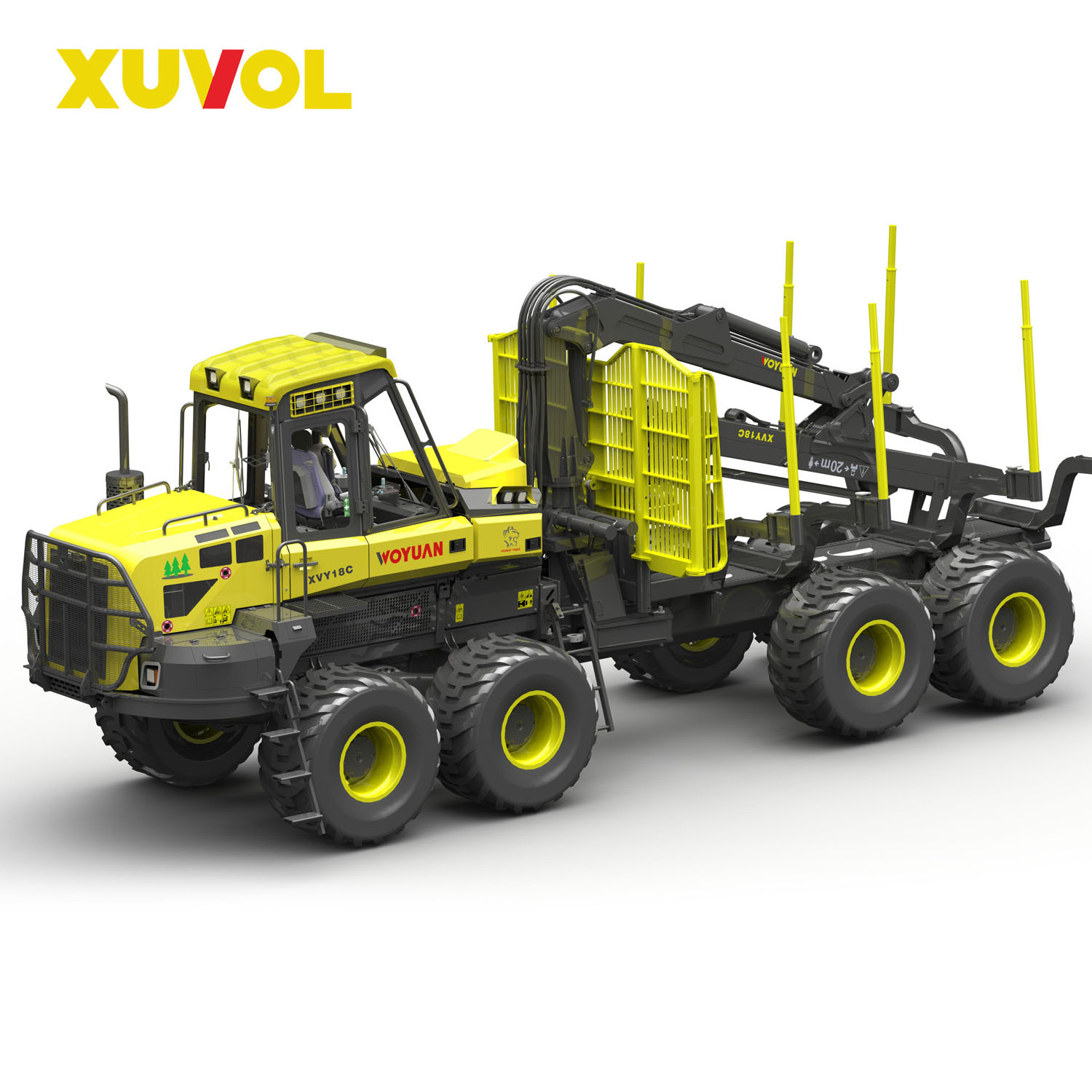

XVY18C Wheeled Forestry Forwarder/Forestry Skidder
XUVOL XVY18C Forestry Forwarder is a special vehicle specially designed for transportation in complex terrain, such as forests and mountainous areas. It has strong off-road capabilities, load-carrying capacity and stability, and can drive smoothly on rugged forest roads, effectively solving problems such as forest resource collection and transportation.
Product Paramenters
|
XVY18C Forestry Forwarder/Forestry Skidder
|
|
|
|
|||
|
Item
|
Parameter
|
Item
|
Parameter
|
|||
|
Forwarder Length/Width/Height(mm)
|
10820X3220X3990
|
Engine
|
YUCHAI
|
|||
|
Net Weight(T)
|
22
|
Engine Power(kw)
|
220KW/2200rpm
|
|||
|
Load capacity(T)
|
18
|
Max Torque of Engine
|
1200nm/1400rpm~1700rpm
|
|||
|
Driving speed(km/h)
|
0~20
|
Fuel tank capacity(L)
|
260
|
|||
|
Ground clearance(mm)
|
700
|
Hydraulic System
|
DANFOSS
|
|||
|
Steering angle(°)
|
44
|
Working Pump Displacement(CC)
|
190
|
|||
|
Boom rotation torque(knm)
|
33
|
Hydraulic tank capacity(L)
|
170
|
|||
|
Boom rotation angle(°)
|
360
|
Tire quantity（pcs）
|
8
|
|||
|
Lift torque(knm)
|
160
|
Tire specifications
|
750/55-26.5"
|
|||
|
Boom working radius(mm)
|
10000
|
Drive Axle
|
XUVOL
|
|||
|
Gearbox Proto type
|
XUVOL
|
|
|
|||
Core Technical Advantages
01
Excellent transmission system
The transmission system is one of its core components, responsible for transmitting the power of the engine to the wheels and driving the vehicle on complex and varied forest roads. An efficient transmission system is crucial to ensure the stability and safety of forest transport vehicles.
The main components include clutch, transmission, drive shaft and differential
02
Excellent steering system
The steering system of the entire vehicle is located between the front and rear frames and is controlled by the steering cylinder installed on the rear frame. The direction of the transport vehicle is changed through the expansion and contraction of the hydraulically driven steering cylinder. The front and rear frames are connected through slewing supports and connecting blocks, and the connection form is hinged.
The front frame is equipped with a balancing cylinder. When the work site for collecting wood is located on a slope, the balancing cylinder can be controlled to tilt the front frame to a certain extent to keep the cab level
03
Excellent loading and unloading boom
The loading and unloading arm consists of a slewing arm, a support arm, a telescopic arm and a wood clamp.
The bottom of the slewing arm can realize the left and right rotation of the entire loading and unloading arm through the hydraulic drive of the rack and pinion cylinder.
Driven by two hydraulic telescopic cylinders, the support arm and telescopic arm can swing up and down.
The telescopic arm has a telescopic function and can adjust different grabbing distances.
The wood clamp is equipped with a rotary motor joint that can rotate 360°, making it easier to clamp wood/logs.
Workshop
Guangxi Xuvol Construction Machinery Equipment Co.,Ltd
XUVOL is a science and technology enterprise that specializes in the R&D, manufacturing, customization, sales & service of forestry machinery, construction machinery attachments
Main products with forestry wheeled forwarder/forestry skidder, tree harvester head, log grapple, grapple saw, tree shear, forestry telescopic boom, mobile crushers, rock drills, etc.
With more than 15 years rich experience on forestry equipment field since 2007
Application Case
Successfully using in forest which very harsh cold environment
More Forestry Machines
Certifications
Our Honor Wall
Forestry skidder/wheeled Forwarder/Forest tree harvester/Tree cutting machinery Approved CE, EAC and IOS 9001 Certificates, etc,.
Exhibition
FAQ
1. Who are we?
We are professional manufacturer of forestry machinery and excavator attachment. Support Customized, provide your best solution
for your requirement.
We are professional manufacturer of forestry machinery and excavator attachment. Support Customized, provide your best solution
for your requirement.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Excavator Rotating Log Grapple/Tree Harvester Head/Grapple Saw/Log Crane/Tree Shear/Forestry Forwarder, Shredder/Mower/mower
weeder/brush cutter/Forestry Telescopic Boom, Mobile Crushers, etc.
4. Why should you buy from us not from other suppliers?
15+ years R&D forestry machinery and excavator attachments manufacturing experience. Factory with laser cutting robots and many
other professional production machine. With 5 production lines, CE certificate. OEM and ODM available.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR,CIF,EXW,CPT；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. What can you buy from us?
Excavator Rotating Log Grapple/Tree Harvester Head/Grapple Saw/Log Crane/Tree Shear/Forestry Forwarder, Shredder/Mower/mower
weeder/brush cutter/Forestry Telescopic Boom, Mobile Crushers, etc.
4. Why should you buy from us not from other suppliers?
15+ years R&D forestry machinery and excavator attachments manufacturing experience. Factory with laser cutting robots and many
other professional production machine. With 5 production lines, CE certificate. OEM and ODM available.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR,CIF,EXW,CPT；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Western Union;
Language Spoken:English,Chinese
