Product name:
-

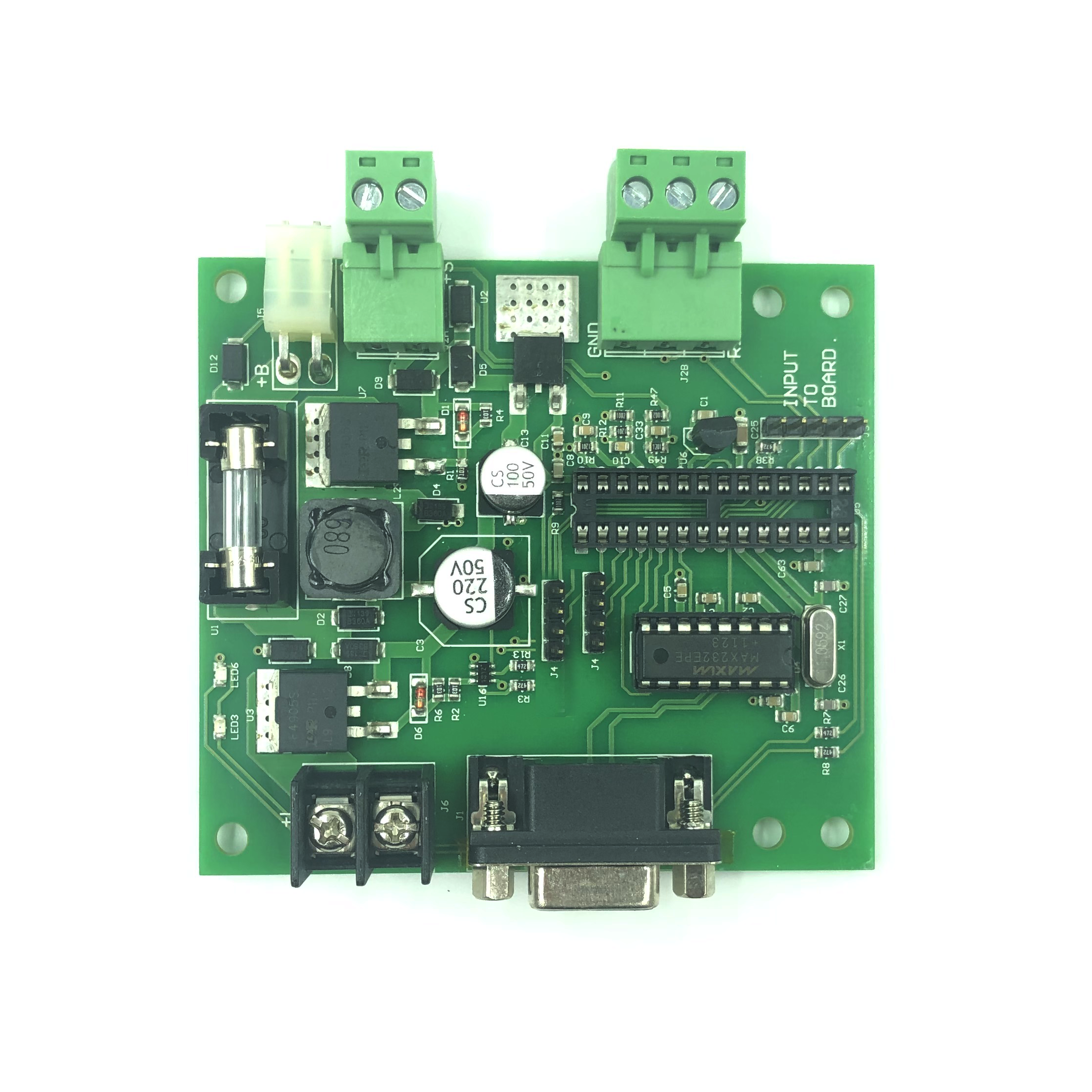

OEM Electric Fire Pump Controller PCBA Board
Quick Details
-
Model Number:
-
DNC-2043
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
oem
-
Service:
-
PCB fabrication, compoennts sourcing, PCB assembly
-
Testing Service:
-
AOI , functional testing ,flying probe testing, e-testing, X-Ray
-
Surface Finishing:
-
HASL ,OSP ,ENIG, Immsersion Gold ...
-
Usage 1:
-
consumer electronics, telecommunications
-
Usage 2:
-
industrial products, auto mobile assemblies, medical equipments
-
Product name:
-
OEM Electric Fire Pump Controller PCBA Board
Production Capacity:
| PCB Item | Production Capacity |
| Layer Counts | 1--20L |
| Base Material | FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
| Material Thickness(mm) | 0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
| Max board size(mm) | 1200x400mm |
| Board Outline Tolerance | ±0.15mm |
| Board Thickness | 0.4mm--3.2mm |
| Thickness Tolerance | ±8% |
| Minimum line/space | 0.1mm |
| SMD Pitch | 0.3mm |
| Min Hole Size(mechanical) | 0.2mm |
| Min Hole Size(laser hole) | 0.1mm |
| Hole Size Tol (+/-) | PTH:±0.075mm;NPTH: ±0.05mm |
| Surface Finish | HAL,ENIG,Plated Gold,Immersion Gold,OSP |
| Copper Weight | 0.5--6oz |
| Solder mask | Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
| Acceptable File Format | Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
| Certificate | ROSH,ISO9001,UL |
| PCBA Item | Production Capability |
| PCB Assembly Service | SMT & PTH & BGA |
| Design Service | PCBA & enclosure design |
| Test | AOI, In-Circuit Test (ICT), Functional Test (FCT) |
| Other Service | Plastic injection molding; metal sheet stamping |
| SMT Capability | |
| Lines | 5 SMT lines |
| Capacity | 50 million placements per month |
| Max Board Size | 457*356mm.(18”X14”) |
| Min Component size | 0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP |
| Speed | 0.15 sec/chip,0.7 sec/QFP |
| PTH Capability | |
| Lines | 2 PTH lines |
| Max board width | 400 mm |
| Type | Dual wave |
| Pbs status | Lead-free line support |
| Max temp | 399 degree C |
FAQ
1, What service do you have?
We provide turnkey solution including PCB fabrication, SMT, plastic injection & metal,final assembly, testing and other value-added service.
2, What is needed for PCB & PCBA quotation?
For PCB: Quantity, Gerber file and technic requirements(material,size, surface finish treatment, copper thickness,board thickness).
For PCBA: PCB information, BOM,Testing documents.
3. Are my design files secure when I send them to you?
Your files are never shared nor will any third parties have access to your design files. We can sign an NDA(Non-disclosure agreement) before sending files.
4. For small quantity orders, can you produce prototype PCBs?
Yes. DNC can produce prototypes. but the greater quantity, the greater cost saving.
5. What file formats do you accept for PCB and assembly?
Gerber ,CAM Auto CAD DXF, DWG formats.
6. Do you have after-sales product servicing available for your customers?
Yes, we supply one year warranty, for any quality problems DNC will take our responsibility to solve it for you any time.
