Quick Details
-
Material:
-
Stainless Steel 316
-
Type:
-
single stage, Instrument Manifold Valves
-
Size:
-
1/4-2 inch
-
Connection:
-
Ferrule
-
Head Code:
-
Hexagon
-
Thread:
-
BSPP BSPT NPT
Quick Details
-
Port Size:
-
1/2"-2"
-
Place of Origin:
-
China
-
Brand Name:
-
NAI-LOK
-
Material:
-
Stainless Steel 316
-
Type:
-
single stage, Instrument Manifold Valves
-
Size:
-
1/4-2 inch
-
Connection:
-
Ferrule
-
Head Code:
-
Hexagon
-
Thread:
-
BSPP BSPT NPT
Product Overview

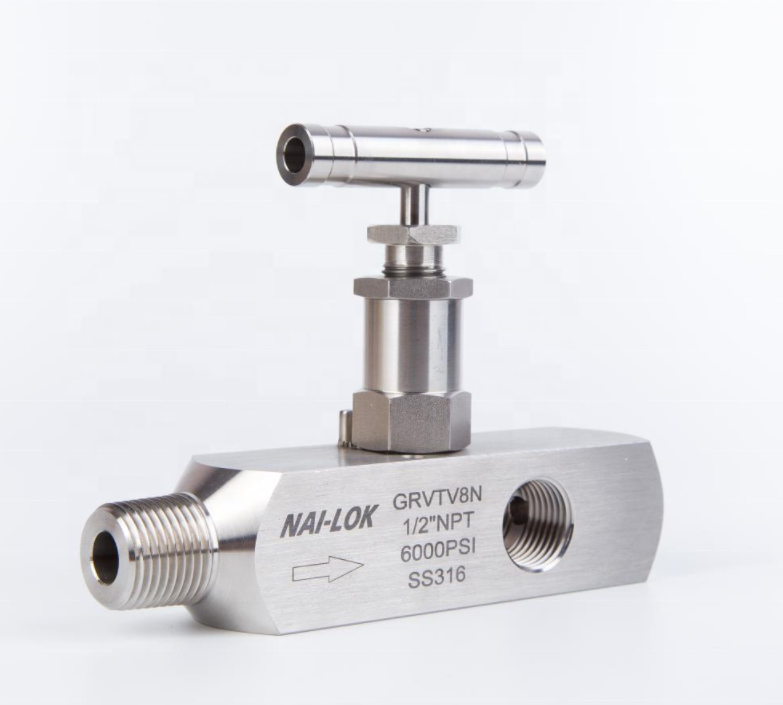

NAI-LOK Gauge Root Valve
NAI-LOK can offer two, three and five ways valves that are Direct mounting (pipe to flange: 'T' type), (flange to flange: 'H'
type), remote mounting (Pipe to pipe : 'R' type). The offered valves consist pipe to pipe, flange to flange pipe to flange
connection on 1/2” NPT (F) and 1/4” NPT (F).
Specifications
* Pressure Riding: Up to 6000 PSI.
* Material Construction: SS 316, Duplex steel 2205,Hastelloy C-276,Incloy 825,inconel 625, inconel 600,Monel Alloy400, of
optional material.
type), remote mounting (Pipe to pipe : 'R' type). The offered valves consist pipe to pipe, flange to flange pipe to flange
connection on 1/2” NPT (F) and 1/4” NPT (F).
Specifications
* Pressure Riding: Up to 6000 PSI.
* Material Construction: SS 316, Duplex steel 2205,Hastelloy C-276,Incloy 825,inconel 625, inconel 600,Monel Alloy400, of
optional material.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
|
1.Series valve manifolds are designed as 2-valve manifolds for static pressure and liquid level. 3 -valve & 5-valve are designed
for differential pressure. |
|
|
|
|
||||
|
2.Series valve manifolds are designed to be of horizontal type.The tube fittings of 1/2 in & Φ 12mm are used for manifolds
connection by 1/2 infemale and flange (MSSSP-99). |
|
|
|
|
||||
|
3.Stainless steel pins are supplied accordingly between the bonnet and the valves ealing to prevent the bonnet dropping from the
body. |
|
|
|
|
||||
|
4.Sealing gasket is not necessary since the body and the bonnet are sealed by metal to metal sealing.
|
|
|
|
|
||||
|
5. One-piece designing can increase the strength.
|
|
|
|
|
||||
|
6.The size of the center hole 2-1/8" in (54mm) is convenient for the instrument calibrating with flange connection.
|
|
|
|
|
||||
|
7.Female tube fittings and NPT thread fittings are used for long-distance installation.
|
|
|
|
|
||||
|
8.Available in wide variety of configurations.
|
|
|
|
|
||||
|
9.It can be reused.
|
|
|
|
|
||||
PRODUCT CONFIGURATION
