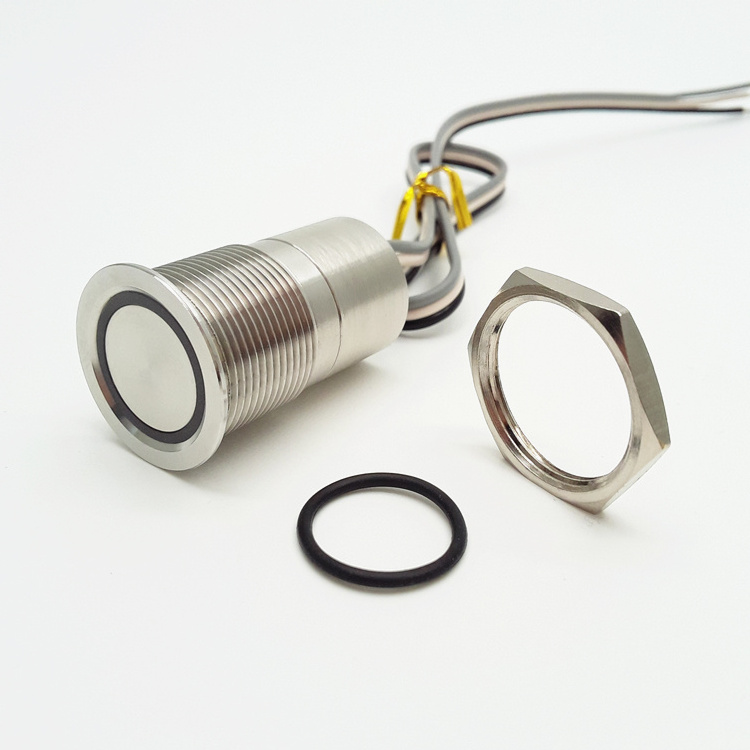

16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch
16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch
16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch
16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch
16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch
16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch
16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch
16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch

16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch

FOB Reference Price: Get Latest Price
≥2 Pieces
US $10
≥100 Pieces
US $9
≥1000 Pieces
US $8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Zhejiang, China
Diameter:
16mm or 19mm or 22mm or 25mm
Operation Type:
Momentary or Latching
Emitting Type:
Ring LED/Dot LED/Symbol LED
Lamp Color:
Red Green Yellow Blue White Orange Purple Pink
LED Voltage:
2V/3V/6V/12V/24V/36V/110V/220V/250V
Waterproof/Protection:
IP68 IK10
Shell Metal:
Stainless Steel
Max Voltage:
250VAC
Head shape:
Flat Head
Product name:
16MM/19MM waterproof momentary/latching metal piezo switch

Quick Details

Protection Level:
IP68 IK10
Max. Current:
10A
Max. Voltage:
250V
Place of Origin:
Zhejiang, China
Diameter:
16mm or 19mm or 22mm or 25mm
Operation Type:
Momentary or Latching
Emitting Type:
Ring LED/Dot LED/Symbol LED
Lamp Color:
Red Green Yellow Blue White Orange Purple Pink
LED Voltage:
2V/3V/6V/12V/24V/36V/110V/220V/250V
Waterproof/Protection:
IP68 IK10
Shell Metal:
Stainless Steel
Max Voltage:
250VAC
Head shape:
Flat Head
Product name:
16MM/19MM waterproof momentary/latching metal piezo switch
Product Description

16mm 19mm 22mm 25mm ip68 electric steel waterproof touch switch led latching on off piezo switch

The Product Parameters
Project Parameter Project Parameter
Contact type Slow moving single contact Operation Schedule Connected:1.8mm,Total:3.5mm
Contact Resistance ≤50mΩ Actuating Force about 8N
Insulation  Resistance ≥1000mΩ Mounting panel thickness ≤11mm or customised the others
Dielectric Strength 1000VAC min Nut torque 5~14N.m
Ambient  Temperature -30℃~+80℃ Outshell/Press Key Stainless Steel/ copper plated/ aluminum oxide
Electrical Life

100000 cycles

Base material

PA66

Mechanical Life

Latching-200,000 cycles

Momentary-800,000 cycles

Transmissive cover

PC
Protection Level IK10 Pins Contact Copper palted sliver
Waterproof Level IP67 Spring Steel wire

Led Lamp Parameters
Project Parameter
Led Symbol Ring/Power Symbol/Dot/Ring+Power Symbol/Customized
Led Color Red , Green , Blue , Yellow , Orange , White , Purple , Pink
Rated Voltage AC/DC3~8V,AC/DC9~24V,AC/DC 25~48V,AC110V,AC220V
Rated Current ≤20mA
Reference Life 40,000hours
