Quick Details
-
Model Number:
-
DF-50 Pet Incinerator
-
Power:
-
0.37~1.1kw
-
Material:
-
Steel, A3 STEEL
-
Combustion chamber temperature:
-
850-1300 degree
-
Flue gas temperature:
-
250-340 degree
-
Capacity:
-
20kg~800kg/time Diesel Powered Pet Cremation Machines
-
Sludge tank Volume:
-
1000L
-
Electrical Power Consumption:
-
12kw
-
Burner Capacity:
-
15Kg/L
-
Service life:
-
10years or 10000times burning
-
Flue Gas Fan Capacity:
-
9500N
-
Product Name:
-
Dustbin Incinerator
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support
Quick Details
-
Production Capacity:
-
10~500kg/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
GR Pet Incinerator
-
Model Number:
-
DF-50 Pet Incinerator
-
Power:
-
0.37~1.1kw
-
Material:
-
Steel, A3 STEEL
-
Combustion chamber temperature:
-
850-1300 degree
-
Flue gas temperature:
-
250-340 degree
-
Capacity:
-
20kg~800kg/time Diesel Powered Pet Cremation Machines
-
Sludge tank Volume:
-
1000L
-
Electrical Power Consumption:
-
12kw
-
Burner Capacity:
-
15Kg/L
-
Service life:
-
10years or 10000times burning
-
Flue Gas Fan Capacity:
-
9500N
-
Product Name:
-
Dustbin Incinerator
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Video technical support, Field installation, commissioning and training, Field maintenance and repair service, Free spare parts, Online support

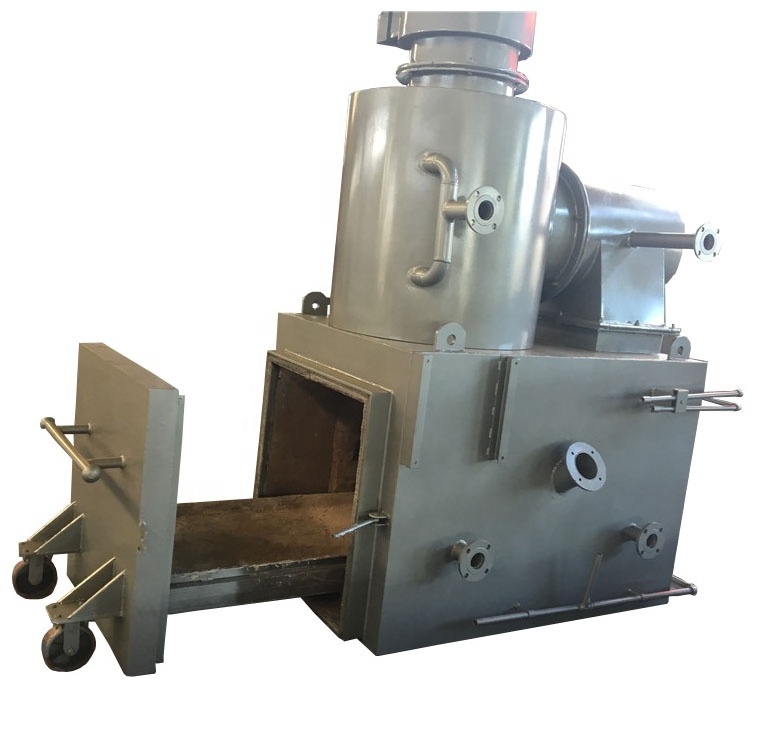

Pet Incinerator Diesel Powered Pet Cremation Machines
1.1 Main Characteristics And Scope of Application
The equipment is totally enclosed, small size, high efficiency of burning. It has reasonable process, high technology, and less hazardous. Has wide applications such as hospitals, hotels, railway stations, large commercial institutions, enterprises and institutions etc.
Main features:
1. The use of gasification burning technology, can be applied to the burning of syringes, drip container and other medical devices. Also can be applied to the burning of a variety of paper-based waste materials, bandages, cotton wool, all kinds of dirt and wastes discarded by hospital ,medical institutions, and house .
2. By using of gasification incineration method, wastes generated every day can be incinerated once at a time.
3. The use of gasification burning, mixed-burning, and burn treatment technology, makes smoke and dust content lower than the state emission standards.
4.Totally enclosed operations, which applied to the handling of infectious medical wastes, avoid secondary pollution.
5.Small size , small footprints.
6.Two kinds of this series of incinerator, the oil fuel and the gas fuel, user can select different type according to the need.
Installation And Equipment Use
The ground should be flat when install the incinerator. There should be at least a distance of 100cm between the incinerator and the walls on the two sides and the back, which is in convenient maintenance and repair.
Flow chart of Diesel Powered Pet Cremation Machines
Diagram of Diesel Powered Pet Cremation Machines
|
DF-30 |
DF-50 |
DF-150 |
DF-300 |
DF-500 |
|
|
Capacity |
20-30kg/time (3-6 times/day) |
30-50kg/time (3-6 times/day) |
100-150kg/time (3-6 times/day) |
200-300kg/time (3-6times/day) |
300-400kg/time (3-6times/day) |
|
Dimension (L*H*B) m |
1.45*0.9*1.75 |
1.8*1.15*3 |
2*1.4*3.5 |
2.2*1.4*3.8 |
3*2*4.8 |
|
Imputing Mouth Width (mm) |
480*600 |
620*800 |
760*960 |
900*1100 |
1080*1280 |
|
Chimney Diameter (mm) |
280 |
280 |
300 |
400 |
460 |
|
Fan Power |
0.37kw |
0.37kw |
0.5kw |
1.1kw |
1.1kw / 0.55kw |
|
Oil Consumption |
4-6kg/h |
4-10kg/h |
7-14kg/h |
||
|
Voltage |
380V/220V |
380V/220V |
380V/220V |
380V/220V |
|
|
Fuel |
Diesel Oil/ LPG/ Nature Gas |
||||
Please contact us talk about details if you are interested in Pet Incinerator
