Water hose, gas hose, solar hose and fire fighting hose hydraulic leakage testing
Size range: DN8-32mm
Pressure: 6bar
Max. length of the hose: up to 2000mm
No. of hoses testing at the same time: 4-8pcs
Testing medium: water
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HLT
-
Voltage:
-
380V
-
Power:
-
2KW
-
Dimension(L*W*H):
-
1500*800*1000MM
-
Name:
-
gas hose pipe making machine
-
Weight:
-
700KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Size range:
-
DN8-40
-
Wall thickness:
-
0.18-0.3mm
-
Production speed:
-
2.5~3.5m/min
-
Strip thickness:
-
0.18-0.3mm
-
Certification:
-
ISO
Quick Details
-
Pipe Material:
-
Stainless steel
-
Production Capacity:
-
80%
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HLT
-
Voltage:
-
380V
-
Power:
-
2KW
-
Dimension(L*W*H):
-
1500*800*1000MM
-
Name:
-
gas hose pipe making machine
-
Weight:
-
700KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support
-
Size range:
-
DN8-40
-
Wall thickness:
-
0.18-0.3mm
-
Production speed:
-
2.5~3.5m/min
-
Strip thickness:
-
0.18-0.3mm
-
Certification:
-
ISO

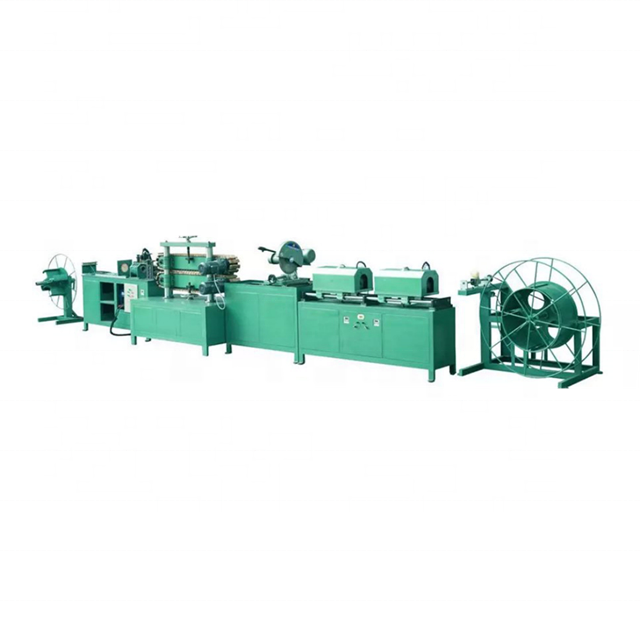

High Quality Corrugated Convoluted Flexible Metal Gas Hose Pipe Making Machine
Product Description
A. DN8-32 mm Mechanical Hose Making Machine
|
Size range
|
DN8-32mm
|
|
Wall thickness
|
0.18-0.3mm
|
|
Speed
|
2.5~3.5m/min
|
|
Material of strip coil
|
SUS 304, 321 and 316L
|
|
Power
|
4-7KW
|
|
Outer dimension
|
8000*1100*1700
|
Detailed Images
Decolier
Welding Part
Caterpillar
Forming Head
Cutter
Take Up
Gas Hose Standard Size Specification
|
NO.
|
Size
|
Tube OD
（mm）
|
Wall thickness
（mm）
|
Hose ID
(mm)
|
Hose OD
(mm)
|
Pitch Distance
（mm）
|
Strip Width
(mm)
|
|
1
|
DN 8
|
10.3
|
0.18
|
8
|
11.3
|
2.7
|
31.8
|
|
2
|
DN10
|
12.3
|
0.18
|
10
|
13.5
|
2.9
|
38.1
|
|
2
|
DN 12
|
15
|
0.18
|
12.3
|
16.3
|
3.2
|
46.6
|
|
3
|
DN 16
|
20
|
0.2
|
16.2
|
21.3
|
4.5
|
62.2
|
|
4
|
DN 20
|
23.5
|
0.25
|
20
|
25
|
4.5
|
73
|
|
5
|
DN 25
|
30
|
0.3
|
25
|
31.5
|
4.5
|
93.3
|
|
6
|
DN 32
|
39.5
|
0.3
|
33
|
41
|
4.5
|
123.2
|
Related Machines
B. Gas Hose Annealing & brightening line machine
The purpose of this machine is to make the flexible metal hose surface brighter and with high flexibility.
|
Rated power
|
60KW
|
|
Rated temperature
|
1100℃
|
|
Rated voltage
|
380V
|
|
No. of phases
|
3
|
|
Temperature control zone
|
3
|
|
Furnace Size
|
51*6*5000mm (OD*thickness*length)
|
|
No.of hoses can be annealed at same time
|
3pcs
|
|
Material of furnace
|
310S
|
|
Length of furnace
|
4600mm
|
|
Sleeve length
|
51*3*6500mm
|
|
Material
|
sus304
|
C.
Convolution compressing machine
D.Pitch closing machine
To get more flexible hose, the metal hose will be compressed on this machine, the pitch distance will be closed which make hoses more flexible.
Size range:
HJ-BA100 DN25-100mm
HJ-BA200 DN100-200mm
E.Hose Fitting Welding Machine
Vertical fitting welding machine
Size range: DN8-32
Welding type: TIG wleding
Welding position: Circumference
Compact structure
Torch automatic rotating
Horizontal fitting welding machine
Size range: DN8-32
Welding type: TIG wleding
Compact structure
Part automatic rotating
The machine is widely used for following hose testing:
G. PVC extruder line
Hard Teeth Surface, type 173 Gearbox
18.5KW Inverter, 4 grade Motor with Chinese famous brand Chint contactor
The screw & barrel are 38CrMoAl, Nitriding treatment，
depth: 0.2-0.4MM,
compression ratio:3.2,
Length : diameter: 25：1
with water cooling system
Thermal heating & electrical: the whole machine apply Chint DC contactor. Intelligent temperature controller, AL heating: 6 zones, 4pcs with two sections of moulds
Size range: DN8-32mm
PVC extruder head
Cooling water tank
H.Vacuum PVC coating line
Rated Power: 60KW
Rated voltage: 380V
Rated temperature: 300 ℃
Frequency: 50HZ
Cylinder: ¢ 600X4 meters
Cylinder moves: Manual
Cylinder seal forms: with silicone rubber seal
Vacuum pump: The 2X-30 rotary vane vacuum pump
Max. length: 3m
Heating element: 30 Pcs of stainless steel electric heating pipe
Packing&Shipping
Polywood box and standard pallet
After Sales Service
Accept Machine Training
our customer from Argentina was accepting mechanical hose machine training in our factory.
They are very satisfied with our high quality machine.
Company Introduction
We are professional manufacturer of metal hose making machine, mechanical hose forming machine,wire braiding machine for over 25 years experience.Our machinery have been exported to many countries, such as
Russia,
Ukraine,
America, Australia,
Turkey, Iran, India,Canada,Argentina,Mexico,Spain
etc.
Our Customer
FAQ
Q: Why choose us for metal hose forming machine?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines.
Q: How many different types of machine can you make?
A: We are most professional manufacturer of hose making machine with more than 25 years of experience
Q: What size can you make?
A: All the sizes from DN8 up to DN400 can be made on different machines.
Q: How many different types of machine can you make?
A: Hydraulic metal hose forming machine
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
a:DN16-65mm b:DN25-DN100mm c:DN32-150mm d:DN50-300mm e:DN80-400mm
B: Mechanical hose making machine
DN8-32mm
DN8-32mm
C:PU/ Elastomer Metal Hose Making Machine
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, gas hose, water hose, air conditional hose, etc.
3.Wall thickness
a:DN12-100 b: DN50-150 c:DN12-65
Q:Can the hose forming machine be used for bellow making?
Yes, all above hose forming machine can be used for bellow making as well
We need to know following information to quote you correct machineries:
1.Size range you want to make
2.The application of the hose you need, for instance, gas hose, water hose, air conditional hose, etc.
3.Wall thickness
