Quick Details
-
Material:
-
Aluminium alloy (IP65)
-
Power Supply:
-
22-60VDC, 22-220VAC, 50/60Hz
-
Output:
-
DPDT 5A/250VAC or NPN/PNP
-
Operating Pressure:
-
-1-40bar
Quick Details
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
KACISE
-
Model Number:
-
KVF series
-
Material:
-
Aluminium alloy (IP65)
-
Power Supply:
-
22-60VDC, 22-220VAC, 50/60Hz
-
Output:
-
DPDT 5A/250VAC or NPN/PNP
-
Operating Pressure:
-
-1-40bar

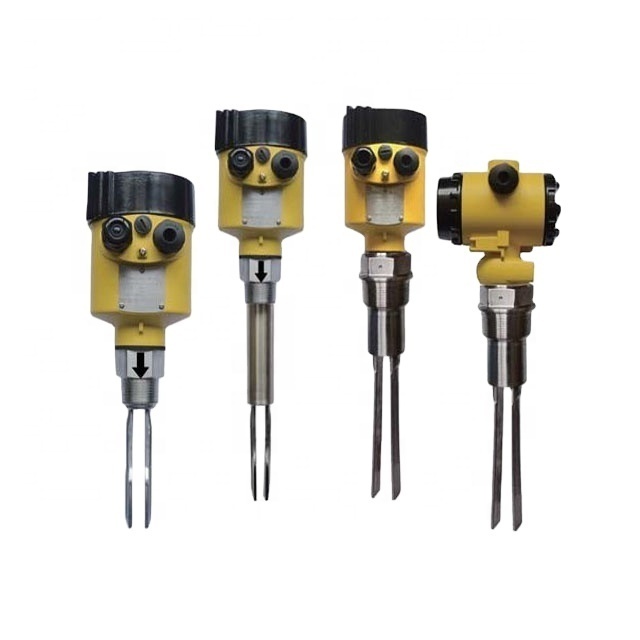

KVF Series Vibrating Fork Liquid / Solid Level Switch Tuning Fork Liquid/Solid Level Switch
KVF series is an compact v ibrating fork liquid level switch. It can be applied to the leve l measurement of vessels and storage tanks under difficult conditions. It is not only suitable to use in foams, air bubbles, viscous liquid and conditions with complex vibrating interference, but also particularly suitable to be installed in small containers and tanks with constricted mounting space. It measures the liquid/solid level by detecting the change of the vibration frequency when the folk body is immersed in medium.
1. Working Principle:
KVF l evel s witch fulfills the level measurement by detecting the change of the vibration frequency when the folk body is immerced in medium. The frequency of the tuning fork will obviously decreases when it contacts the medium, and the change shall be detected by the intelligent control circuit and converted into corresponding output signal.
2. Technical Features:
- The length can be up to 3m;
- DPDP SPDT Relay / NPN / PNP output
- 20~250VAC / VDC, 50/60Hz
- Whole metal construction, sturdy and durable .
- Self-learning function. I can directly detect the density of different medium via the buttons.
- The vibration amplitude of the fork is large which can be up to 10mm . It can shake off the low-viscosity local hanging material on the induction rod to avoid any error thus caused;
- B right red LED warning light .
- Can be used for measurement of liquid, powder, solid particals and stickly medium.
3. Technical Specification:
|
Item |
Specification |
|
Controller Casing Material |
Aluminium alloy (IP65) |
|
Power Supply |
22-60VDC, 22-220VAC, 50/60Hz |
|
Power Consumption |
DC-3W (MAX), AC-15W (MAX) |
|
Output |
DPDT 5A/250VAC or NPN/PNP |
|
O perating P ressure |
-1-40bar |
|
Installation |
v ertical or horizonta |
4. Specification of Different Models:
Each unit has individual box and the boxes are packed into one big carton, upmostely making sure that the goods are still in nice conditions when arriving at our esteemed customers.
