Quick Details
-
Brand Name:
-
LUQIANG
-
Dimension(L*W*H):
-
Customerized
-
Weight:
-
6000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Steel
Quick Details
-
Capacity:
-
10000L-50000L
-
Max Working Pressure(MPa):
-
0.02 MPa
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LUQIANG
-
Dimension(L*W*H):
-
Customerized
-
Weight:
-
6000
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Material:
-
Steel

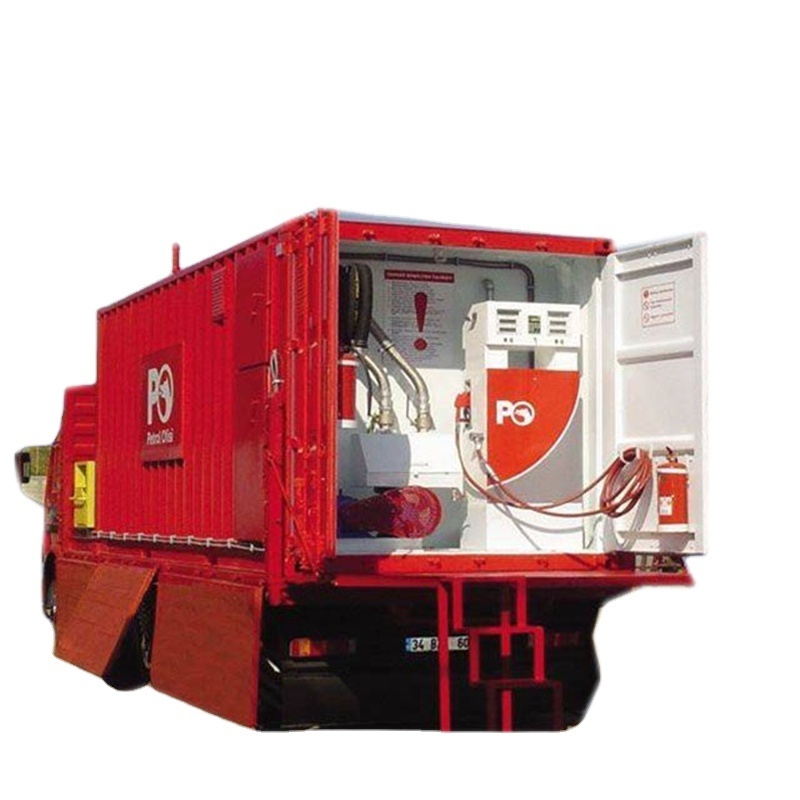

Standard Specification Of Container petrol filling station
|
Model |
Total volume (Liter) |
Container inner dimension(mm) |
Inside tank dimension(mm) |
Total weight(ton) |
|
20feet mobile fuel station |
10,000 |
5895x2350x2390 |
4500x1500x1500 |
4.23 |
|
15000 |
5895x2350x2390 |
4300x2200x2200 |
4.55 |
|
|
16000 |
5895x2350x2390 |
4500x2200x2200 |
4.74 |
|
|
20,000 |
5895x2350x2390 |
4500x2150x2150 |
4.93 |
|
|
40feet mobile fuel station |
30,000 |
12029x2350x2390 |
6800x2250x2000 |
6.95 |
|
36,000 |
12029x2350x2390 |
8150x2250x2000 |
7.25 |
|
|
40,000 |
12029x2350x2390 |
8800x2280x2000 |
7.75 |
|
|
50,000 |
12029x2350x2697 |
10500x2250x2150 |
8.39 |
|
|
55000 |
12029x2350x2697 |
10500x2280x2300 |
9.35 |
Standard equipment
- Dispensing unit
- Leakage indicator
- Control panel
- Thermal insulating materials
- Sight glass
- Thermometer
- Pump
- CIP universal cleaning device
- Static pressure transmitter
- liquid inlets and outlets
- Ventilation
-
Liquid level meter
Tank details:
1. 6 mm steel inner tank / 5 mm steel outer tank (double or single wall tank)
2. Brand fuel dispenser, oil gun, rotary joint and oil tank
3. Bottom loading system:
60 mm fast unloading connector with cover
50 mm * 10 detachable filter
Overflow proof valve
Drainage system
4. Support and tank anti-skid system
5. Emergency ventilation system (each compartment)
6. Vacuum pressure valve and the pipeline
7. Emergency cut-off valve
8. Siphon preventing valve
9. Adjustable pressure pump
10. Oil cavity
11. Fuel dispenser installed base
12. Explosion-proof hose and wiring
13. Spill-proof alarm
14. Tank manhole covers
15. The lifting rings (on request)
Tank high solid base coating
Tank high quality finishing paint
Tank customized logos or labels
Optional equipments
378 LPM/GPM oil drain pump
Oil discharge flow meter
External level gauge (one oil)
External level gauge (double oil)
Explosion-proof tank block device
-
-
