Customize Carbon Steel Nonstandard Precast Concrete Girder Beam Railway Project embedded Parts Plates

Customize Carbon Steel Nonstandard Precast Concrete Girder Beam Railway Project embedded Parts Plates

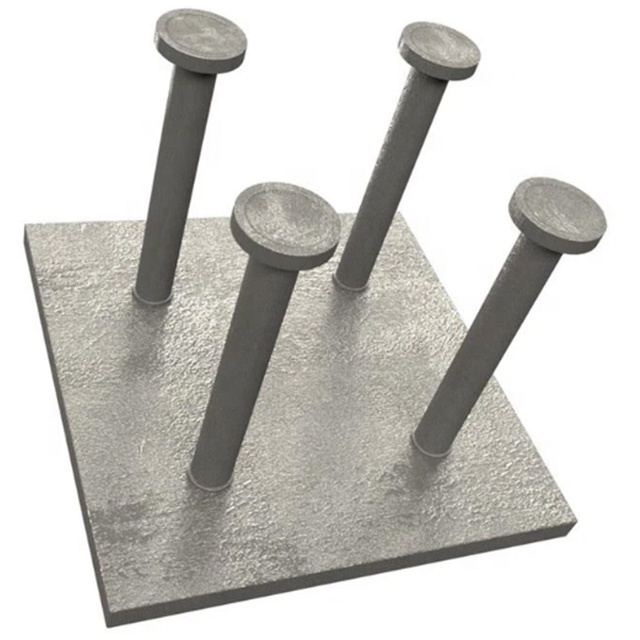

Embedded plate is actually load-bearing steel plate in civil engineering. Literally, the steel plate is used as a pressure plate to install the embedded parts of the pressure plate. After understanding what is embedded steel plate, embedded parts manufacturers will introduce the main functions and uses of embedded steel plate in detail.

First, the main functions of the embedded plate.

1. Future lightning protection and water and electricity grounding.

2. Embedded steel plates are often encountered in concrete engineering considering extended bracing. For example, after the pier column is completed, the cap beam must be made and supported. There are several ways to build scaffolding. One is to bury steel plates on both sides of the piers. When constructing girders, embedded steel plates should be connected as extended supports.

3. Embedded parts are not commonly used in general commercial housing, but they are very common in industrial buildings. They are mainly used to secure the external support structure. Secure the welded embedded part plate with bolts (holes drilled in the steel plate or connecting screws) to ensure a more stable connection to the embedded part plate.

Second, the main uses of embedded steel plate: used in the construction of railway bridge, highway bridge and sea bridge. High requirements on strength and initial performance, can withstand the load and impact of vehicles. It also needs good fatigue resistance, certain low temperature initial performance and atmospheric corrosion resistance. The space between the bracket and the pad should also be filled with epoxy mortar, which can not only ensure the density of the gap, but also achieve the same strength as the pad. After installing the bracket, bolts are used to fix the steel plate of the embedded parts at the bottom of the beam to the steel plate at the top of the bracket.

Main uses of embedded steel plate:

Used for building railway Bridges, highway Bridges, sea Bridges and so on. It is required to have high strength, initial property and withstand the load and impact of the locomotive and vehicle, and to have good fatigue resistance, a certain low temperature initial property and atmospheric corrosion resistance. The gap between the support and the cushion stone should also be filled with epoxy resin mortar, which should not only ensure the density of the gap but also achieve the same strength as the cushion stone. After the support is installed, the embedded steel plate at the bottom of the beam support is connected with the steel plate on the upper cover of the support by bolts.

The embedded steel plate is actually the support steel plate, which is literally interpreted to serve the steel plate of the support, and is the embedded part for the installation of the support. The steel plate embedded in the support of the bridge or building is called the support steel plate, which is to increase the impact resistance of the beam and increase the contact area of the stress point of the beam. The comparison text point is that the steel plate that exists on the combined surface of the two monomer components and is perpendicular to the bearing force can be called the bearing steel plate. Its function is to ensure that the action of the load is transmitted horizontally and evenly.
