Quick Details
-
Brand Name:
-
BrightSail
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customizable
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
rotor speed:
-
12000 rpm
-
MOQ:
-
1 Set
-
Motor brand:
-
Siemens/Dazhong
-
Feed Size:
-
15 mm
-
Name:
-
pin mill
-
Certification:
-
CE ISO
Quick Details
-
Output (kg/h):
-
100 - 2000 kg/h
-
Output Size (mesh):
-
40 - 1000 mesh
-
Place of Origin:
-
China
-
Brand Name:
-
BrightSail
-
Voltage:
-
Customized
-
Dimension(L*W*H):
-
Customizable
-
Weight (KG):
-
200 KG
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
rotor speed:
-
12000 rpm
-
MOQ:
-
1 Set
-
Motor brand:
-
Siemens/Dazhong
-
Feed Size:
-
15 mm
-
Name:
-
pin mill
-
Certification:
-
CE ISO
Product Description

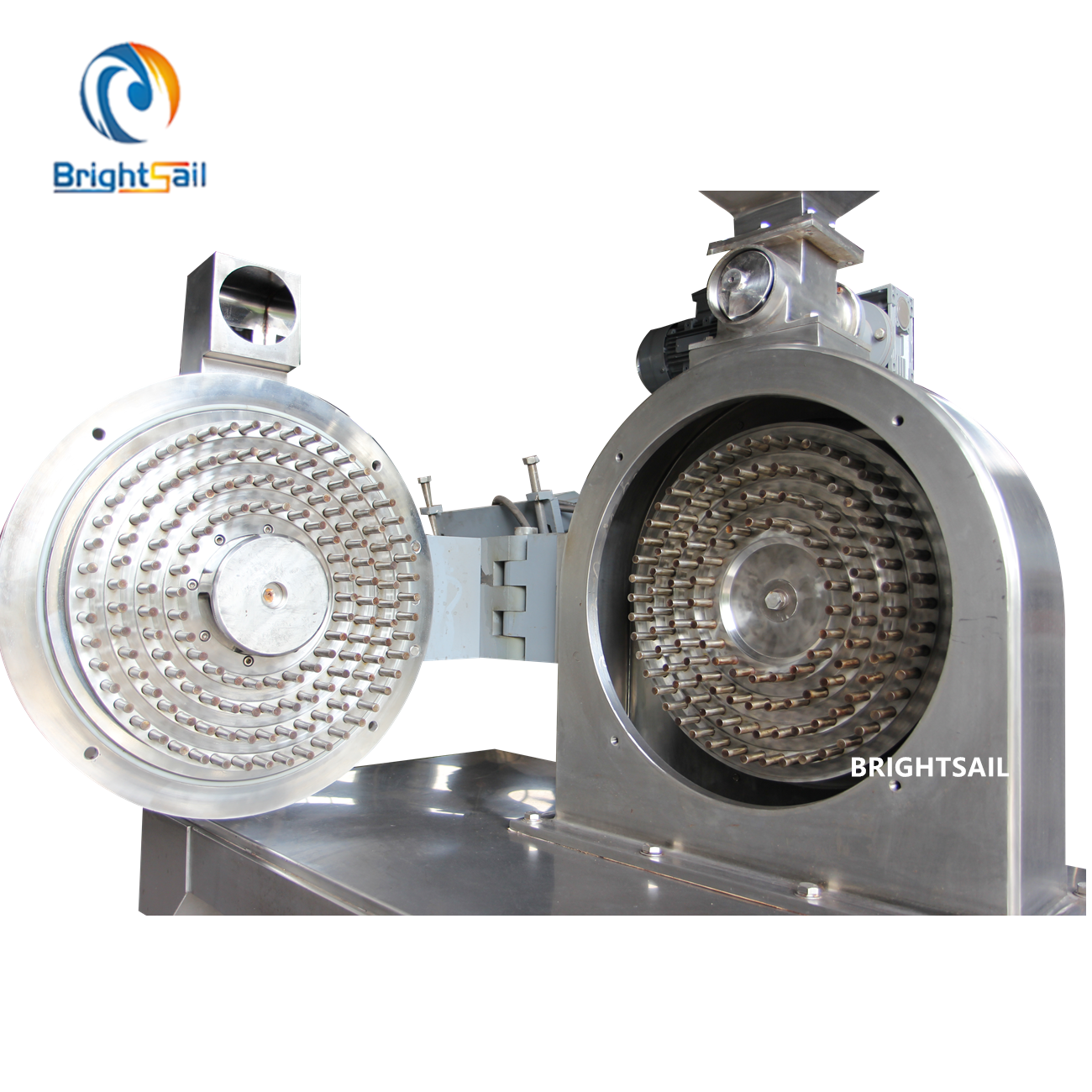

Our BSZ
Pin Mill Machine
can be used in food , chemical and other industries, mainly for pulverizing.
It is suitable for milling materials with high fat, oil or sugar into fine powder type.
Detail Images
For common materials, such as spices, grains, crystal materials, etc, it's very suitable.
Our high speed wide chamber contraplex pin mill is very suitable for grinding seeds spices, like mustards seeds,cumin seeds, coriander seeds,black pepper,clove,nutmeg...etc
It can also grind cocoa nibs into cocoa liquor,and grind chemicals into fine powder.
It can be used without a dust collecting system, just a single mill.
If you don’t want fine powder,a singe grind motor type pin mill is also optional. (for example if you need to make 60 mesh sugar powder.)
And for singe grind motor type
pin mill
, to save cost, too add a cyclone can be a simple dust remove method.
To make sure big capacity,automatic grinding, discharging and dust-free production,
A complete
pin mill
grinding unit is recommended.
Besides,
pin mill
can also be connected with liquid nitrogen, to make powder with much fat like nutmeg.
Some clients just connect liquid nitrogen to make more quality product;
For example, with liquid nitrogen connected,food powder’s smell,oil and nutrition will be preserved very well while grinding.
Technical Data
|
Model
(this sheet is for contraplex type pin mill) |
BSZ-350
|
BSZ-450
|
BSZ-550
|
BSZ-630
|
|||
|
Knife disc diameter (mm)
|
350
|
450
|
550
|
630
|
|||
|
Capacity (kg/hr) (capacity is affected a lot by raw material and target grinding size)
|
60~1000
|
120~2000
|
300~3000
|
600~4500
|
|||
|
Grind size （mesh）
|
30 ~ 1000 mesh (grind effect is affected by raw materials a lot)
|
|
|
|
|||
|
Grind motor (KW)
|
15KW+15KW
|
22KW+22KW/30KW
|
30KW+37KW
|
55KW+55KW
|
|||
|
Rotor speed (rpm)
(speed is adjustable by inverter) |
12000
|
9600
|
8400
|
6600
|
|||
Not only Pin Mill Machine !
Not only Impact Type Air Classifying Mill Spice grinding machine, we also have other different spice & herb grinding machines for different capacity and fineness mesh.
We provide overall
one-stop spice&herb product processing machines and solutions.
We provide washing machine,cutting machine,dryer,
roasting machine, crusher, grinder, pulverizer, mixer, filling and packing machines......etc
We provide washing machine,cutting machine,dryer,
roasting machine, crusher, grinder, pulverizer, mixer, filling and packing machines......etc
