Quick Details
-
Model Number:
-
slide switch
-
Max. Current:
-
11A, 13A, 16A
-
Mechanical Life:
-
50,000 cycles
-
Protection Level:
-
IP00,IP30,IP40
-
Environmental Temperature:
-
-45℃-+85℃
-
Conductive Material:
-
Silver alloy
-
Size:
-
multi
-
Operating Force (range):
-
800 +400 /-200 gf...
-
Pre-travel (range):
-
6.0mm...
-
Insulation Resistance:
-
50M ohm Min.
-
Contact Resistance:
-
50m Ohm Max.
-
Circuit:
-
NC.+NO., OFF-ON, ON-ON
-
Type of Terminals:
-
QC,PCB, Soldering
Quick Details
-
Max. Voltage:
-
125VAC, 250VAC
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Defond
-
Model Number:
-
slide switch
-
Max. Current:
-
11A, 13A, 16A
-
Mechanical Life:
-
50,000 cycles
-
Protection Level:
-
IP00,IP30,IP40
-
Environmental Temperature:
-
-45℃-+85℃
-
Conductive Material:
-
Silver alloy
-
Size:
-
multi
-
Operating Force (range):
-
800 +400 /-200 gf...
-
Pre-travel (range):
-
6.0mm...
-
Insulation Resistance:
-
50M ohm Min.
-
Contact Resistance:
-
50m Ohm Max.
-
Circuit:
-
NC.+NO., OFF-ON, ON-ON
-
Type of Terminals:
-
QC,PCB, Soldering
Product Description
mini spring limit 3 4 12 position m251 sliding slide potentiometer switch spst dpdt single pole 16 pin slide switches for toy

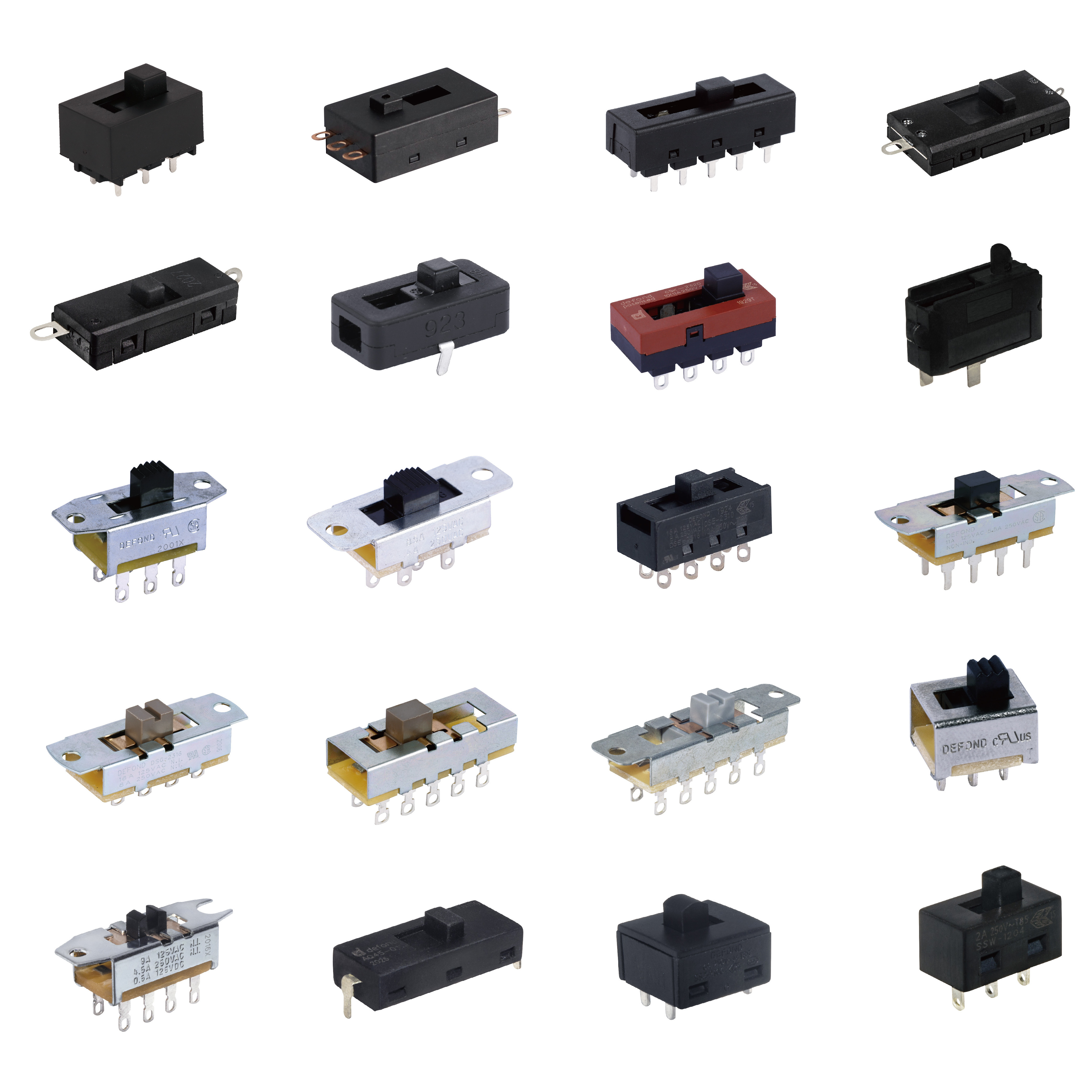

Slide switches switch on/ off by moving the slider from one position to another or some in multi positions. Defond slide switches have three major contact types and come in plastic and metal case options, with all configurations of single pole single throw (SPST), single pole double throw(SPDT), double pole single throw (DPST) and double pole double throw (DPDT).
Features
-Single pole ON-OFF slide switch
-Small size that is suitable for tiny space structure installation
-Two terminals options: PCB and soldering
-Small size that is suitable for tiny space structure installation
-Two terminals options: PCB and soldering
Application
-Beautycare appliances: Hair dryer
