Quick Details
-
Power:
-
3Kw
-
Min. Lifting Height:
-
200mm
-
Table Size:
-
2000*2000mm or custom
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
2000 kg
-
Name:
-
used cargo elevator
-
Color:
-
red, green, blue or as your requirements
-
Chain:
-
Plate chain
-
stop points:
-
2 or more
-
Lifting speed:
-
5-9m/min
-
loading unloading sides:
-
90 degree or 180 degree
-
After Warranty Service::
-
Video technical support, Online support, Spare parts,
-
Control:
-
Digital control panel
-
Material:
-
H-steel or square pipe etc
-
Painting:
-
electrostatic spraying
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JINYUN hydraulic cargo elevator
-
Power:
-
3Kw
-
Min. Lifting Height:
-
200mm
-
Table Size:
-
2000*2000mm or custom
-
Overall Dimensions:
-
custom to your needs
-
Weight:
-
2000 kg
-
Name:
-
used cargo elevator
-
Color:
-
red, green, blue or as your requirements
-
Chain:
-
Plate chain
-
stop points:
-
2 or more
-
Lifting speed:
-
5-9m/min
-
loading unloading sides:
-
90 degree or 180 degree
-
After Warranty Service::
-
Video technical support, Online support, Spare parts,
-
Control:
-
Digital control panel
-
Material:
-
H-steel or square pipe etc
-
Painting:
-
electrostatic spraying
Product Description
Customer-Design
2.

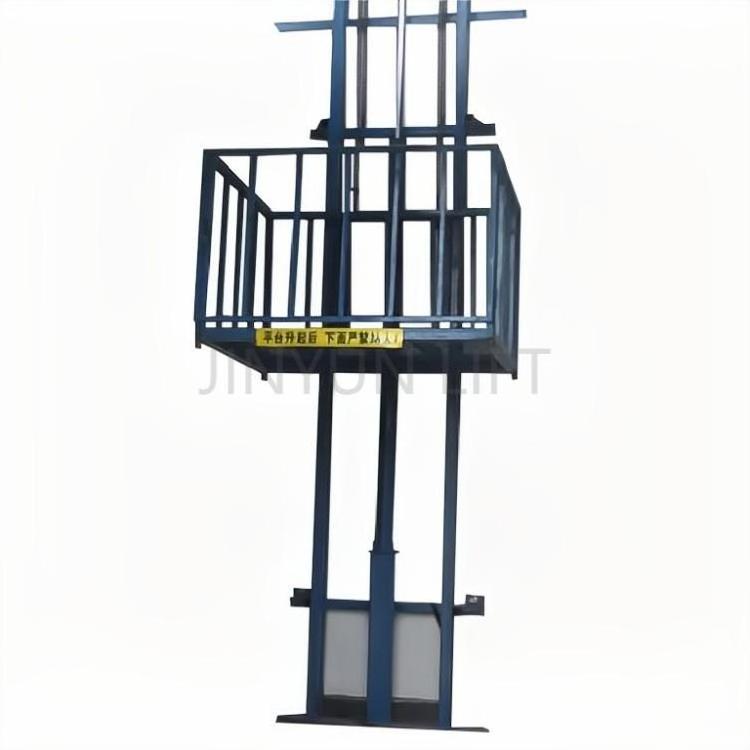

Hydraulic cargo elevator
is used widely to lift goods or pallets between different floors
in building, factory or warehouse.
in building, factory or warehouse.
3.
Load capacity, lifting height, table size
are needed before design it.
Two-rail cargo elevator/
warehouse freight elevator
-------suit for 100-1000kg capacity and smaller table size such as 1200*1000mm
Four-rail hydraulic cargo elevator/warehouse freight elevator
----Suit for big capacity and big table size. such as 3ton capacity 2*2m table size.
Inside/outside c
over mesh goods lift/material elevator with
rolling shutter door
Specification
|
Model
|
Lifting height.M
|
Capacity.KG
|
Table size.mm
|
|||
|
SJDL1-3
|
3
|
1000
|
1000*1200mm
|
|||
|
SJDL2-6
|
6
|
2000
|
2000*2000mm
|
|||
|
SJDL3-9
|
9
|
3000
|
5500*2200mm
|
|||
|
SJDL4-12
|
12
|
4000
|
3000*3000mm
|
|||
|
Hydraulic cargo elevator is customizable in loading capacity, platform size and travel height.
|
|
|
|
|||
Details Images
GUARD RAILS
Normal there are two kinds of guardrails. H-steel rail and square pipe rail. H-steel rail is more strength. Square pipe rail is more stable. You can choose as you like.
ELECTRIC CONTROL BOX
24v safety operate voltage electric control box with UP, DOWN, EMERGENCY STOP, KEY,
fault buzzer.
DIGITAL CONTROL PANEL
Platform can be called in each floor. It is hierarchical controlling and make working more efficiency. E-stop button availiable in any floor.
PLATFORM AND CAGE
Safety guardrails and swing gate. We also can cover wire mesh. It is made by strength steel and normal height 1100mm.
HYDRAULIC PUMP
Hydraulic pump is hydraulic power unit, has incredible features: small, compact structure, lightweight, highly efficient, great working pressure, reliable performance and no leaks.
HYDRAULIC CYLINDER
Hydraulic cylinder has outstanding features, includes smooth working performance, heavy workload, hand-wearing parts etc. It is heavy duty with reliable performance and no leaks
WORKING PLATFORM
Working platform of hydraulic cargo elevator is made of checked steel plate. play a role of anti-skid, to ensure safety.
RAMP
Hydraulic cargo elevator can install on ground and also can install in pit. When you install it on ground. We will supply a small ramp for loading and unloading goods and pallets easily.
LIMIT SWITCH
DELIXI or Schneider brand. Setting lifting heiht and working as kep part of interlocking system.
