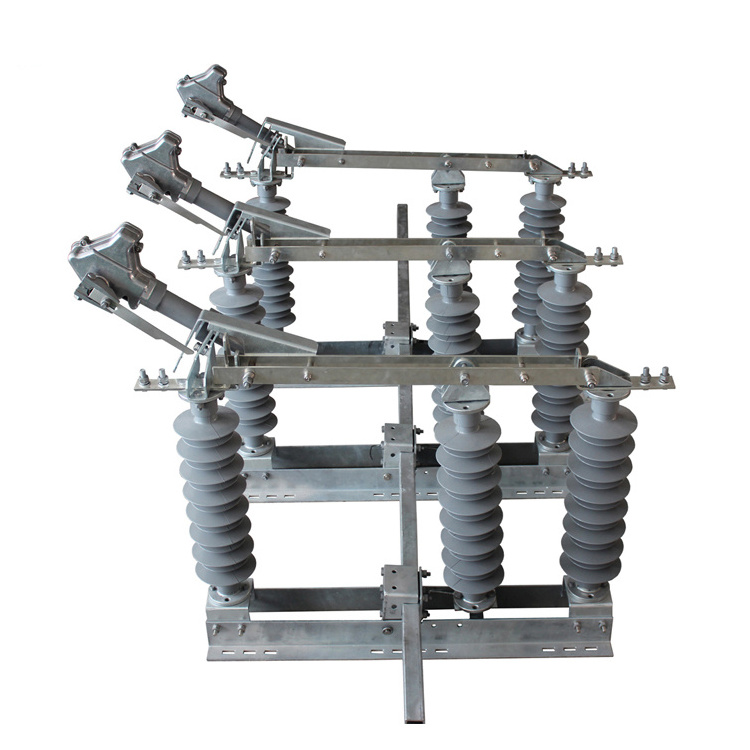

China Outdoor Electric High Voltage On Load break Isolate Switch

China Outdoor Electric High Voltage On Load break Isolate Switch

FOB Reference Price: Get Latest Price

≥10 Pieces

US $850

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Jecsany

Model Number:: LBIS type

Material:: Polymer

Color:: Grey

MOQ:: 10

Standard:: IEC 60265, IEC 129

Quick Details

Number of Pole:: 3

Rated Current:: 630

Rated Voltage:: 33

Place of Origin:: Zhejiang, China

Brand Name:: Jecsany

Model Number:: LBIS type

Material:: Polymer

Color:: Grey

MOQ:: 10

Standard:: IEC 60265, IEC 129

Product Description

General

LBIS Type outdoor on load break switch disconnector contained in this list are destined to switch stub lines and ring main lines or transformers (It can be equipped with MV HRC fuse links as short circuit protection fuction) or for switching under on load conditions. This disconnector complies with IEC/IEEE and DVE-recommendation standards especially comply with DIN VDE 0670 part 3 and IEC 60265, IEC 129.

Features

All steels are made of either in stainless steel or hot-dip galvanized steel.

1. Solid and stable base frame.
2. main contact with ice protection.
3. Polymer insulators or alternatively in porcelain.
4. Minimal sag for the line-connection between two fixed terminals.
5. Completely maintence antirust Aluminium alloy Arc chamber.
6. Switching-off procedure without external arc.
7. Short circuit making capacity under specific conditions possible
8. Fixing on the supporting structure either by clamping(free setting) or screwing (holes in the base frame)
9. Easy on-site installation and setting.
