Quick Details
-
Dimension(L*W*H):
-
2.9*2.56*3.3M
-
Weight:
-
3800 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
Max.600m
-
Mobility:
-
yes
-
Product name:
-
Core Drilling Rig
-
Max Drilling Depth:
-
600M
-
Open hole dia.:
-
325mm
-
Final hole dia.:
-
75mm
-
Mud pump:
-
BW250(Optional)
-
Certification:
-
ISO CE
-
Application:
-
Geological Exploration
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
RUIFAN
-
Voltage:
-
diesel engine
-
Dimension(L*W*H):
-
2.9*2.56*3.3M
-
Weight:
-
3800 KG
-
Marketing Type:
-
New Product 2023
-
Drilling Depth:
-
Max.600m
-
Mobility:
-
yes
-
Product name:
-
Core Drilling Rig
-
Max Drilling Depth:
-
600M
-
Open hole dia.:
-
325mm
-
Final hole dia.:
-
75mm
-
Mud pump:
-
BW250(Optional)
-
Certification:
-
ISO CE
-
Application:
-
Geological Exploration
Products Description

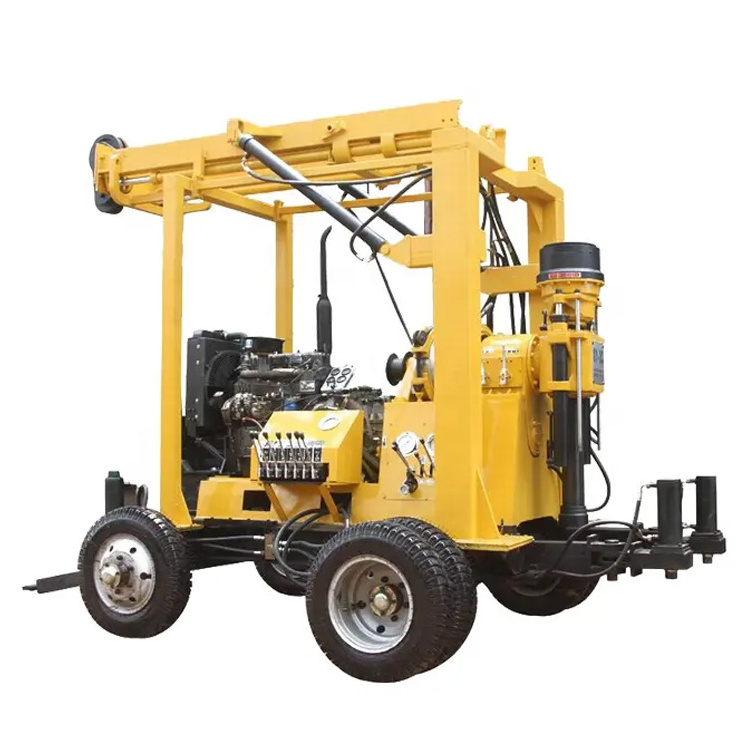

XYX-3 mobile water well drilling rig hydraulic exploration core drilling rig
XYX-3 Trailer mounted drilling rig,this machine also adopt 1.5m high hydraulic jacks that load and unload machine from
truck,Hydraulic drill mast saves the workers labor and improve the working efficiency.
1. The XYX-3 drilling rig is equipped with wheeled walking mechanism and hydraulic cylinder support, which is convenient for the whole machine to be relocated and easy to adjust the level of the drilling rig.
2. XYX-3 Using the ball card holding mechanism to replace chuck,can implement non-stop down rod,convenient operation,safe and reliable.
3. XYX-3 With oil pressure feeding mechanism to improve drilling efficiency.
4. The pressure gauge is provided with the pressure gauge of the bottom of the hole, so it is easy to master the hole in the hole.
5. The lifting and falling tower is hydraulic operation, which is convenient and reliable.
6. The diesel engine uses electric start to reduce the labor intensity of the worker.
Product Parameter
|
XYX-3 Trail Mounted Core Drilling Rig
|
|
|
||
|
The whole machine parameters
|
|
|
||
|
Model
|
XYX-3
|
XYX-200
|
||
|
Drill hole depth
|
600m
|
200m
|
||
|
Maximum opening diameter
|
300mm
|
300mm
|
||
|
Final hole diameter
|
Φ75mm
|
Φ75mm
|
||
|
Drill pipe diameter
|
Φ50,60mm
|
Φ50,60mm
|
||
|
Borehole inclination
|
90°- 65°
|
90°- 75°
|
||
|
Power(diesel engine)
|
38/2400kw/r/min
|
15/2200kw/r/min
|
||
|
Motor
|
22kw
|
|
||
|
Vertical shaft
|
|
|
||
|
Vertical spindle speed
|
30-1050r/min
|
64-557r/min
|
||
|
Vertical stroke
|
600mm
|
450mm
|
||
|
Hoist
|
|
|
||
|
Single line lifting capacity
|
30KN
|
24KN
|
||
|
Single rope lifting speed
|
0.5-1.9m/s
|
0.12-0.95m/s
|
||
|
Drum diameter
|
Φ305mm
|
Φ140mm
|
||
|
Diameter of wire rope
|
Φ12.5mm
|
Φ13mm
|
||
|
Wire rope capacity
|
65m
|
35m
|
||
|
Mud pump
|
|
|
||
|
Model
|
BW250
|
BW160
|
||
|
Flow
|
250L/min
|
160L/min
|
||
|
Maximum pressure
|
17Mpa
|
1.2Mpa
|
||
|
Reciprocating frequency
|
93times/min
|
93times/min
|
||
|
Water inlet diameter
|
Φ75mm
|
Φ51mm
|
||
|
Water to exit diameter
|
Φ50
|
Φ32mm
|
||
Details Images
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
