Quick Details
-
Brand Name:
-
AELAB
-
Model Number:
-
CMS-M
-
Quality Certification:
-
ce & iso
-
Product name:
-
Stethoscope
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support
-
Place of Origin:
-
China
-
Brand Name:
-
AELAB
-
Model Number:
-
CMS-M
-
Quality Certification:
-
ce & iso
-
Product name:
-
Stethoscope
Product Description
Instructions
:

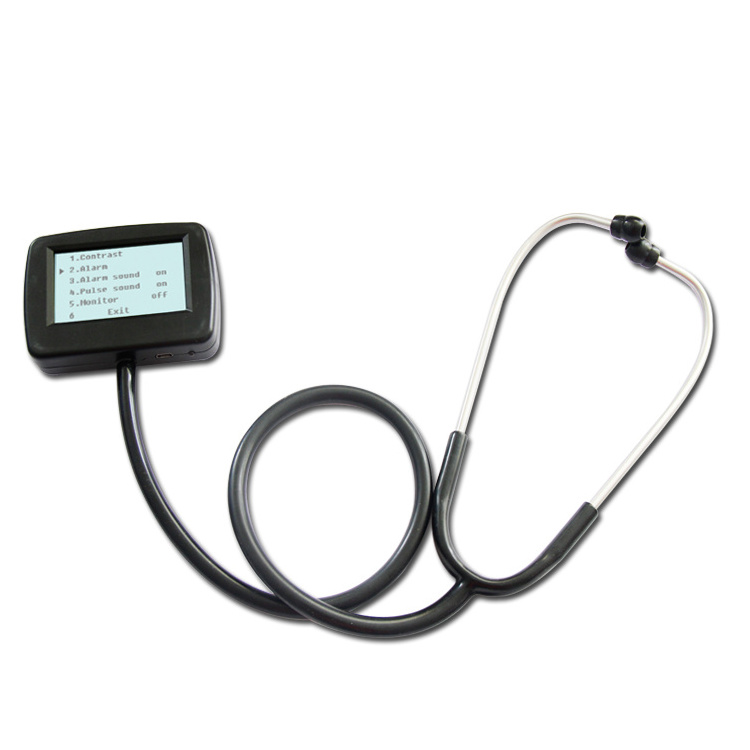

CMS-M is a kind of multi-functional visual stethoscope It is added with collection ECG waveform function on the basis of the traditional medicinal stethoscope.It can display the heart rate, the pulse oxygen Saturation and pulse rate can also be monitored through SpO2 probe. The product is applicable for family, hospital, private Clinique, community medical treatment.etc.
Main features
:
Regular stethoscope
Compact and portable,easy to use
Display of ECG waveform, heart rate,SpO2 ,pulse rate ,pulse waveform
Adjustable screen contrast
Alarm for SpO2 and pulse rate exceeding limits
Low power consumption
Main Parameters
:
|
Heart Rate measuring range
|
30bpm~300bpm ,
|
|
Accuracy
|
±2 bpm or ±2%(select larger)
|
|
SpO2 measuring range
|
0%~100% (the resolution is 1%),
|
|
Accuracy
|
70%~100% ±2% ,below 70% unspecified
|
|
Pulse Rate measuring range
|
30bpm~250bpm
|
|
Accuracy
|
±2 bpm or ±2%(select larger)
|
|
Resistance to surrounding light
|
The deviation between the value measured in the condition of man-made light and indoor natural light and that of darkroom is less
than ±1%.
|
|
Measurement Performance in Weak Filling Condition
|
SpO2 and pulse rate can be shown orrectly when pulse-filling ratio is 0.4%. SpO2 error is ± 4%, pulse rate error is ±2 bpm or±2%
(select larger).
|
|
Display
|
2.7" LCD
|
|
Power consumption
|
≤60mA
|
|
Voltage
|
DC 3.6 ~ 4.2V
|
|
Power Supply
|
3.7V Lithium Battery
|
|
Battery working hour
|
It can last more than 20 hours when the power is full.
|
|
Safety Type
|
Internally powered equipment,B Type
|
Accessories
:
A User Manual
A power adapter
A data line
An oximeter probe (optional, BF applied part )
