Quick Details
-
Measurement:
-
151*195*48 mm
-
Display:
-
3.5 Inch 240*320pixel/262
-
Housing material:
-
Engineering plastics
-
Communication:
-
WiFi/3G/4G/CDMA1x/Dail-Up
-
Voice Prompt:
-
16KHz,16bit single channel voice prompt
-
Working Frequency:
-
13.56Mhz
-
Color:
-
Black, Blue, Orange, or Customized
-
Application:
-
Public Transportation, Scenic Spot, Balance inquiry, Enterprise Bus
-
Certification:
-
CE, FCC, CCC, ISO9001:2008, EMV_1
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Warranty:
-
1 Year
-
Touch Screen Type:
-
Not Touch Screen
-
Function:
-
SDK
-
Operation System:
-
Linux2.6.17.14
-
CPU:
-
ARM9 core processor
-
Hard Disk Capacity:
-
32MBytes RAM,128MB Flash
Quick Details
-
Brand Name:
-
CARDLAN
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-

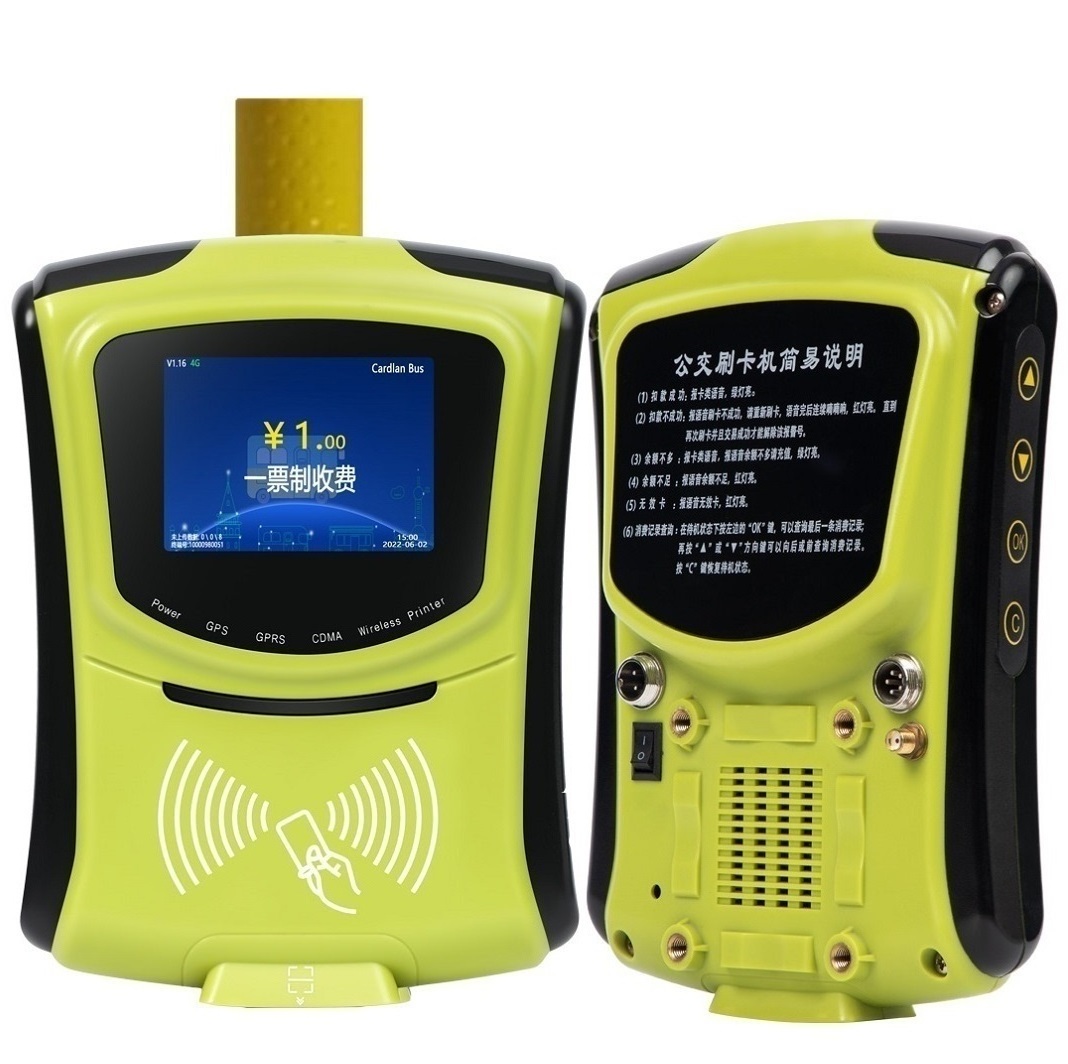

Bus pos machine validator
-
Measurement:
-
151*195*48 mm
-
Display:
-
3.5 Inch 240*320pixel/262
-
Housing material:
-
Engineering plastics
-
Communication:
-
WiFi/3G/4G/CDMA1x/Dail-Up
-
Voice Prompt:
-
16KHz,16bit single channel voice prompt
-
Working Frequency:
-
13.56Mhz
-
Color:
-
Black, Blue, Orange, or Customized
-
Application:
-
Public Transportation, Scenic Spot, Balance inquiry, Enterprise Bus
-
Certification:
-
CE, FCC, CCC, ISO9001:2008, EMV_1
-
After-sales Service Provided:
-
Video technical support, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support
-
Warranty:
-
1 Year
-
Touch Screen Type:
-
Not Touch Screen
-
Function:
-
SDK
-
Operation System:
-
Linux2.6.17.14
-
CPU:
-
ARM9 core processor
-
Hard Disk Capacity:
-
32MBytes RAM,128MB Flash
Technical specifications:
| Model: | CL-1306 card reader for public transportation | Data capacity: |
259840 pcs of detailed data for console storage, unlimited data at GPRS storage |
| Dimension: |
151*195*48 mm |
Card capacity: | 91,880,000 pcs |
| Material: | Engineering Plastics(Anti static electricity coating design, be protected from high-frequency interference) | Black list: | 91,880,000 pcs (download thru PC with USB) |
| Display: |
3.5 inch LCD display , 320x240 |
Working Voltage: | DC 8V-50V |
| Operating system: | Linux2.6.17.14 | Data collection: | WIFI / GPRS wireless collection and USB local collection |
| CPU: |
ARM9 core processor ,240Mhz |
Operating temperature: | -40℃~75℃ |
| Memory: |
32MBytes SDRAM, 128MB NAND Flash main memory |
Storage temperature: | -40℃~85℃ |
|
Indicator light : |
Red and green |
Humidity: | 0-90% RH non condensing |
| Sound prompting: |
Buzzer , Single channel loudspeaker |
Keypad: |
4 operation button, on the rear side of the machine |
| Flash Memory: | 64 Mbyte, can be extended to 256 Mbyte | RFID: | Can read and write ISO14443 Type A B |
| Read card distance: | 0~50mm | Frequency: | 13.56MHz |
| Supporting card: | Mifare 1 card, Mifare DESfire EV1, CPU card | Interfaces/Connectors: | RS232, USB |
|
Printing module : |
Support external
POS58
printer
(need 5 pinaviation plug turn DB9 cable) |
Width of receipt: | Thermal paper, 58 mm |
| Power consumption: | ≤10 W | Communication Modules: | GPRS(900Mhz/1800Mhz), or 2GCDMA(800Mhz),4G,3G, W CDMA |
| WIFI: | Supporting 802.11n/b/g standards,150Mbps,2.4Ghz |
Voice Prompt : |
16KHz,16bit single channel voice prompt |
| Upgrading: | Connect USB to PC, upgrade with GPRS | Position way : |
GPS positioning |
|
Working Mode : |
Stand-alone or connect to server | Warning Function: | Warning when card balance is insufficient or data memory is full |
PROVIDE FREE SDK , SUPPORT SECONDARY DEVELOPMENT TO TOPOLOGY YOUR OWN SPECIFIC FUNCTION !
Package for Bus card reader:
1. Each device with foam into a box.
2. 1 unit / gift box; 21 boxes / carton, carton size 57*51*30 cm.
3. 60 set of cables / carton, 56 kgs / carton, carton size 58*38*51 cm.
4. Packed as customers' request.
