Quick Details
-
Name:
-

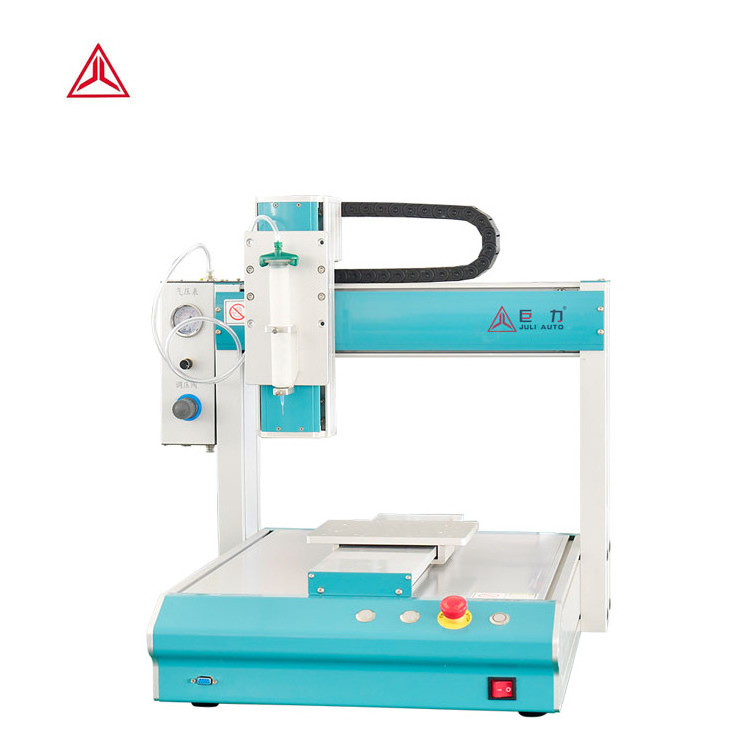

Glue dispensing Robot
-
tem name:
-
automatic glue dispensing machine/Dispensing Machine
-
Dimensions:
-
595/560/660mm
-
X axis travel:
-
300mm
-
Application:
-
3 axis dispensing robot
-
Keywords:
-
dispensing machine
-
Weight:
-
45kg
-
Y axis travel:
-
300mm
-
Z axis travel:
-
100mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JULIAUTO, JULI
-
Weight (KG):
-
90
-
Name:
-
Glue dispensing Robot
-
tem name:
-
automatic glue dispensing machine/Dispensing Machine
-
Dimensions:
-
595/560/660mm
-
X axis travel:
-
300mm
-
Application:
-
3 axis dispensing robot
-
Keywords:
-
dispensing machine
-
Weight:
-
45kg
-
Y axis travel:
-
300mm
-
Z axis travel:
-
100mm
Product Description
|
一、Parameter:
|
|
|
|
|
|
|
|
|||||||
|
Model
|
|
JL-D221
|
JL-D331
|
JL-D441
|
JL-D551
|
JL-D4331
|
JL-D5331
|
|||||||
|
Number of controlled axes
|
|
Three-axis
|
|
|
|
Four-axis
|
|
|||||||
|
Effective travel
|
X axis
|
200mm
|
300mm
|
400mm
|
500mm
|
400mm
|
500mm
|
|||||||
|
|
Y1 axis
|
200mm
|
300mm
|
400mm
|
500mm
|
300mm
|
300mm
|
|||||||
|
|
Y2 axis
|
|
|
|
|
300mm
|
300mm
|
|||||||
|
|
Z axis
|
50mm
|
100mm
|
100mm
|
100mm
|
100mm
|
100mm
|
|||||||
|
Transmission mode
|
Double-track timing belt
|
|
|
|
|
|
|
|||||||
|
Power source
|
Stepper motor
|
|
|
|
|
|
|
|||||||
|
Top speed
|
500mm/sec
|
|
|
|
|
|
|
|||||||
|
Repeat accuracy
|
±0.05mm
|
|
|
|
|
|
|
|||||||
|
Maximum load
|
X/Y/Z 5kg/5kg/2kg
|
|
|
|
|
|
|
|||||||
|
Control System
|
Hand-held three-axis control system
|
|
|
|
|
|
|
|||||||
|
File storage space
|
400 sets of processing files, up to 9999 points in a single file.
|
|
|
|
|
|
|
|||||||
|
Power
|
AC110-250V 50-60HZ 350W
|
|
|
|
|
|
|
|||||||
|
Size
|
L
|
475mm
|
520mm
|
620mm
|
720mm
|
620mm
|
720mm
|
|||||||
|
|
W
|
410mm
|
585mm
|
685mm
|
785mm
|
585mm
|
585mm
|
|||||||
|
|
H
|
522.5mm
|
596.5mm
|
596.5mm
|
596.5mm
|
596.5mm
|
596.5mm
|
|||||||
|
Weight
|
|
35kg
|
44kg
|
59kg
|
65kg
|
63kg
|
62kg
|
|||||||
|
二、Main accessories：
|
|
|
|
|
|
|
|
|||||||
|
1
|
motor
|
|
|
Stepper motor
|
|
|
|
|||||||
|
2
|
Drive
|
|
|
YAKO (China)
|
|
|
|
|||||||
|
3
|
Linear Guides
|
|
|
Shangyin (Taiwan) X / Y axis dual rail, Z axis single rail
|
|
|
|
|||||||
|
4
|
Three-axis control system
|
|
|
Quanzhi (China)
|
|
|
|
|||||||
|
5
|
Power supply
|
|
|
Ming Wei (China)
|
|
|
|
|||||||
