Quick Details
-
Brand Name:
-
ALDM
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1020X700X1800mm
-
Weight (T):
-
1.5 T
-
Motor Power (kw):
-
7.5 kw
-

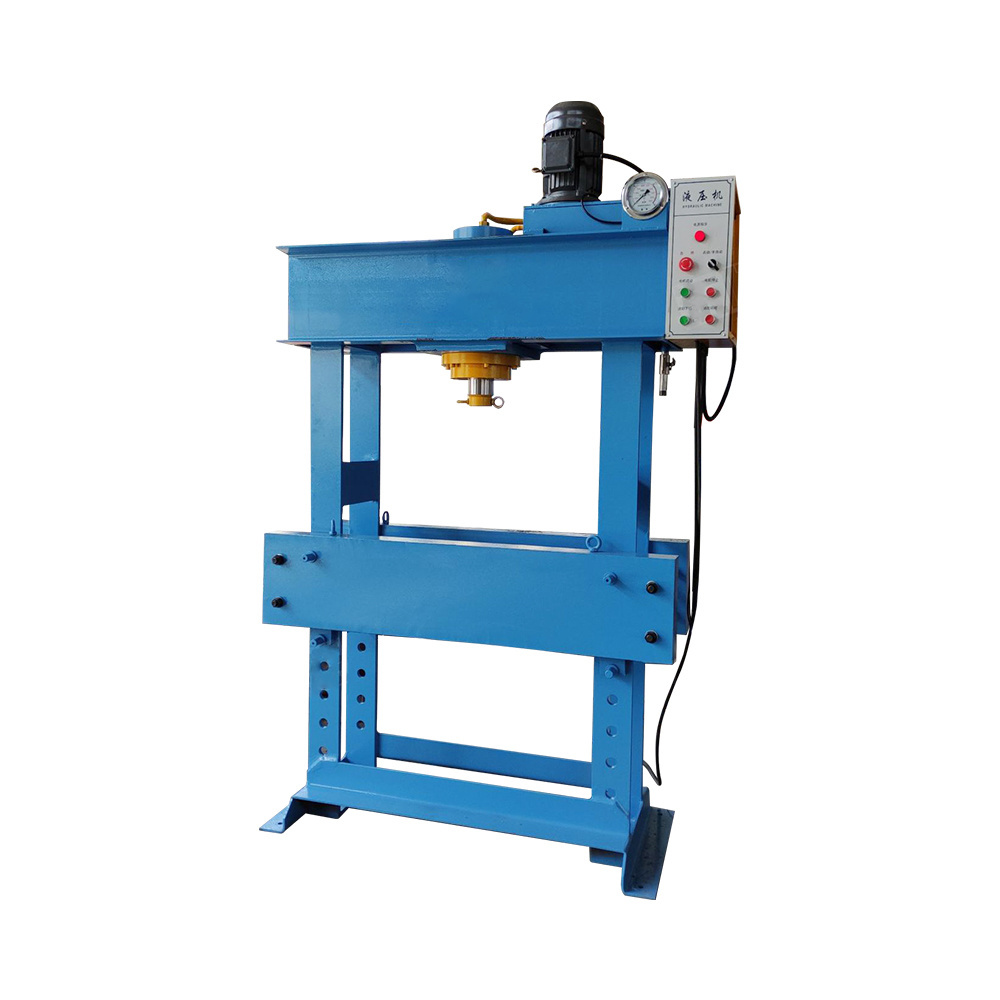

Product name:
-
Frame Hydraulic Press
-
Power Source:
-
Hydraulic
-
Keyword:
-
Hydryalic Press
-
Function:
-
Metal Processing
-
Normal pressure:
-
1000KN
-
Hydraulic pressure:
-
30Mpa
-
Stroke of cylinder:
-
350mm
-
Working speed:
-
7.6--10.5mm/s
-
Power:
-
7.5kw
-
Table Size:
-
650x440mm
Quick Details
-
Machine Type:
-
H Frame Hydraulic Press
-
Return Force (kN):
-
1000 kN
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
ALDM
-
Voltage:
-
220v/380v
-
Dimension(L*W*H):
-
1020X700X1800mm
-
Weight (T):
-
1.5 T
-
Motor Power (kw):
-
7.5 kw
-
Product name:
-
Frame Hydraulic Press
-
Power Source:
-
Hydraulic
-
Keyword:
-
Hydryalic Press
-
Function:
-
Metal Processing
-
Normal pressure:
-
1000KN
-
Hydraulic pressure:
-
30Mpa
-
Stroke of cylinder:
-
350mm
-
Working speed:
-
7.6--10.5mm/s
-
Power:
-
7.5kw
-
Table Size:
-
650x440mm
Products Description
|
Model
|
Max.
pressure (KN) |
Hydraulic presssure
(Mpa) |
Stroke of cylinder rod(mm)
|
Working speed (mm/s)
|
Size of worktable (mm)
|
Adjustment distance or fowktable (mm×n)
|
Motor power
(kw) |
Net weight (kg)
|
|
63/30
|
630
|
30
|
300
|
5.8/H7.7
|
890×400
|
250×3
|
4
|
1050
|
|
80/30
|
800
|
30
|
300
|
4.6/H6.1
|
890×415
|
250×3
|
4
|
1325
|
|
100/35
|
1000
|
30
|
350
|
7.6/H10.5
|
850×447
|
250×3
|
7.5
|
1580
|
|
150/35
|
1500
|
30
|
350
|
4.9/H6.7
|
1000×530
|
300×2
|
7.5
|
2410
|
|
200/35
|
2000
|
30
|
350
|
3.9/H5.8
|
1000×550
|
300×2
|
7.5
|
3105
|
|
300/35
|
3000
|
28.5
|
350
|
5.9/H8.5
|
1000×660
|
300×2
|
22
|
4200
|
Main features:
1. Optimally designed steel-frame structure, is sturdy and durable
2. Single piston double-acting hydraulic oil cylinder, is durable
3. Up stroke and down stroke of cylinder rod controlled by manual, is convenient and flexible
4. Beam of work platform moves lifting device from up to down, is convenient and easy
5. Piston rod chromium plating laye 5μm
6. Sealing element grade A
7. Stroke prevention pain & stainless steel strip is standard
1. Optimally designed steel-frame structure, is sturdy and durable
2. Single piston double-acting hydraulic oil cylinder, is durable
3. Up stroke and down stroke of cylinder rod controlled by manual, is convenient and flexible
4. Beam of work platform moves lifting device from up to down, is convenient and easy
5. Piston rod chromium plating laye 5μm
6. Sealing element grade A
7. Stroke prevention pain & stainless steel strip is standard
Standard equipments:
1. Full-closed slide plate
2. V block
3. Work table
4. Back protection cover
5. Beam of work platform
1. Full-closed slide plate
2. V block
3. Work table
4. Back protection cover
5. Beam of work platform
