Quick Details
-
Voltage:
-
220/380V
-
Power:
-
45KW
-
Dimension(L*W*H):
-
2800*1700*1400mm
-
Weight:
-
3000 kg
-
Name:
-
Pulp Egg Tray Machine
-
Finished Products:
-
Egg Tray Egg Carton box
-
Raw material:
-
Waste Paper
-
Application:
-
Paper Egg Tray Moulding
-
Function:
-
Produce Egg Tray
-
Production:
-
Paper Pulp Package
-
Type:
-
Automtic egg tray machine
-
Usage:
-
Making Paper Plate Dish Tray
-
Capacity:
-
1000-7000 PCS/hour (9 Inch Round Dish)
-
Mould type:
-
6 cells,10 cells,12 cells,18 cells,30cells or customized
Quick Details
-
Production Capacity:
-
1000-7000pcs/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YB
-
Voltage:
-
220/380V
-
Power:
-
45KW
-
Dimension(L*W*H):
-
2800*1700*1400mm
-
Weight:
-
3000 kg
-
Name:
-
Pulp Egg Tray Machine
-
Finished Products:
-
Egg Tray Egg Carton box
-
Raw material:
-
Waste Paper
-
Application:
-
Paper Egg Tray Moulding
-
Function:
-
Produce Egg Tray
-
Production:
-
Paper Pulp Package
-
Type:
-
Automtic egg tray machine
-
Usage:
-
Making Paper Plate Dish Tray
-
Capacity:
-
1000-7000 PCS/hour (9 Inch Round Dish)
-
Mould type:
-
6 cells,10 cells,12 cells,18 cells,30cells or customized
Products Description

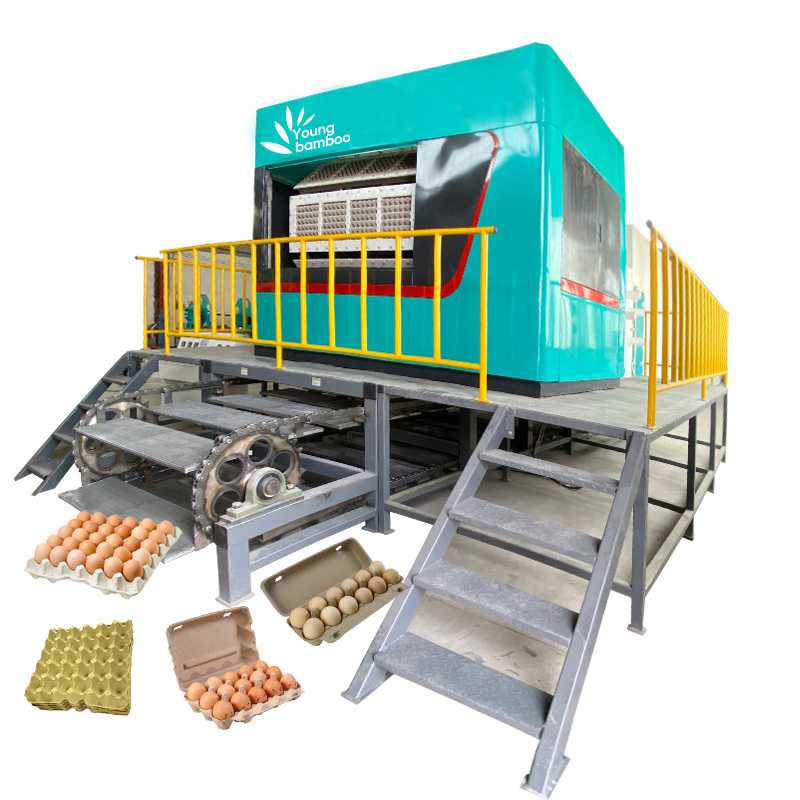

Automatic egg box machine waste pulp paper recycle line egg tray making machine
The pulp molding system can use all kinds of waste paper to produce high quality molded fibre products. Such as, egg trays, egg boxes, apple trays, meat portion trays, vegetable portion trays, fruit portion trays, strawberry punnets, kidney trays, wine packs, can trays, seed pots, seed cubes, etc.
Product Paramenters
|
Machine Model
|
1*3/1*4
|
3*4/4*4
|
4*8/5*8
|
5*12/6*8
|
|
Yield(p/h)
|
1000-1500
|
2500-3000
|
4000-6000
|
6000-7000
|
|
Waste Paper(kg/h)
|
80-120
|
160-240
|
320-400
|
480-560
|
|
Water(kg/h)
|
160-240
|
320-480
|
600-750
|
900-1050
|
|
Electricity(kw/h)
|
36-37
|
58-78
|
80-85
|
90-100
|
|
Workshop Area
|
45-80
|
80-100
|
100-140
|
180-250
|
|
Drying Area
|
No need
|
216
|
216-238
|
260-300
|
Note:1.More plates ,more less water use
2.Power means the main parts,not include dryer line
3.All fuel use proportion are calculated by 60%
4.single dryer line length 42-45 meter,double layer 22-25 meter,multi layer can save workshop area
2.Power means the main parts,not include dryer line
3.All fuel use proportion are calculated by 60%
4.single dryer line length 42-45 meter,double layer 22-25 meter,multi layer can save workshop area
High precision servo motor drive,high efficiency and energy-saving drying line.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
1,Use precision reducer servo motor forming and transferring to ensure smiith and fast operation.
2,Use absolute encoder to achieve accurate correction.
3,The use of bronze casting static and dynamic ring structure is more suitable for product dewatering process.
4,The use of mechanical structure to ensure that the mold close on both sides evenly.
5,Large capacity; Water content is low;Save the cost of drying.
Feature Advantage
The raw materials are mainly from various pulp boards such as reed pulp, straw pulp, slurry, bamboo pulp and wood pulp, and waste paperboard, waste paper box paper, waste white paper, paper mill tail pulp waste, etc. Waste paper, widely sourced and easy to collect. The required operator is 5 people/class: 1 person in the pulping area, 1 person in the molding area, 2 people in the cart, and 1 person in the package.
1.Pulping system
Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp and store it in the storage tank.
2. Forming system
After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded product is blown from the molding die to the rotary mold, and is sent out by the transfer mold.
3. Drying system
(1) Natural drying method: The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy
4. Finished product auxiliary packaging
(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor
(2) Baler
(3) Transfer conveyor
