Quick Details
-
Brand Name:
-
UHV
-
Model Number:
-
HTBYC-4000
-
Product name:
-

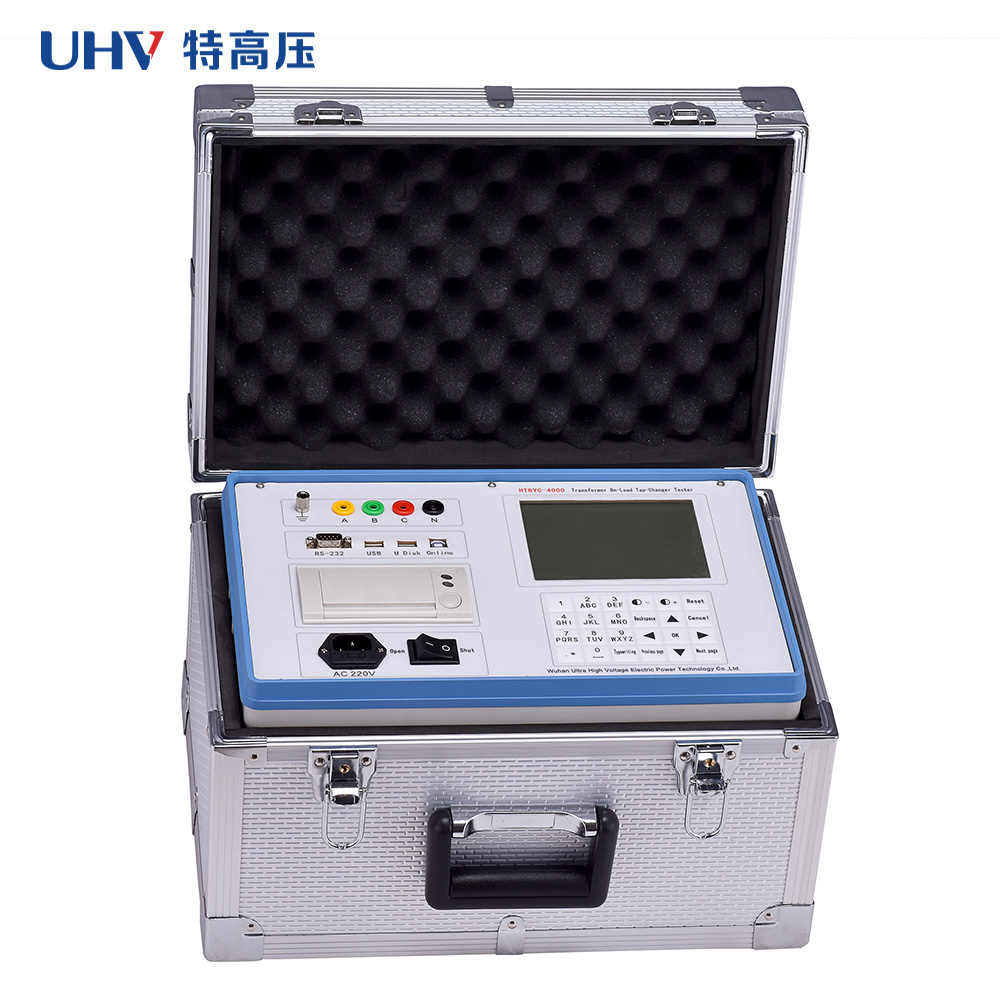

Transformer Tape-changer Tester
-
Output current:
-
≥1A, 3 channels
-
Transition resistance:
-
0.5Ω~20Ω
-
Transition time:
-
≤250ms
-
Accuracy:
-
0.01Ω(resistance) ,0.1ms(time)
-
Resolution:
-
±(5%+3 digitals)(resistance)
-
Storage:
-
U disk storage, local storage 1G
-
Power supply:
-
AC220V±10% ,50±1Hz
-
Packing:
-
Wooden carton
Quick Details
-
Warranty:
-
1 years, 1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
UHV
-
Model Number:
-
HTBYC-4000
-
Product name:
-
Transformer Tape-changer Tester
-
Output current:
-
≥1A, 3 channels
-
Transition resistance:
-
0.5Ω~20Ω
-
Transition time:
-
≤250ms
-
Accuracy:
-
0.01Ω(resistance) ,0.1ms(time)
-
Resolution:
-
±(5%+3 digitals)(resistance)
-
Storage:
-
U disk storage, local storage 1G
-
Power supply:
-
AC220V±10% ,50±1Hz
-
Packing:
-
Wooden carton
Product Description
With transformer, pick up switch with transformer is the only moving part connecting with pick up. Therefore, the detection of pick up switch with transformer has drawn more and more attention. According to line mark DL/T846.8 -- 2004 pick up switch test instrument with load points, it is required to check the sequence of actions of pick up switch with load points and measurement switching time, etc.. Therefore, our company has successfully developed Transformer on-load tap switch tester, The Transformer on - load tap switch testerMainly informs the for measurement the Transformer with the load pick up switch transition waveform, the transition time, instantaneous transition to hold the value, Three-phase synchronism and so on.
Instrument has high intelligence, all Chinese menu tips, and operation is simple. Small instrument volume, light weight and strong anti-interference ability greatly reduce the labor intensity of scenework personnel. It is an ideal instrument for transformer manufacturing industry to ensure safe production and improve product quality.
Product Feature
1. Vertical chassis structure, light weight, easy to carry.
2. Built-in embedded pc-104 industrial control computer, fast speed, large storage capacity
3. Built-in precise Constant current source, with perfect and reliable protection circuit
4. 6 channel high-speed data sampling
5. 5.7 "LCD with backlight width and temperature, clear show under sunlight
6. Graphics and text show results
7. T9 input method can input word, word, Chinese word and various symbols
8. Capacity1G, can store tens of thousands of grouptestdata
9. Pick upU disk storage function, storage more data
10. U diskdata synchronization function, convenient data exchange
11. 11. Tree storage structure, by station name, number, sub pick up bit storage, data query convenient
12. Built-in panel type thermal printer
Product Paramenters
|
Output current
|
≥1A,3 channel
|
|
Data sampling
|
sampling channel:6 channel
|
|
|
sampling frequency:10kHz/s
|
|
Measuring range
|
transition resistance:0.5Ω~20Ω
|
|
|
transition time:≤250ms
|
|
Resolution
|
resistance:0.01Ω
|
|
|
time:0.1ms
|
|
Measurement precision
|
transition resistance:±(5%+3 digital)
|
|
|
transition time:±(0.1%+1 digital)
|
|
Storage model
|
U disk storage,machine storage 1G
|
|
Dimensions
|
350mm×230mm×200mm
|
|
Weight
|
5kg
|
|
Environment temperature
|
-10℃~50℃
|
|
Humidity
|
≤85%RH
|
|
Working power supply
|
AC220V±10%
|
|
power supply frequency
|
50±1Hz
|
