Night Vision Electro-optical and Infrared Thermal EO/IR UAV Drone Camera With Tracking and Geotagging

YOUR PURCHASE INCLUDES

1 x Eagle Eye-10IE 10X zoom camera and thermal camera

1 x Eagle Eye-10IE 3-axis high stabilized gimbal system

INTRODUCTION

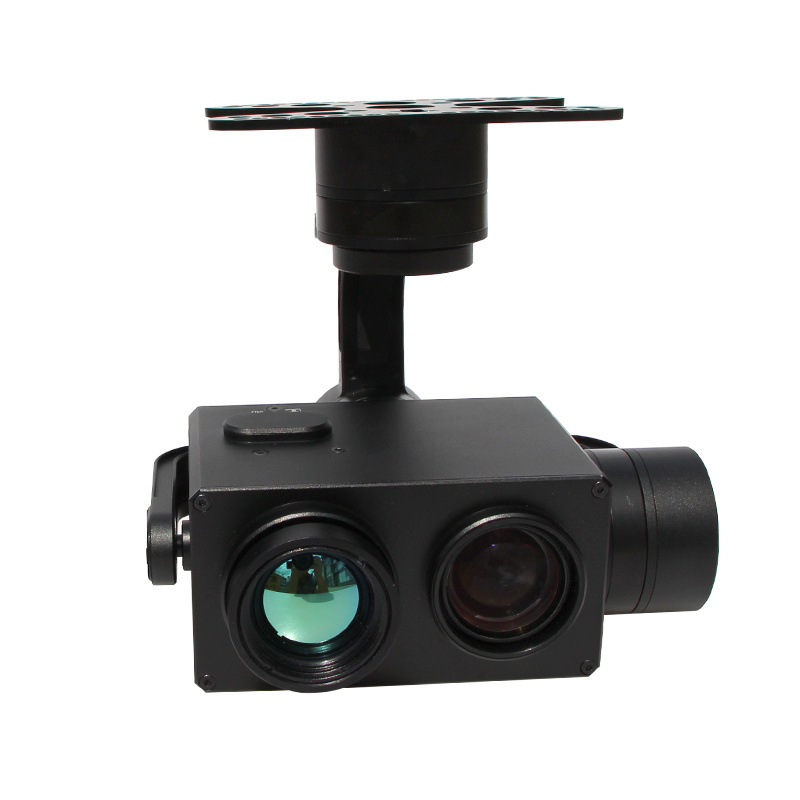

Eagle Eye-10IE is a 3-axis high stabilized gimbal with EO(electro-optical) and IR(infrared) sensors for drone inspection,surveillance,search and rescue applications.The 10X zoom camera provides 1080P 60FPS full HD video streaming and up to 120X zoom capability,which will enable you to capture every detail in the air.While the thermal camera allows you to detect targets in the night or low visibile conditions,and provides you with priceless information when you are carrying out missions like inspecting or monitoring objects.High-performance 3-axis gimbal is developed based on FOC(field-oriented control) technology,which will give you crystal clear video footage.

Eagle Eye-10IE is using the most advanced tracking technology,and it works on both daylight sensor and thermal sensor,with which you can track targets freely during daytime and night time.How it works:put the object you want to track in the screen,move the cursor to the object and lock it via controller,and then the camera will track it automatically.

Another big feature for Eagle Eye-10IE is that the gimbal will geotag the video streaming and photos,also gimbal Yaw/Pitch angle,height,time information will be displayed on camera OSD,this is really important when you are conducting missions like rescue and search.

Eagle Eye-10IE provides an outstanding wiring hub design for RC receiver and video output port,which makes wiring pretty easily.Also the gimbal offers 2 smart speed modes:FAST speed and LOW speed.Fast speed mode is used for small zooming range,which makes the gimbal control sensitive and quick.LOW speed mode is used for large zoom range,will enable you to target the object more accurately.

FEATURES

1) Weight:879grams(cameras included)

2) 1/2.9 inch 2MP CMOS sensor

3) 10X optical zoom,12X digital zoom,1080P/60 HDMI output for video downlink

4) 1080P/30 H.264 video recorded for on-board TF card

5) Thermal camera:640*480,25HZ,19mm lens,2X/4X digital zooming,radiometric

6) Auto object tracking function

7) Geotagging,gimbal Yaw/Pitch angle info,height,time will be displayed

8) PWM control and serial command control

9) Convenient wiring hub for RC receiver and video output

10) 3-aixs high stabilized gimbal system

11) Adjustable control speed: SLOW speed for large zoom range,accurate.FAST speed for small zoom range,sensitive and quick.

12) One key back to home position

SPECIFICATION

DIMENSION

WIRNG HUB DRAWING

PRODUCT PHOTOS
