Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Voltage:
-
380V for 3d stone cnc
-
Dimension(L*W*H):
-
4150*2250*1700mm cnc machine stone
-
Power (kW):
-
1325
-
Weight (KG):
-
1800
-
Warranty:
-
2 years cnc router stone
-
Model:
-
stone cnc router
-
Working area:
-
2500*1300mm stone cnc
-
Spindle power:
-
4.5/5.5/7.5kw stone cnc machine
-
Inverter:
-
Detla for cnc stone tool
-
XY Transmission:
-
Gear Rack
-
Driving Motor:
-
Servor motor
-
Guide rail:
-
Taiwan
-
Spindle Rotating Speed:
-
8000RPM for cnc stone router machine
-
Control system:
-
Nc studio
-
Software:
-
Artcam
-
Local Service Location:
-
Egypt, Canada, United States, Italy
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Showroom Location:
-
Egypt, Canada, Brazil, Morocco
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE, ISO for 3d cnc stone sculpture machine
Quick Details
-
Working Table Size(mm):
-
1300×2500
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
1 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
1300 mm
-
Travel (Y Axis)(mm):
-
2500 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
igoldencnc
-
Voltage:
-
380V for 3d stone cnc
-
Dimension(L*W*H):
-
4150*2250*1700mm cnc machine stone
-
Power (kW):
-
1325
-
Weight (KG):
-
1800
-
Warranty:
-
2 years cnc router stone
-
Model:
-
stone cnc router
-
Working area:
-
2500*1300mm stone cnc
-
Spindle power:
-
4.5/5.5/7.5kw stone cnc machine
-
Inverter:
-
Detla for cnc stone tool
-
XY Transmission:
-
Gear Rack
-
Driving Motor:
-
Servor motor
-
Guide rail:
-
Taiwan
-
Spindle Rotating Speed:
-
8000RPM for cnc stone router machine
-
Control system:
-
Nc studio
-
Software:
-
Artcam
-
Local Service Location:
-
Egypt, Canada, United States, Italy
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Showroom Location:
-
Egypt, Canada, Brazil, Morocco
-
Marketing Type:
-
Ordinary Product
-
Certification:
-
CE, ISO for 3d cnc stone sculpture machine

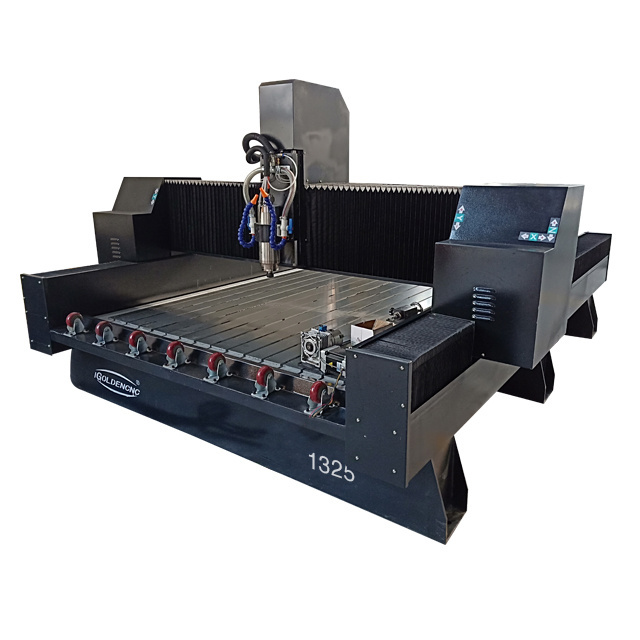

cnc router 1325 3d carving cnc stone processing machine
1. Steel tube lathe bed,low center of gravity,strong bearing capacity,not easy to deformation,stable and reliable operation.
2. Adopt Ncstudio control system ,through computer operation,easy and simple to operate.DSP handle offline control is optional.
3. Adopt Taiwan linear guide rail. the bearing of the lead guide rail is face to face, the long time use precision is high.
4.German double nut automatically disappear gap ball screw.
5.Break point and break knife continue engraving function, can engrave at any place as you like.
6.Strong compatibility: compatible various CAD/CAM software like Type3/artcam/castmate/proe/Corelerow/Wentai.
7.Adopt High power frequency changing water cooled spindle,providing excellent cooling effect when carving flinty materials,effectively protect spindle when continuous working for a long time.
8.Axis Y with two spindles,guarantee the cutting strength and engraving precision.
Parameter
|
NO. |
Model |
IGS-1325 |
|
1 |
Working area |
1300x2500x500mm |
|
2 |
Working table |
Aluminum T-slot table with PVC plate |
|
3 |
spindle |
7.5kw |
|
4 |
Cooling system |
Water-cooling |
|
5 |
Control system |
Nc-studio control system |
|
6 |
inverter |
Fuling inverter |
|
7 |
transmission |
X,Y-rack pinion,Z-ball screw |
|
8 |
Guide rail |
Hiwin guide rail from Taiwan |
|
9 |
Ball screw |
TBI ball screw from Taiwan |
|
10 |
Drive system |
Stepper motors and drivers |
|
11 |
Rotary axis |
Optional |
|
12 |
Lubrication |
Automatic lubrication |
|
13 |
X,Y,Z repositioning Positioning |
±0.02mm |
|
14 |
Spindle speed |
0-24000rpm/min |
|
15 |
Traveling speed |
0-40000mm/min |
|
16 |
Working speed |
0-30000mm/min |
|
17 |
Command code |
G Code, *uoo, *mmg, *plt |
|
18 |
software |
Artcam/Type3,other CAD/CAM |
|
19 |
Diameter of toolholder |
3.175-12.7mm |
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray caving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling sanding, edge down, carving. 3D and 3D application including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.
Jinan iGolden CNC Equipment Co.,Ltd. is a R&D,manufacturing,sales integration company that specializing in cnc router, laser engraving and cutting machine, plasma cutting machine, cutting plotter,etc.The main configuration all adopt top parts which imported from Italy, Japan,Germany,etc.
