Quick Details
-
Customized support:
-
OEM customization
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
17D-GY-6B
-
Mechanical Life:
-
10 Years
-
Color:
-
Gray ( other colors black silver white etc. option)
-
Material:
-
aluminum brushed with 4 side CNC processed
-
Function:
-
6 gang control
-
Buttons:
-
push button
-
Wiring technology:
-
dry contact
-
Specification:
-
24V ( 5V 9 V 12 V also available)
-
Diagram:
-
wire diagram ports version
-
Structure:
-
Whole metal structure bracket
-
Modular design:
-
the middle function part is modular design
-
1-5 panels connected option:
-
can be done 1-5 panels connected with different function modular
Quick Details
-
Max. Current:
-
13A
-
Max. Voltage:
-
5-24V
-
Network:
-
OEM customization
-
Customized support:
-
OEM customization
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
17D-GY-6B
-
Mechanical Life:
-
10 Years
-
Color:
-
Gray ( other colors black silver white etc. option)
-
Material:
-
aluminum brushed with 4 side CNC processed
-
Function:
-
6 gang control
-
Buttons:
-
push button
-
Wiring technology:
-
dry contact
-
Specification:
-
24V ( 5V 9 V 12 V also available)
-
Diagram:
-
wire diagram ports version
-
Structure:
-
Whole metal structure bracket
-
Modular design:
-
the middle function part is modular design
-
1-5 panels connected option:
-
can be done 1-5 panels connected with different function modular

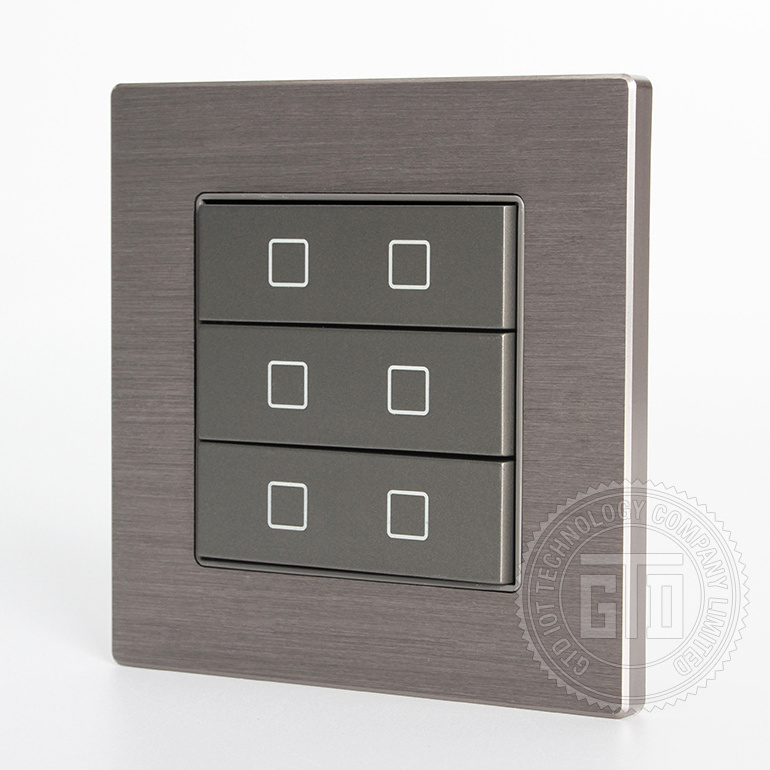

Gray Aluminum Brushed CNC Reset Push Button 24V DC 6 Gang Dry Contact Technology Wall Switch
This product is special made 24V DC 6 gang control switch. This series can be done 5-24V DC dry contact technology, reset push button, 1-6 gang light control, with nice silver brushed aluminum alloy metal frame. All panel words/icons can be customized at request, words and icons are with LED backlight. It is Modular design, can be 1-5 panels connected combination with different function modular,such as 1-6 buttons switches, SOS, TV, Ethernet, Telephone, shaver, doorbell, key card switch, 3 pin or 5 pin socket etc. Text content and colors can also be customized. The beautiful silver color panel is widely matched many fashion hotels/apartments/KTV/Buildings, etc.
3 Buttons Push Reset Button for 6 gang Function Control
This panel is 3 buttons for 6 gang control, each button have 2 gang control, left and right, they are reset button.
Customized Gray Color Aluminum Brushed Frame
The panel frame is nice gray color aluminum brushed material, very beautiful, fashion. (Other color silver, black, white are also available).
Middle Modular and Bracket are also Gray Color
The middle modular and the bracket are bogh also in gray color, then, whole products are gray, very coordinated and very consistent, but in different material, glass and plastic, make the whole product very luxury.
Connecting Bracket Between Frame and Modular, No Any Gaps
The product middle part are modular design, can be with different content function modular. And between the frame and middle function modular there is a special connecting bracket design, without any gaps.
4 Side are Metal Aluminum CNC Processed
The productd front panel 4 side are also metal aluminum, CNC processed, no matter seen from which side will be metal, not like lower level product plastic. The CNC side will well enhance whole product quality level.
Words and Icons Customize and with LED
The words and icons on the button are very special and nice, full of design feeling. We can design the words and icons on the buttons, if you have your own desig, we can also print or laser accordingly for you. Each words/icons are with LED backlight, which can be easily seen in night.
5-24V DC Dry Contact Technology COM Anode or COM Cathode
This button series can be done 5-24V DC dry contact style, COM Anode or Com Cathode as need.
Different Colors/Material Frame Option
This appearance series, the frame can be black, silver, gray, champagne, rose gold, coffee gold, etc.with material of plastic/aluminum brushed/tempered glass/stainless etc.
Rich Set of Components
This product has a rich set of components, telephone, TV, computer socket, 3 or 5 pin socket, dimmer switch, speed-control switch, AC control panel, , USB, sensor switch, SOS, etc. It can be combined in any way you like. We can use different panel materials such as tempered glass, aluminum alloy, brushed aluminum, PC, etc.
77*77*38MM/77*77*45MM /86*86*45MM Install Mounting Box
There is 77*77*38mm or 77*77*45mm or 86*86*45mm size mounting box option, in single panel install or connected panels connected mounted. Two install screws distance are all 60mm.
WELCOME OEM CUSTOMIZATION
OEM Customization
Welcome to ask OEM customization,we have a dedicated design and R&D team, as well as a professional production line, you can trust us, and let us know your needs. GTD will provide you with professional design, R&D and production services until you are satisfied with the final product.
