Quick Details
-
Voltage:
-
220V/380V/415V/440V/customized
-
Dimension(L*W*H):
-
4500*1800*200MM
-
Weight:
-
750 KG
-
Product name:
-
Gold Shaking Table
-
Bed surface type:
-
Coarse sand,Fine sand,Slurry
-
Bed surface dressing area:
-
7.6M2
-
Application:
-
The selected minerals
-
Usage:
-
Mining Separatoion
-
Keywords:
-
Water separator
-
Feature:
-
High Recovery Rate Easy
-
Function:
-
Screening\separation\sorting\sieving
-
Advantage:
-
High Separation Efficiency
-
Other name:
-
Gold Shaker
Quick Details
-
Production Capacity:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
sure origin
-
Voltage:
-
220V/380V/415V/440V/customized
-
Dimension(L*W*H):
-
4500*1800*200MM
-
Weight:
-
750 KG
-
Product name:
-
Gold Shaking Table
-
Bed surface type:
-
Coarse sand,Fine sand,Slurry
-
Bed surface dressing area:
-
7.6M2
-
Application:
-
The selected minerals
-
Usage:
-
Mining Separatoion
-
Keywords:
-
Water separator
-
Feature:
-
High Recovery Rate Easy
-
Function:
-
Screening\separation\sorting\sieving
-
Advantage:
-
High Separation Efficiency
-
Other name:
-
Gold Shaker

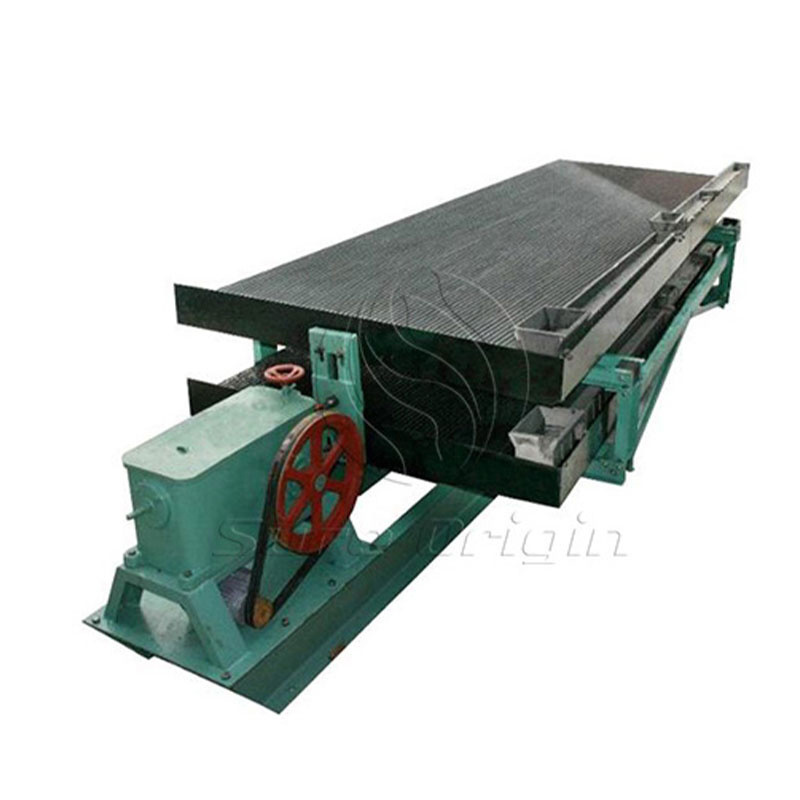

Shaking table gold separation
Product Description
Application :
For the selection of 2-0.02 mm ore sand and ore mud grade tungsten, tin, tantalum, iron, manganese, chromium, titanium, tantalum, lead, gold and other colored, black, rare precious metal minerals, selected 4 to -0.02 mm of iron ore Can be used for rough separation, fine separation, sweeping separation and other different operations, select coarse sand (2-0.5mm), fine sand (0.5-0.074mm), mud (-0.074) and other different particle levels.
Working principle :
The system uses the difference in the proportion of the selected minerals, the differential movement provided by the bedside, the sloped water flow and different types of bed strips, so that the grain group is loosely layered on the bed surface, selectively transported, and a fan-shaped ribbon is formed on the bed surface, thus producing different products for the rich and the poor.
|
Model
|
|
6S-shaking table
|
|
|
|||
|
Bed surface type
|
|
Coarse sand
|
Fine sand
|
Slurry
|
|||
|
Bed surface dressing area (㎡)
|
|
7.6
|
|
|
|||
|
Bed dimension
|
Length (mm)
|
4550
|
|
|
|||
|
|
Driving end width(mm)
|
1830
|
|
|
|||
|
|
Concentrate end width(mm)
|
1530
|
|
|
|||
|
Max. Feeding size(mm)
|
|
2
|
0.5
|
0.074
|
|||
|
Processing capacity （t/h）
|
|
1-1.8
|
0.5-1
|
0.5-1
|
|||
|
Feeding thickness(%)
|
|
20-30
|
18-25
|
15-20
|
|||
|
Stroke (mm)
|
|
16-22
|
11-16
|
8-16
|
|||
|
Frequency(r/min)
|
|
220
|
250
|
280
|
|||
|
Water consumption (t/h)
|
|
0.7-1
|
0.4-0.7
|
0.4-0.7
|
|||
|
Grooved section morphology
|
|
Rectangle
|
Zigzag wave
|
Triangle
|
|||
|
Motor power (kw)
|
|
1.1
|
1.1
|
1.1
|
|||
Packing & Delivery
According to different types of machines, we use protective film or standard import & export wooden cases to pack.
