Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFRO2-G600-3A
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8" FNPT
-
Inlet Water Pressure:
-
30 PSI [0.20 MPa]
-
Operating Pressure:
-
80 PSI [0.55 MPa]
-
Working Flow Rate:
-
1.1 GPM [4.0 LPM]
-
Working Current:
-
3.0 A
-
Max Flow Rate:
-
1.6 GPM [6.0 LPM]
-
Max Current:
-
5.6 A
-
Max Pressure:
-
150 PSI [1.03 MPa]
-
OEM & ODM Service:
-
Yes
-
Certification:
-
RoHS,ce
Quick Details
-
Application:
-
Drinking water treatment, Family Homes, Washing and Cleaning
-
Pressure:
-
High Pressure
-
Voltage:
-
24 V DC
-
Warranty:
-
1 year
-
Brand Name:
-
SEAFLO
-
Model Number:
-
SFRO2-G600-3A
-
Place of Origin:
-
Fujian, China
-
Outlet Size:
-
3/8" FNPT
-
Inlet Water Pressure:
-
30 PSI [0.20 MPa]
-
Operating Pressure:
-
80 PSI [0.55 MPa]
-
Working Flow Rate:
-
1.1 GPM [4.0 LPM]
-
Working Current:
-
3.0 A
-
Max Flow Rate:
-
1.6 GPM [6.0 LPM]
-
Max Current:
-
5.6 A
-
Max Pressure:
-
150 PSI [1.03 MPa]
-
OEM & ODM Service:
-
Yes
-
Certification:
-
RoHS,ce
| Features & Benefits |
|
1.50 - 800 GPD full range of supply
3.Inlet stable pressure protection 5.Meeting CE, RoHS and NSF certification 7.Continuous rated operation for more than 2000h |
2.Adjustable pressure stabilizing system 4.Low noise, low vibration DC motor 6.Water hammer performance more than 100,000 times 8.Perfect performance when pressure above 1.2MPa |

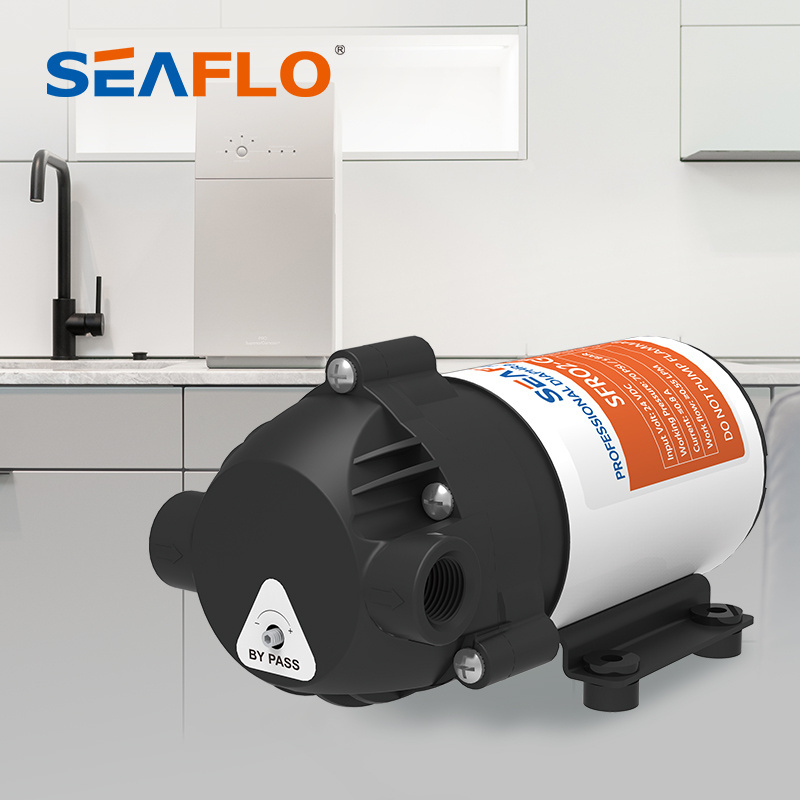

| Product Name | SEAFLO 12V 24V DC 600 GPD 150 PSI Mini RO High Pressure Booster Water Pump |
| Pump Type | 3 Chambers Positive Displacement Diaphragm Pump |
| Voltage | 24V DC |
| Inlet Water Pressure | 30 PSI [0.20 Mpa] |
| Operating Pressure | 80 PSI [0.55 Mpa] |
| Working Flow Rate | 1.1 GPM [4.0LPM] |
| Working Current |
3.0 A
|
| Max Flow Rate | 1.6 GPM [6.0 LPM] |
| Max Current | 5.6 A |
| Max Pressure | 150 PSI [1.03 Mpa] |
| Inlet & Outlet Port | 3/8" NPT, and contact us for more ports |
| Self Priming | 1.6' [0.5 m] suction |
| Max Fluid Temp | 140 °F [60 °C] |
| Lead | 9.4" [24 cm] 16 AWG lead |
Compliant with ROSH & CE certification. Long time water pressure above 1.2MPa, water hammer performance more than 100 thousand times, continuous rated running above 2000h. All parts that are in contact with water shall be made of food grade materials and conform to the NSF human body drinking water safety standards. For reverse osmosis pure water machine, spray device, water treatment equipment, foundry measurement and health, environmental protection, printing and other industries in the use of.
| Product Show |
| Dimensions |
| Performance |
| Product Details |
STANDARD PUMP CONFIGURATIONS
| Model | Voltage |
Connection Port |
Inlet Pressure |
Operating Pressure | Working Flow |
Working Current |
Max Pressure |
Max Current |
| SFRO2-G75-3A | 24 V | 3/8" NPT |
30 PSI [0.20 MPa] |
80 PSI [0.55 MPa] |
0.22 GPM [0.85 LPM] | 1.0 A |
110 PSI [0.76 MPa] |
1.4 A |
| SFRO2-G100-3A | 24 V | 3/8" NPT |
30 PSI [0.20 MPa] |
80 PSI [0.55 MPa] |
0.29 GPM [1.1 LPM] | 1.2 A |
120 PSI [0.83 MPa] |
1.8 A |
| SFRO2-G200-3A | 24 V | 3/8" NPT |
30 PSI [0.20 MPa] |
80 PSI [0.55 MPa] |
0.42 GPM [1.6 LPM] | 1.6 A |
130 PSI [0.89 MPa] |
2.2 A |
| SFRO2-G400-3A | 24 V | 3/8" NPT |
30 PSI [0.20 MPa] |
80 PSI [0.55 MPa] |
0.66 GPM [2.5 LPM] | 2.2 A |
150 PSI [1.03 MPa] |
3.0 A |
| SFRO2-G600-3A | 24 V | 3/8" NPT |
30 PSI [0.20 MPa] |
80 PSI [0.55 MPa] |
1.1 GPM [4.0 LPM] | 3.0 A |
150 PSI
[1.03 MPa] |
5.6 A |
| SFRO2-G800-3A | 24 V | 3/8" NPT |
30 PSI [ 0.20 MPa] |
80 PSI [0.55 MPa] |
1.4 GPM [5.3 LPM] | 4.0 A |
150 PSI
[1.03 MPa] |
7.3 A |
OEM/ODM service: OEM/ODM service: Pls contact us for OEM & ODM service.
Package Infomation
| Unit Pump Weight | 5.51 lbs [2.5 kg] | |
| Selling Unit Size (L x W x H) |
8.66" x 4.53" x 4.92" [22 x 11.5 x 12.5 cm] |
|
| Selling Unit Weight | 6.06 lbs [2.75 kg] | |
| Master Carton Qty | 8 pcs / carton | |
| Master Carton Size (L x W x H) |
18.50" x 9.06" x 11.22" [47.0 x 23.0 x 28.5 cm] |
|
| Master Carton Weight | 50.71 lbs [23 kg] |
